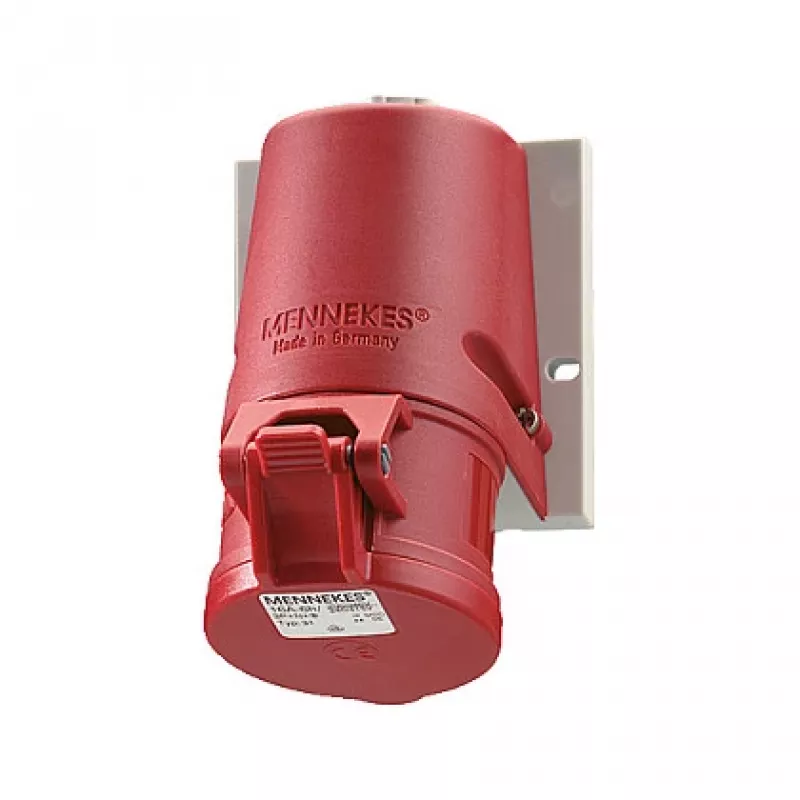

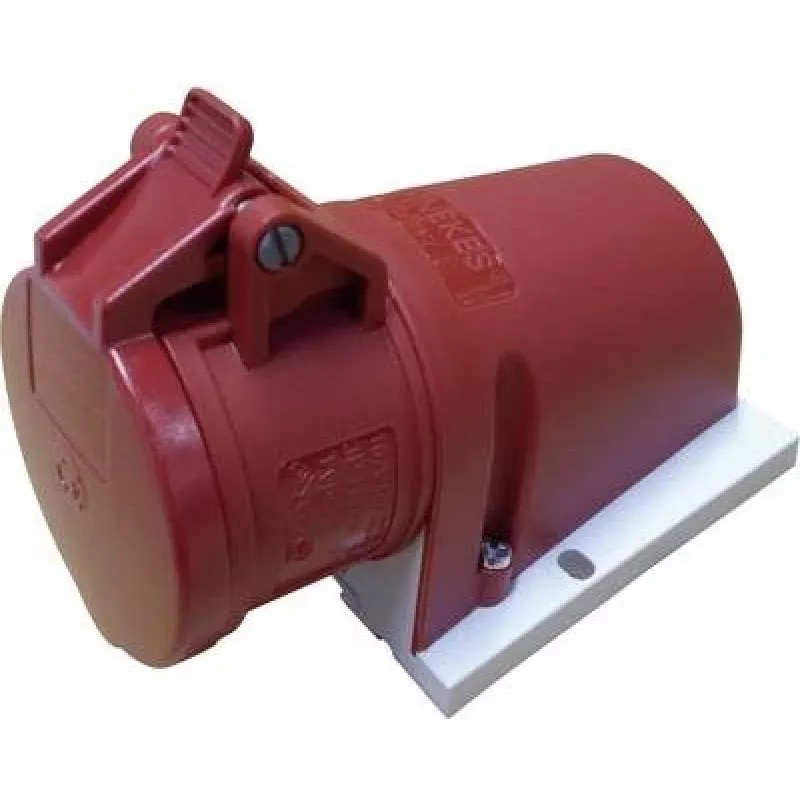

MENNEKES CEE wandcontactdoos 16 A 5-polig 6h 400 V IP44 TwinCONTACT

Industrial and outdoor power connections demand a socket that can handle three-phase loads while resisting moisture and mechanical stress. The MENNEKES CEE wall-mounted socket provides a reliable 16 A, 5-pole connection point for 400 V equipment, with a 6h clock position to prevent mismating with other voltages.

Who is it for

Electricians, facility managers, and equipment operators who need a durable, splash-proof power outlet for workshops, construction sites, marinas, or agricultural buildings. It suits any application where three-phase power must be safely accessible from a wall or panel.

Main features

• 16 A rated current and 5 poles (3P+N+PE) for three-phase 380–415 V AC systems.
• 6h earth pin position ensures compatibility only with matching 400 V plugs.
• IP44 splash-proof housing protects against water spray from any direction.
• TwinCONTACT technology provides two independent contact points for secure, low-resistance connections.
• Screw terminals allow fast, tool-based wiring with solid or stranded conductors.
• Wall-mount design with cable entry options from top, bottom, or rear for flexible installation.
• Robust polyamide (PA6) housing in grey/red withstands impact and UV exposure.

Specifications

• Current rating: 16 A
• Number of poles: 5 (3P+N+PE)
• Nominal voltage: 380–415 V AC
• Frequency: 50/60 Hz
• Clock position: 6h
• IP protection class: IP44
• Connection technology: Screw terminals
• Mounting type: Wall-mounted, surface-mounted
• Housing material: Polyamide (PA6)
• Colour: Grey / Red
• Cable entry: Gland / knock-out (top/bottom/rear)
• Operating temperature: -25°C to +40°C
• Contact material: Brass, nickel-plated
• Flammability rating: UL94 V2

Tips

When wiring, ensure the cable gland matches the cable diameter to maintain the IP44 rating. Use a torque screwdriver to tighten terminals to the manufacturer's specified torque. For outdoor installations, mount the socket with the cable entry facing downward to prevent water ingress.
