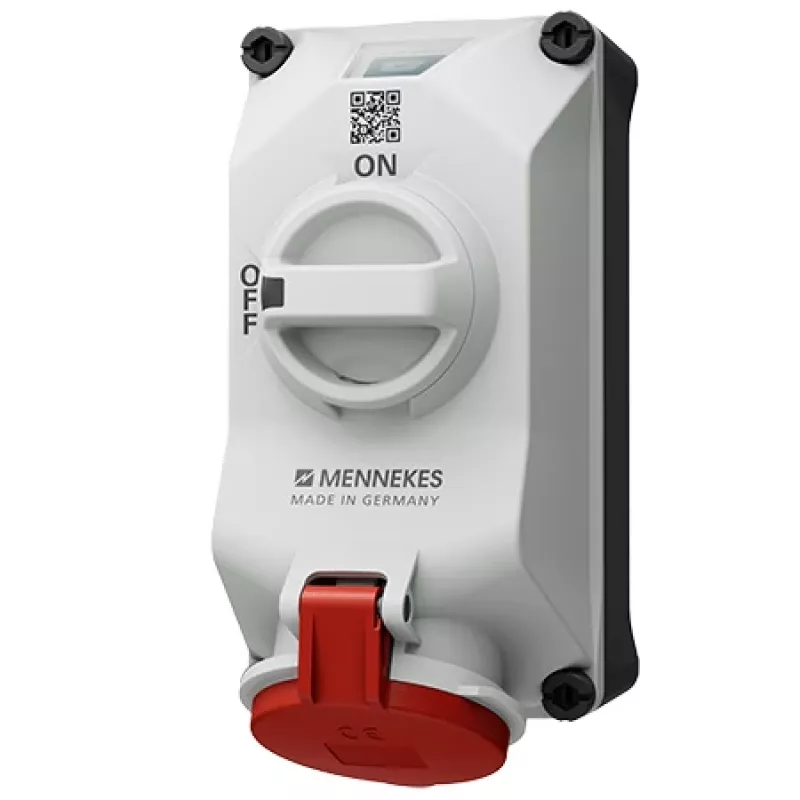

MENNEKES DUOi 32A 5-polige 6h 400V IP44 wandcontactdoos 5613506G

Rated at 32 A and 400 V, this MENNEKES DUOi wall-mounted socket delivers robust three-phase power with a 5-pole (3P+N+PE) configuration and a 6h earth contact position, making it a dependable choice for industrial and commercial installations.

Overview

The MENNEKES 5613506G is a CEE wall-mounted socket from the DUOi series. It features screw terminals for secure wiring, accepts cables from 2.5 to 10 mm², and provides two cable entries: one M25 on top and one M25 at the bottom (closed with a blind plug). The housing is made of grey polyamide (PA6), offering durability and resistance to mechanical impact.

What stands out

• IP44 splash-proof protection for reliable operation in damp environments
• Wide operating temperature range from -25°C to +40°C
• Compact flange dimensions of 100 x 100 mm for easy mounting
• Complies with IEC 60309-1 and IEC 60309-2 standards

Technical details

• Rated current: 32 A
• Rated voltage: 400 V
• Number of poles: 5 (3P+N+PE)
• Earth contact position: 6h
• Frequency: 50/60 Hz
• Housing material: Polyamide (PA6)
• Connection technology: Screw terminals
• Cable entry: 1x M25 top, 1x M25 bottom (blind plug)
• Terminal cross-section: 2.5 - 10 mm²
• Colour: Grey (RAL 7035)

Our verdict

A solid, standards-compliant wall socket for demanding three-phase applications, with a proven DUOi design and IP44 protection.
