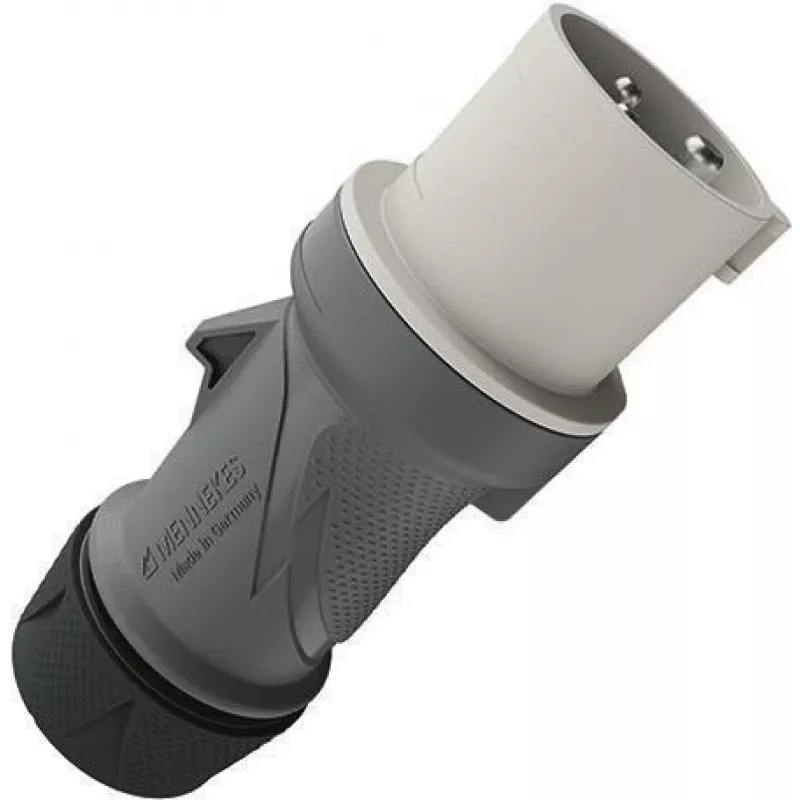

MENNEKES PowerTOP Xtra R CEE-stekker 16A 3-polig 12h IP54 schroefloze klem 13591

The MENNEKES PowerTOP Xtra R 13591 redefines industrial connectivity with its screwless termination system, cutting installation time by up to 50% compared to conventional screw-type plugs. Engineered for demanding environments, this straight CEE plug combines a rugged polyamide housing with IP54 protection, ensuring reliable performance in dusty or splash-prone areas. Its 16 A rating and 3-pole (2P+E) configuration with 12h earth contact position make it the go-to choice for professional electrical installations across Europe and beyond.

Highlights

• Screwless PowerTOP Xtra terminals for fast, vibration-proof connections
• IP54 ingress protection against dust and water splashes from any direction
• Robust polyamide (PA6) housing with UL94 V-2 flammability rating
• Wide cable acceptance: 6–13 mm diameter with integrated strain relief
• Nickel-plated brass contacts for superior conductivity and corrosion resistance
• Complies with IEC 60309-1 and IEC 60309-2 international standards

In daily use

On construction sites, in workshops, or at outdoor events, the 13591 plug delivers dependable power without compromise. The screwless terminals grip conductors firmly, resisting loosening from vibration or thermal cycling, while the ergonomic gland nut allows tool-free cable assembly. Its grey and black colour scheme blends seamlessly into industrial settings, and the straight design ensures easy mating with compatible CEE sockets. Rated for operation from -25 °C to +40 °C, it withstands harsh climates without cracking or deforming.

Full specifications

• Brand: MENNEKES
• Model: 13591
• MPN: 13591
• EAN: 4015394305439
• Product type: CEE plug
• Series: PowerTOP Xtra R
• Current rating: 16 A
• Number of poles: 3-pole (2P+E)
• Earth contact position: 12h
• Voltage range: 20–25 V or >50 V, 300–500 Hz
• Ingress protection: IP54
• Connection technology: Screwless terminals
• Housing material: Polyamide (PA6)
• Cable entry: Gland with strain relief
• Cable diameter range: 6–13 mm
• Operating temperature: -25 °C to +40 °C
• Standards: IEC 60309-1, IEC 60309-2
• Design: Straight plug
• Contact material: Brass, nickel-plated
• Flammability rating: UL94 V-2
• Colour: Grey/Black

Final note

The MENNEKES 13591 is not just a plug—it's a long-term investment in safety and efficiency. With its tool-free wiring, premium materials, and global certifications, it outperforms generic alternatives and ensures your power connections stay secure for years.
