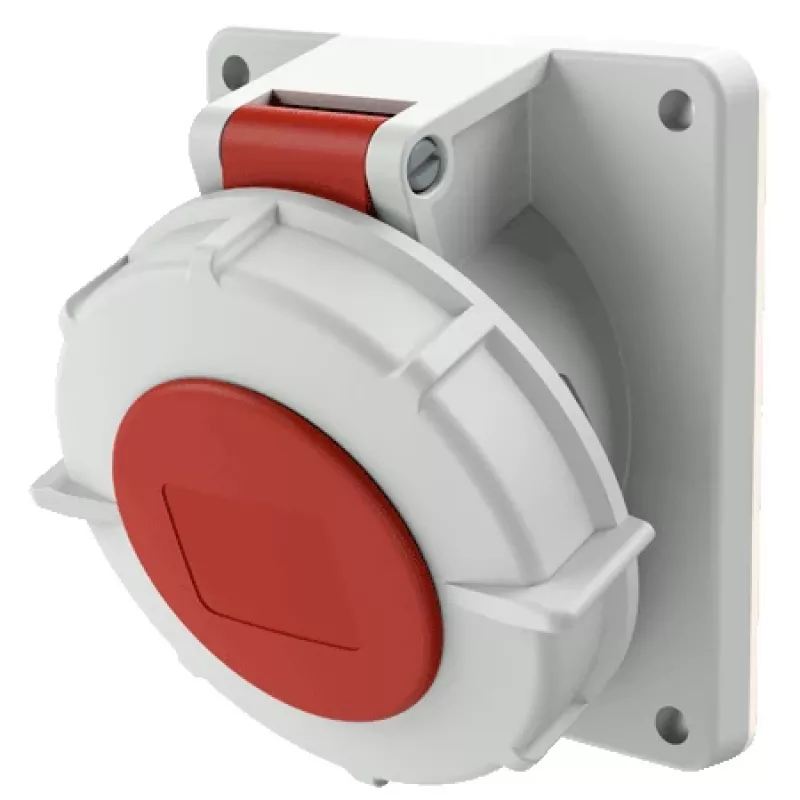

MENNEKES TwinCONTACT opbouwstopcontact 16A 5-polig 6H 400V IP67 (3485)

Industrial electricians and maintenance teams rely on the MENNEKES TwinCONTACT surface-mounted socket for secure, weatherproof power connections in demanding environments. This 16 A, 5-pole (3P+N+PE) socket operates at 400 V with a 6h earth contact position, making it ideal for three-phase equipment in workshops, construction sites, and outdoor installations.

Key specifications

• Current rating: 16 A
• Voltage: 400 V (380-415 V)
• Poles: 5-pole (3P+N+PE)
• Earth contact position: 6h
• Ingress protection: IP67
• Connection technology: TwinCONTACT
• Terminal type: Screwless terminals
• Mounting type: Surface-mounted
• Housing material: Polyamide (PA6)
• Frequency: 50/60 Hz
• Operating temperature: -25°C to +40°C
• Standards: IEC 60309-1, IEC 60309-2

Why choose it

The TwinCONTACT terminal system provides reliable, maintenance-free connections without the need for screw tightening, reducing installation time. The IP67-rated housing protects against dust and temporary immersion, ensuring long-term performance in harsh industrial settings.

Ideal use cases

• Power distribution for portable three-phase equipment
• Outdoor construction and event power supply
• Industrial machinery connections in wet or dusty areas

Good to know

The socket complies with international standards IEC 60309-1 and IEC 60309-2, guaranteeing compatibility with standard industrial plugs. Its robust polyamide housing withstands mechanical impact and chemical exposure.
