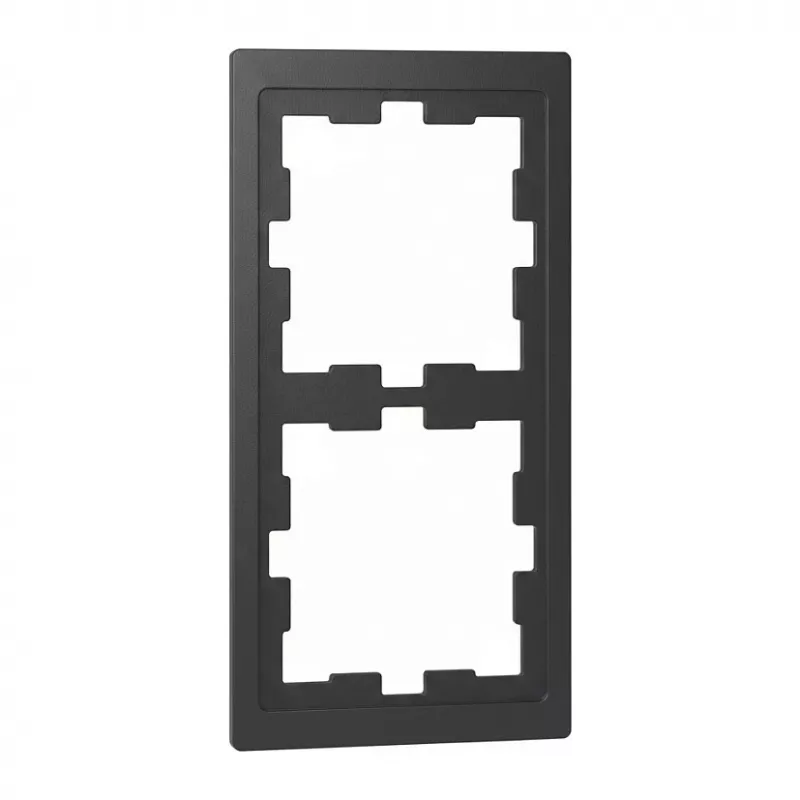

Merten D-Life 2-voudig raam Antraciet MEG4020-6534

The Merten D-Life 2-gang frame in anthracite is a high-quality design frame for flush-mounted installations. It is part of the Merten D-Life series, known for its modern and elegant appearance. The frame is made of thermoplastic (PC) with a matt finish, providing a durable and UV-resistant surface. It is halogen-free and suitable for both horizontal and vertical mounting. The frame is compatible with Merten D-Life inserts and offers protection class IP20 with impact resistance IK05.

Advantages

This frame combines aesthetic design with robust functionality. The anthracite colour adds a sophisticated touch to any room. The thermoplastic material ensures long-lasting performance and easy cleaning. The frame is designed for quick and secure installation.

Suitable for

• Residential and commercial buildings
• Installation of Merten D-Life switches and sockets
• Modern interior design projects

Key specifications

• Product Type: Design Frame
• Number of Gangs: 2-gang
• Colour: Anthracite
• Design Line: Merten D-Life
• Material: Thermoplastic (PC)
• Surface Finish: Matt
• Mounting Type: Flush-mounted
• Compatibility: Merten D-Life inserts
• Halogen-free: Yes
• UV-resistant: Yes
• Protection Class: IP20
• Impact Resistance: IK05
• Orientation: Horizontal and Vertical
• Overall Width: 156 mm
• Overall Height: 85 mm
• Overall Depth: 12 mm
• Operating Temperature: -5 to 40 °C
• Storage Temperature: -5 to 50 °C
• Environmental Compliance: RoHS, REACH

Recommendations

For a complete installation, pair this frame with Merten D-Life system inserts and matching accessories. Ensure proper mounting by following the manufacturer's instructions.
