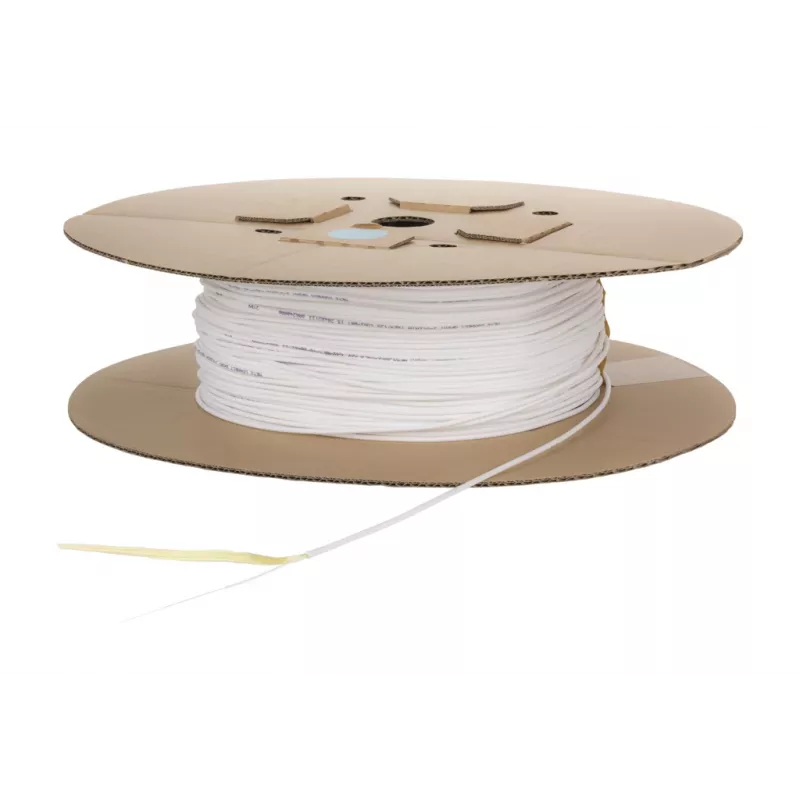

METZ CONNECT OpDAT simplex patchkabel, OS2 G.657.A2, 100 m, LSZH 150P700100M

Ideal for structured indoor cabling in offices and data centers, this 100 m simplex patch cable from METZ CONNECT provides a reliable single-mode fiber link with bend-insensitive G.657.A2 fiber. The halogen-free jacket ensures low smoke and toxicity in case of fire, making it suitable for enclosed spaces.

Key specifications

• Fiber type: Single-mode OS2, ITU-T G.657.A2 bend-insensitive
• Length: 100 m
• Construction: Simplex (1 fiber)
• Jacket material: Halogen-free (LSZH/LSOH)
• Cable designation: I-V(ZN)H
• Core/cladding diameter: 9/125 µm
• Attenuation: ≤ 0.35 dB/km @ 1310 nm, ≤ 0.25 dB/km @ 1550 nm
• Minimum bend radius: 7.5 mm
• Operating temperature: -10 °C to +60 °C

Why choose it

The G.657.A2 fiber allows tighter bends without significant signal loss, simplifying installation in congested pathways. The halogen-free jacket meets fire safety requirements for indoor use, and the 100 m length supports long runs within a building.

Ideal use cases

• Backbone connections between network cabinets
• Fiber-to-the-desk deployments
• Data center interconnects

Good to know

The cable is supplied without connectors, allowing termination as needed. It is part of the OpDAT series from METZ CONNECT, designed for professional fiber optic installations.
