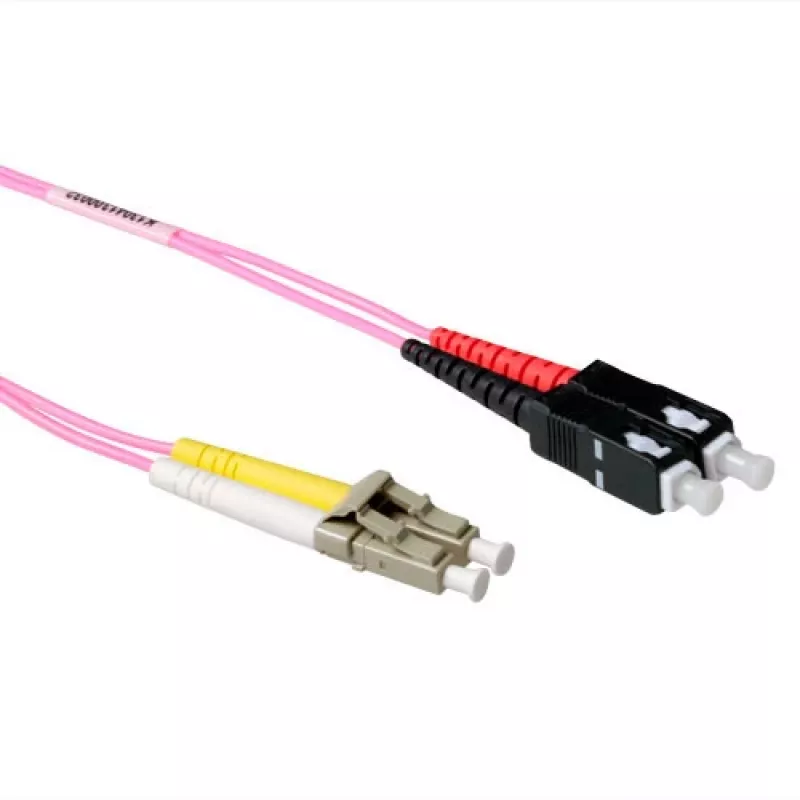

ACT 30 meter LSZH multimode 50/125 OM4 glasvezel-patchkabel duplex met LC- en SC-stekkers

The ACT 30 meter LSZH Multimode 50/125 OM4 fiber patch cable provides multimode optical connectivity over a 30 m length with LC and SC terminations. Designed for high-speed data transmission in structured cabling, the cable uses a 50 µm core diameter graded-index multimode fiber (OM4) and supports full duplex links. The LSZH jacket material reduces smoke and hazardous halogen emissions, making the assembly appropriate for installation in confined or public spaces where fire safety and low-toxicity release are important.

Advantages

This fiber patch cable combines multimode OM4 performance with a 30 m reach and common LC-to-SC connector types, offering low insertion loss and high bandwidth for short- to medium-range links. The LSZH outer jacket improves safety in dense installations by minimizing smoke and corrosive gases in case of fire. The cable’s construction supports reliable duplex transmission and is suitable for rack-to-rack, switch-to-switch, and equipment interconnects in modern network infrastructures.

Suitable for

• Data center interconnects and patching
• Enterprise LAN backbone and horizontal cabling
• Server-to-switch and switch-to-switch connections
• Telecommunications rooms and equipment cabinets

Key specifications

• Fiber type: Multimode OM4 (50/125 µm core/cladding)
• Length: 30 meters
• Connector types: LC connector on one end, SC connector on the other end
• Duplex support: Full duplex (two fibers)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Typical applications: 10 Gbps and higher short-range multimode links

How to use

Route the fiber patch cable between the intended ports, aligning the LC connector with the LC receptacle and the SC connector with the SC receptacle. Avoid tight bends and maintain the manufacturer’s minimum bend radius during installation. Secure the cable in patch panels or trays to prevent strain on the connectors and to maintain consistent optical performance. Clean connector end-faces before mating using appropriate fiber cleaning tools to reduce insertion loss and back reflection.

Recommendations

Store and install the cable in dry, dust-free conditions and avoid exposure to excessive tensile load. Use dust caps on unused connectors. When planning runs in public or confined areas, prefer LSZH jacketed cables to reduce smoke and hazardous emissions in the event of fire. For optimal performance, verify link loss with an optical power meter or certification tester after installation.
