METZ CONNECT ST simplex glasvezeladapter multimode/singlemode wit

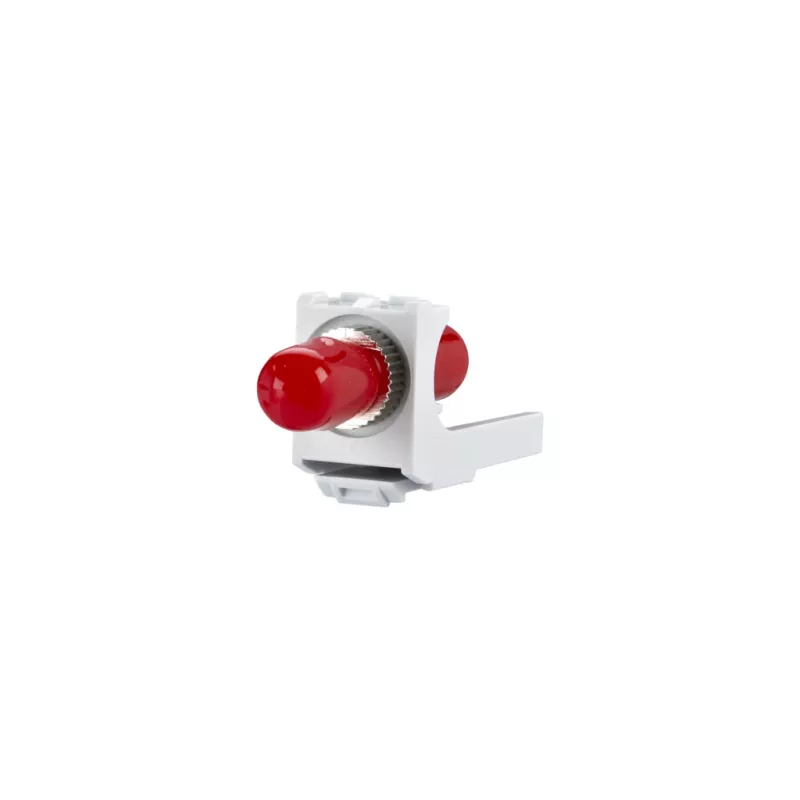

The METZ CONNECT 15091001-I is a high-quality ST simplex fiber optic adapter designed for reliable connections in both multimode and singlemode applications. Featuring a durable zirconia ceramic sleeve and a white PBT plastic housing, this adapter ensures low insertion loss and high return loss, making it ideal for use in patch panels, wall outlets, and distribution boxes.

Advantages

This adapter offers exceptional performance with typical insertion loss below 0.2 dB and return loss greater than 50 dB for singlemode PC. The zirconia ceramic sleeve provides excellent alignment and durability for over 500 mating cycles. Its compact simplex design saves space, and the flange mount allows easy installation. Compliant with IEC 61754-2 and TIA/EIA-604-2 standards, it ensures compatibility and reliability.

Suitable for

• Fiber optic patch panels
• Wall outlets
• Distribution boxes
• Telecommunications and data center environments

Key specifications

• Product Type: Fiber Optic Adapter
• Connector Type: ST to ST
• Adapter Type: Simplex
• Fiber Mode: Multimode / Singlemode
• Sleeve Material: Zirconia Ceramic
• Housing Material: Plastic (PBT)
• Color: White
• Insertion Loss: < 0.2 dB typical
• Return Loss (Singlemode PC): > 50 dB
• Mating Cycles: > 500
• Operating Temperature: -20 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Mounting Type: Flange Mount
• Flammability Rating: UL94 V-0
• Standards: IEC 61754-2, TIA/EIA-604-2
• Quantity per Pack: 1 piece

Recommendations

For optimal performance, use with ST connectors and ensure clean fiber ends before mating. This adapter is suitable for both multimode and singlemode applications, providing flexibility in network design.
