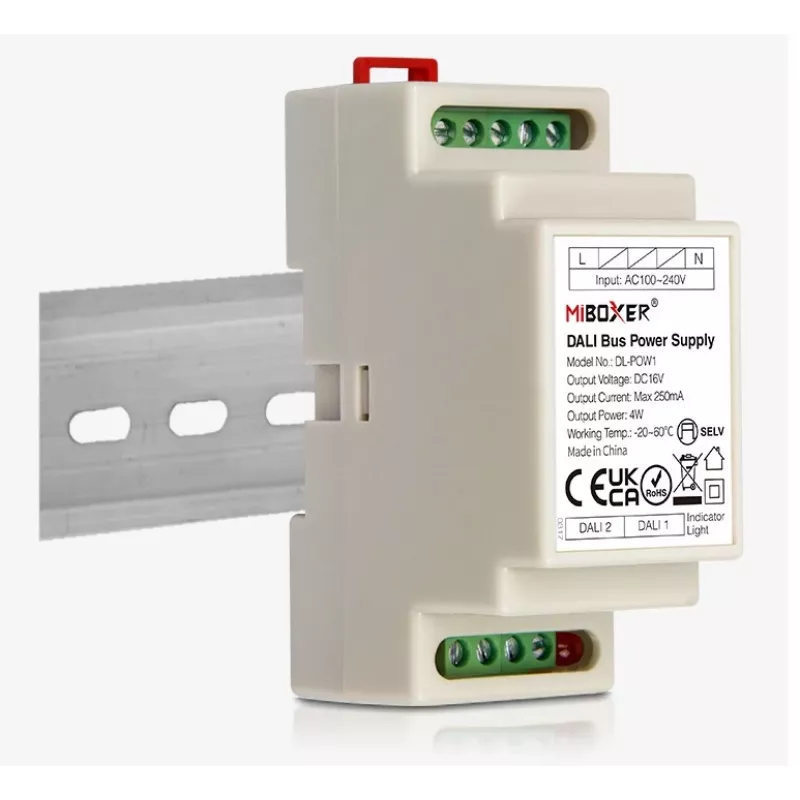

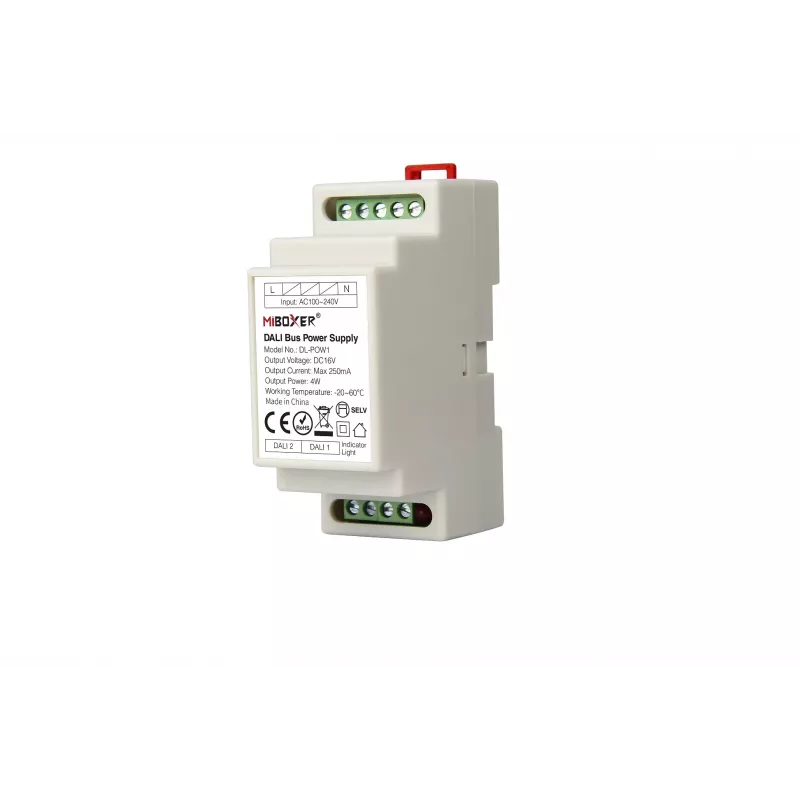

Miboxer Synergy 21 LED DALI bus-voeding DIN-rail (DL-POW1)

DALI lighting control systems require a dedicated bus power supply to operate correctly. Without it, DALI devices cannot communicate, and the entire lighting network fails. The Miboxer Synergy 21 LED DALI Bus Power Supply solves this by delivering a stable 16V DC output to the DALI bus, ensuring reliable communication for up to 64 DALI devices.

Who is it for

This power supply is ideal for electricians, lighting designers, and facility managers installing or maintaining DALI lighting systems in commercial and residential buildings. It is suitable for DIN rail mounting, making it easy to integrate into electrical distribution boards.

Main features

• Provides 16V DC, max 250mA output for DALI bus power
• Supports up to 64 DALI devices
• DALI-2 compatible (IEC 62386)
• Mounts on standard 35mm DIN rail, 2 modules wide
• Overload and short circuit protection
• Wide input voltage range: 100-240V AC
• Low standby power consumption: less than 0.5W

Specifications

• Input voltage: AC 100-240V, 50/60Hz
• Output voltage: DC 16V
• Output current: max 250mA
• Output power: max 4W
• DALI standard: IEC 62386 (DALI-2 compatible)
• Max DALI devices: 64
• Mounting: 35mm DIN rail, 2 modules
• Protection: overload, short circuit
• Operating temperature: -20°C to 60°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 20-90% RH (non-condensing)
• Housing material: PC (polycarbonate)
• Certifications: CE, RoHS
• Standby power consumption: <0.5W

Tips

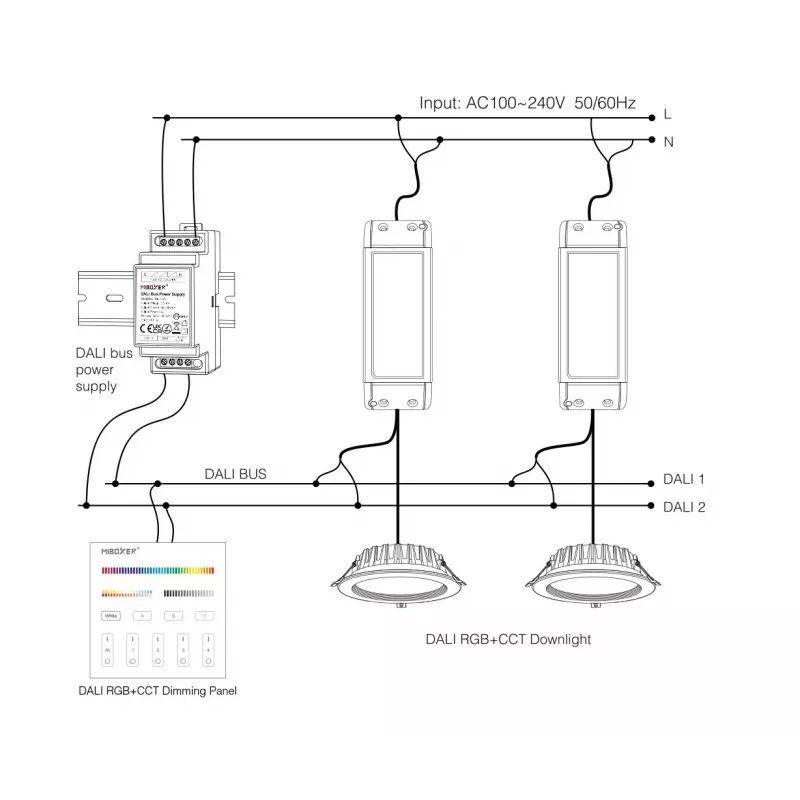

Ensure the DALI bus wiring is correctly sized and terminated to avoid voltage drops. This power supply should be installed in a dry, ventilated enclosure to maintain optimal operating conditions.
