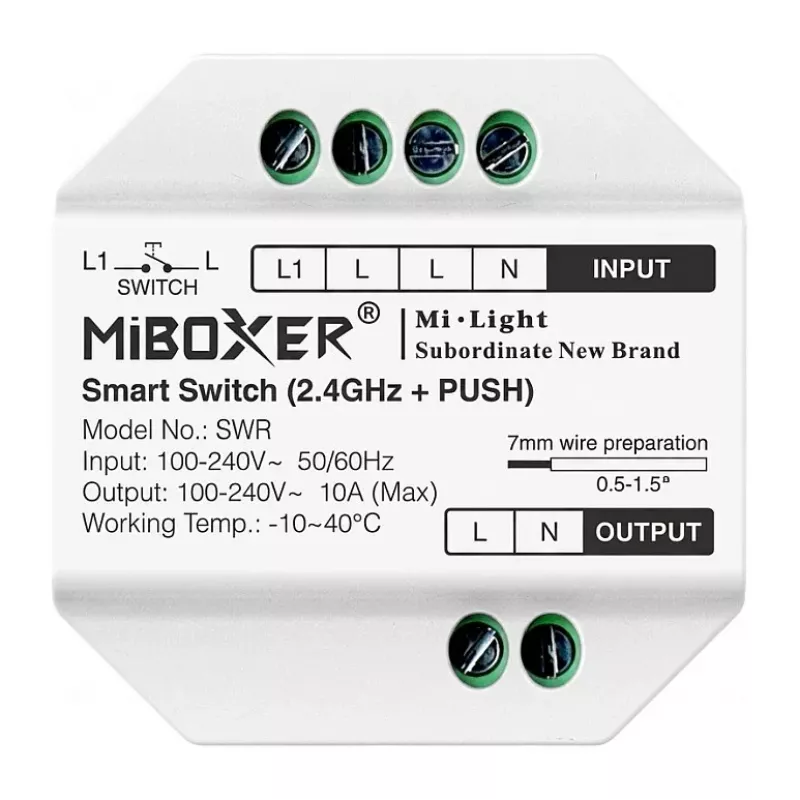

Miboxer Synergy 21 LED WiFi Smart Switch WiFi + 2.4G + Push Dimming (SWR)

The Miboxer Synergy 21 LED WiFi Smart Switch (model SWR) is a versatile in-wall/in-ceiling module that combines WiFi, 2.4G RF, and push dimming control. It allows you to dim LED lights smoothly from 0-100% using the MiBoxer APP, compatible 2.4G RF remotes, or physical push switches. With support for Amazon Alexa and Google Assistant, you can integrate it into your smart home system for voice control. The switch works with leading edge and trailing edge Triac dimming, making it suitable for a wide range of dimmable LED bulbs and fixtures.

Advantages

This smart switch offers three control methods: WiFi via the MiBoxer APP, 2.4G RF remote control, and traditional push dimming. It supports voice assistants for hands-free operation. The compact design fits into standard wall boxes or ceiling cavities, and the PC housing ensures durability. With a maximum output of 300W at 220V (150W at 110V), it handles most residential lighting loads.

Suitable for

• Dimmable LED lighting in living rooms, bedrooms, and hallways
• Smart home automation projects requiring WiFi and RF control
• Retrofitting existing push-switch circuits with smart dimming
• Integration with Amazon Alexa or Google Assistant ecosystems

Key specifications

• Input/Output Voltage: AC 100-240V, 50/60Hz
• Max Output Current: 1.5A
• Max Output Power: 300W (220V), 150W (110V)
• Control: WiFi (2.4GHz 802.11 b/g/n), 2.4G RF (MiLight/MiBoxer protocol), Push Dimming
• Dimming: Triac (Leading/Trailing Edge), 0-100%
• Standby Power: <0.5W
• Operating Temperature: -10°C to 40°C
• Protection Rating: IP20
• Housing Material: PC
• Installation: In-wall / In-ceiling module

Recommendations

For best performance, use with dimmable LED bulbs compatible with Triac dimming. Ensure proper ventilation and do not exceed the rated load. The switch requires a neutral wire for installation. Compatible with MiBoxer APP (iOS/Android) and MiLight/MiBoxer 2.4G RF remotes.
