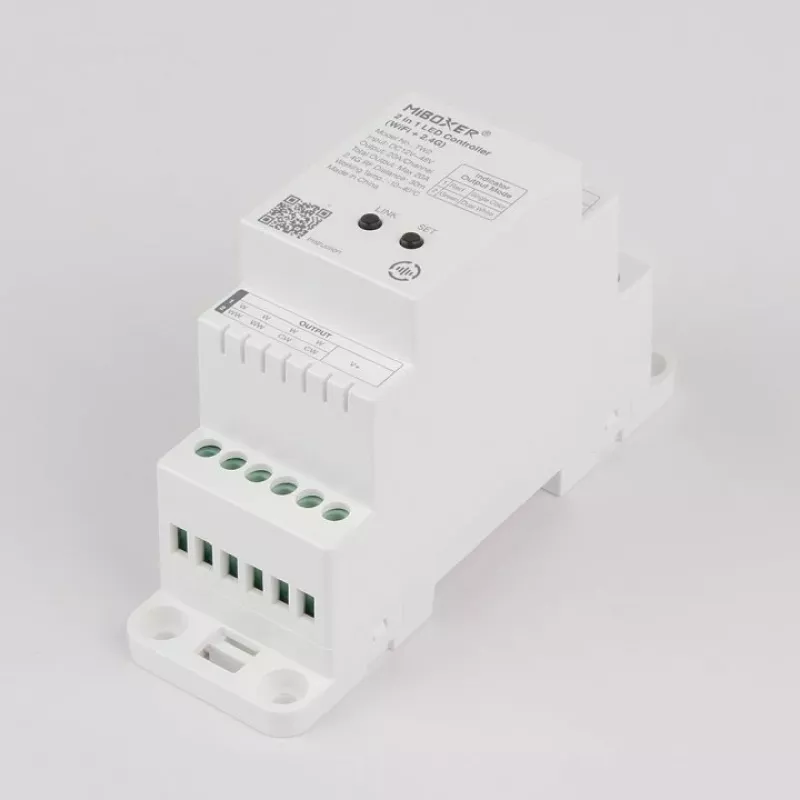

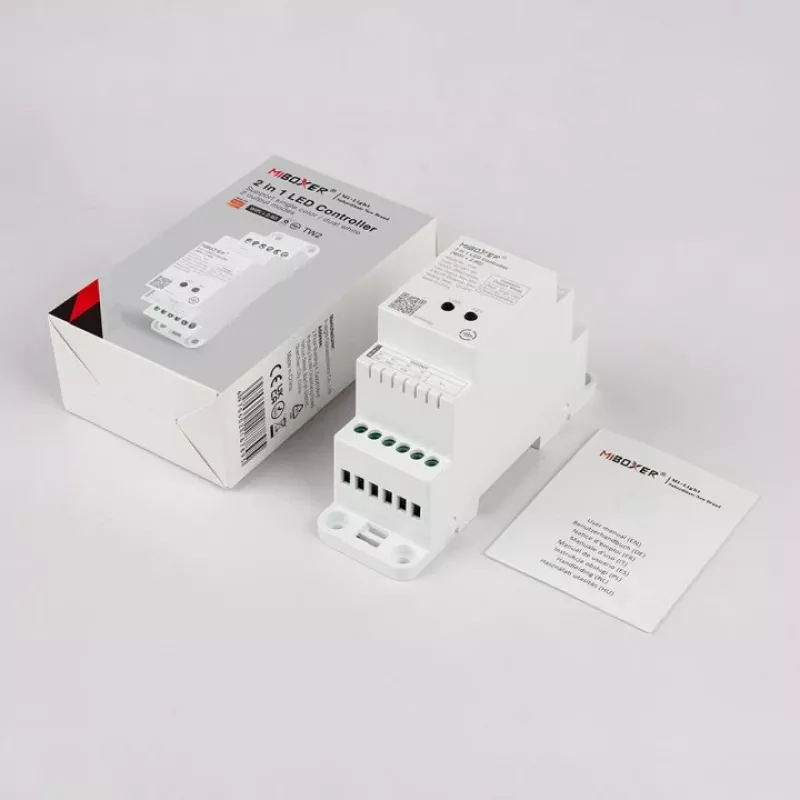

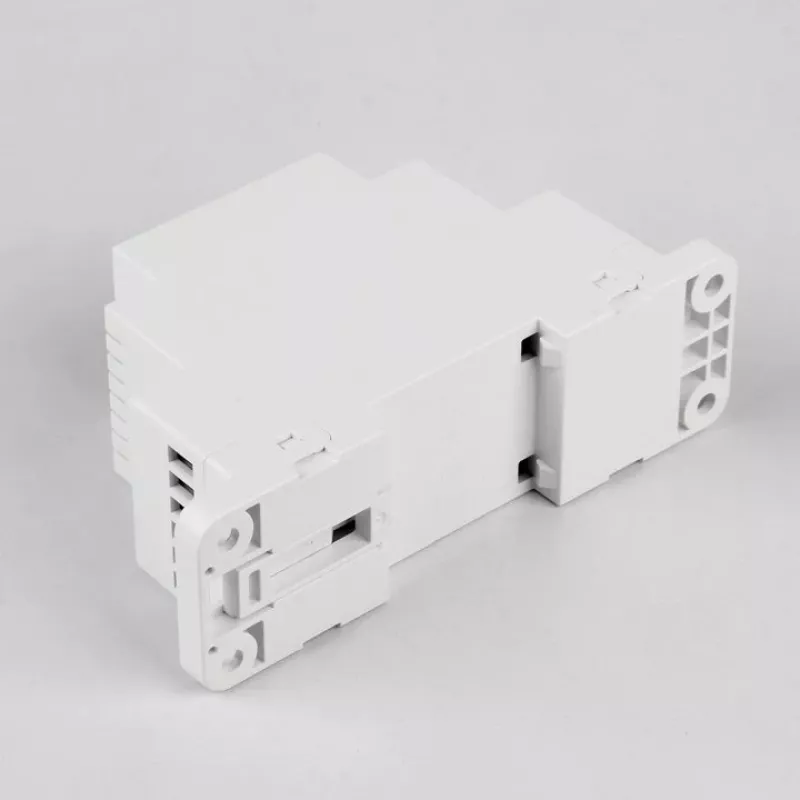

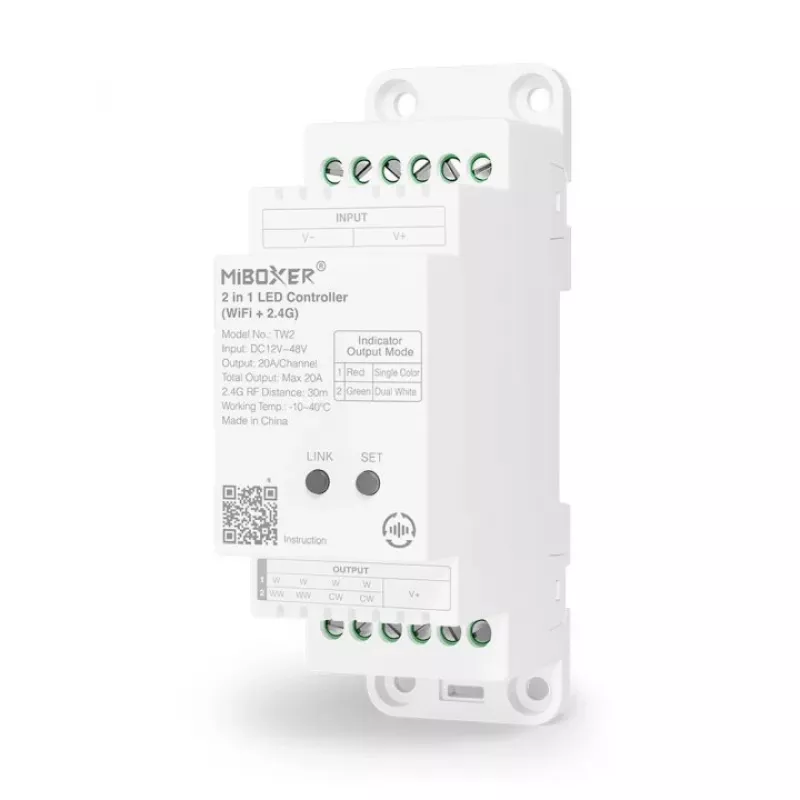

MiBoxer TW2 2-in-1 rail-LED-controller voor eenkleurige en CCT-LED-strips, DC12/24V, WiFi + 2,4GHz RF

Installers and smart-home integrators use the MiBoxer TW2 to bring wireless control to single-colour or CCT (dual white) LED strips in track lighting, cove lighting, and under-cabinet setups. It runs on DC 12V or 24V and is controlled via the MiBoxer/Mi-Light app over 2.4GHz WiFi or the included RF remote protocol, with support for Alexa and Google Assistant voice commands.

Key specifications

• Product type: LED controller
• Supported LED types: single colour (DIM) and CCT (dual white) LED strips
• Input voltage: DC 12V / 24V
• Output current: 6A per channel, 10A total
• Output power: 120W at 12V, 240W at 24V
• Control interfaces: WiFi (2.4GHz), RF (2.4GHz)
• Wireless standard: IEEE 802.11b/g/n
• RF control distance: up to 30 meters
• Dimming range: 0-100%
• Number of output channels: 2 (warm white / cold white)
• Memory function: retains last setting
• Connection type: screw terminals
• Housing material: ABS plastic
• Operating temperature: -20°C to 60°C

Why choose it

One compact controller handles both single-colour dimming and tunable white CCT strips, so you can standardise on a single part for many projects. The 2.4GHz RF link works even when WiFi is down, and the app gives you schedules, scenes, and voice control through Alexa or Google Assistant.

Ideal use cases

• Track lighting systems in retail or gallery spaces
• Cove and accent lighting in residential smart homes
• Under-cabinet lighting with tunable white for task or ambient modes
• Retrofit projects where existing 12V/24V LED strips need wireless control

Good to know

The controller has overload and short-circuit protection, and it remembers the last brightness and colour temperature after a power cycle. It connects via screw terminals for secure wiring.
