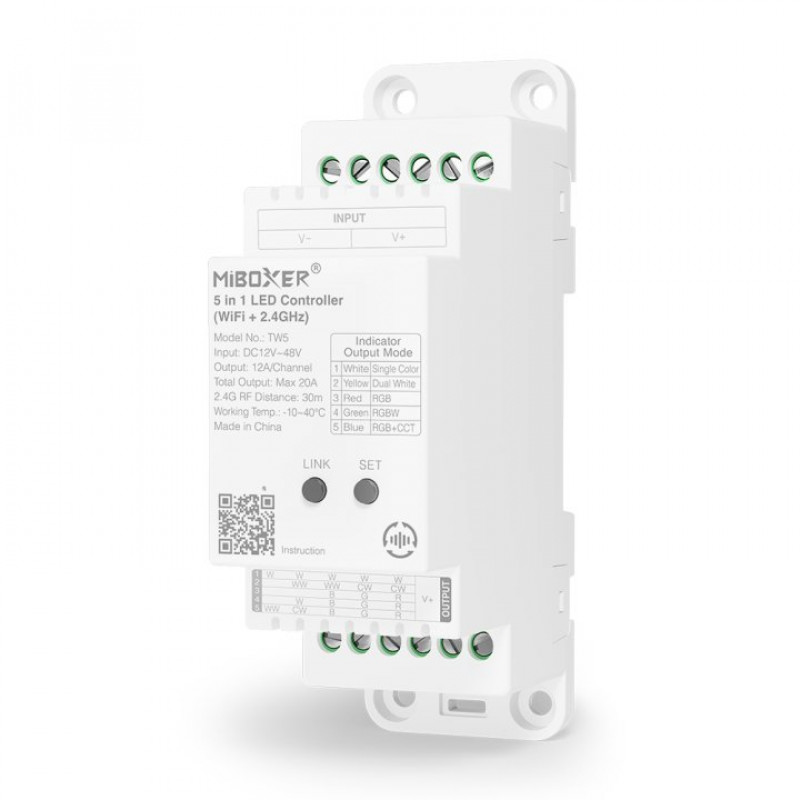

MiBoxer TW5 5-in-1 LED-controller voor DIN-rail, WiFi + RF, 12 A/kanaal, 20 A totaal

MiBoxer TW5 is a five-mode constant-voltage LED controller for single-colour, CCT, RGB, RGBW and RGB+CCT strips. Its built-in 2.4 GHz WiFi connects to Tuya Smart without a separate Zigbee gateway. Compatible MiBoxer 2.4 GHz RF remotes provide local wireless control. Maximum output is 12 A per channel, with a shared limit of 20 A across all channels.

The white controller mounts on a standard 35 mm DIN rail. LINK and SET buttons are used for pairing and output-mode selection. With a compatible RF remote it offers 18 dynamic lighting modes and effect synchronization; stated RF range is up to 30 m. Protection is IP20 and operating temperature is -10 to +40 °C. Select a matching DC supply for the connected LED strip and keep the combined load within the 20 A limit.
