MiBoxer TZ5 5-in-1 LED-controller voor DIN-rail, Zigbee 3.0 + RF, 12 A/kanaal, 20 A totaal

MiBoxer TZ5 controls constant-voltage LED strips in five selectable modes: single colour, CCT, RGB, RGBW and RGB+CCT. Zigbee 3.0 and 2.4 GHz RF support compatible smart-home gateways and MiBoxer remotes. Output current is up to 12 A per channel, but the combined current of all channels must remain within 20 A.

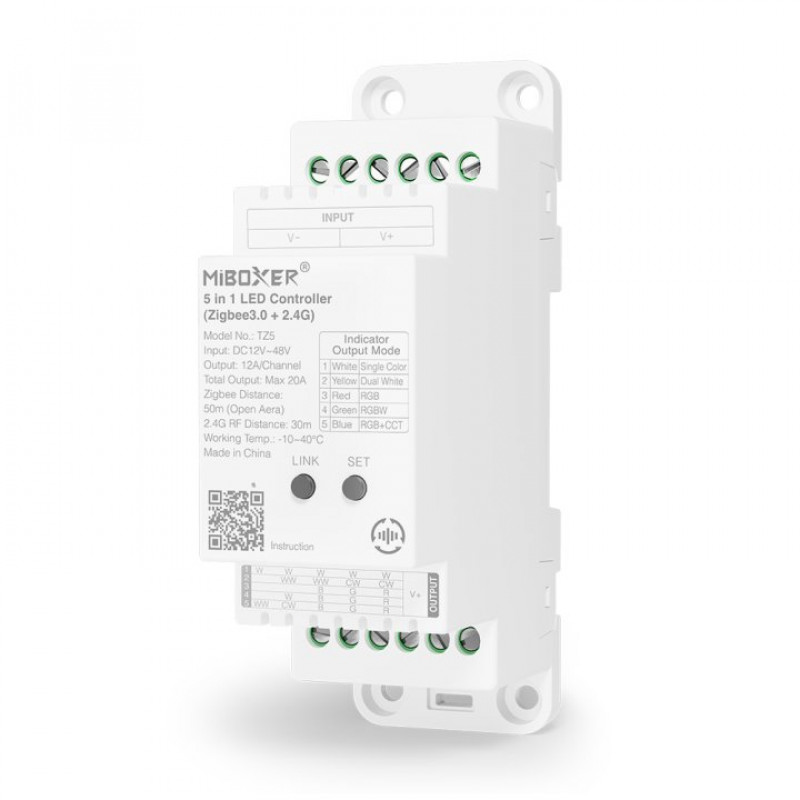

The white housing mounts on a 35 mm DIN rail. LINK and SET buttons are used for pairing and mode selection. Tuya Smart app control requires a separate Zigbee 3.0 gateway. Compatible RF remotes offer 18 dynamic lighting modes and synchronized effects. Stated range is up to 50 m for Zigbee in an open area and 30 m for RF. Protection is IP20; the operating temperature is -10 to +40 °C. Use a suitable DC supply matched to the LED strip.
