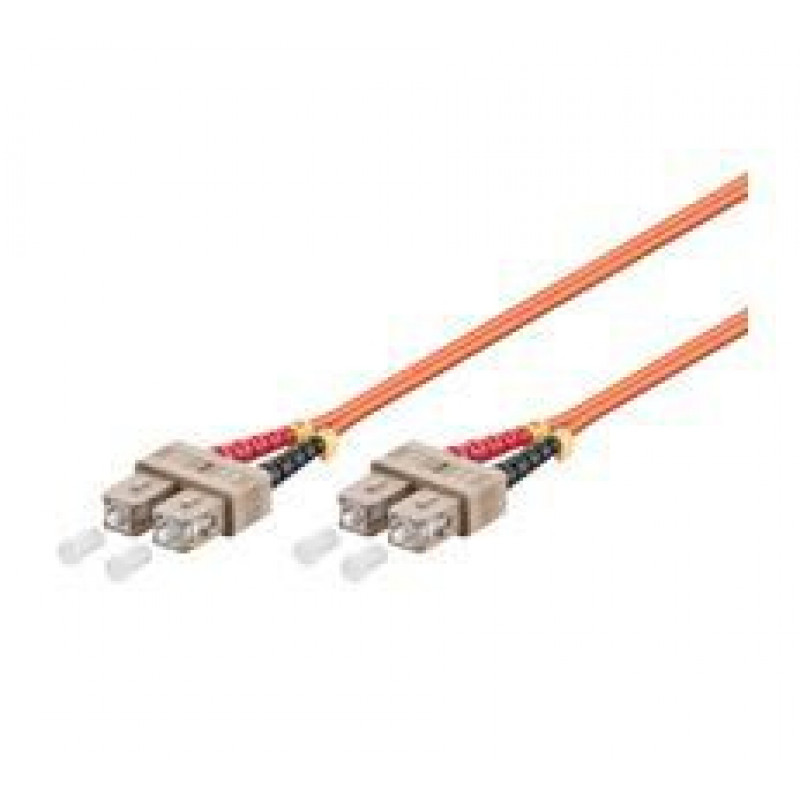

Microconnect 1m SC/UPC-SC/UPC duplex multimode OM2 glasvezel-patchkabel, LSZH, oranje

When rack space is at a premium, this Microconnect fibre patch cable eliminates the slack and clutter of longer jumpers while keeping signal integrity intact. The SC/UPC connectors on both ends feature an ultra physical contact polish that minimises back reflection, and the duplex 50/125 µm OM2 core reliably supports Fast Ethernet and 1G Fibre Channel links. The orange LSZH jacket does more than aid identification—it actively reduces smoke and toxic emissions, making it a safer choice for enclosed racks, raised floors, and public buildings.

Highlights

• SC/UPC to SC/UPC connectors with ultra physical contact polish for low back reflection
• Duplex 50/125 µm multimode fibre, OM2 grade, ideal for Fast Ethernet and 1G Fibre Channel
• 1-metre length reduces slack and improves airflow in high-density patching areas
• LSZH (Low Smoke Zero Halogen) orange jacket meets strict fire safety requirements
• Insertion loss below 0.3 dB and return loss above 30 dB for consistent signal integrity

In daily use

The cable’s 2.0 mm diameter and flexible construction make routing around corners and through cable managers straightforward. Because both ends are factory terminated and tested, you avoid the variability of field-polished connectors. The orange colour stands out among copper and singlemode cables, simplifying port identification during maintenance.

Full specifications

• Connector type (both ends): SC/UPC duplex
• Fibre type: Multimode OM2, 50/125 µm core/cladding
• Number of fibres: 2 (duplex)
• Cable length: 1 m
• Cable diameter: 2.0 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Orange
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Compliance: RoHS, CE

Final note

Factory terminated and tested for reliable performance, this orange LSZH patch cable is an ideal choice for high-density fibre patching where safety and easy identification matter.
