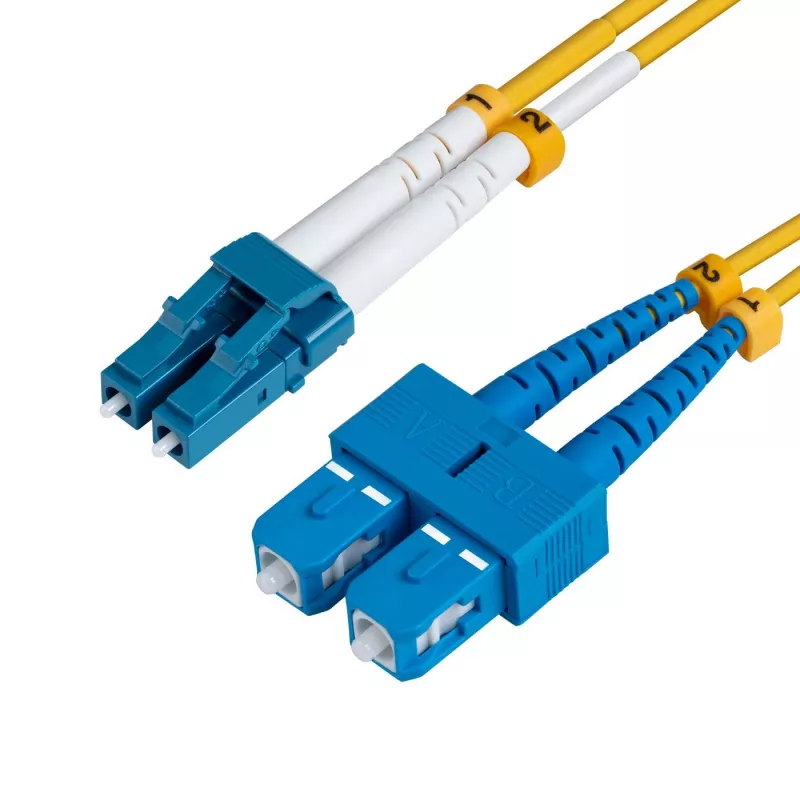

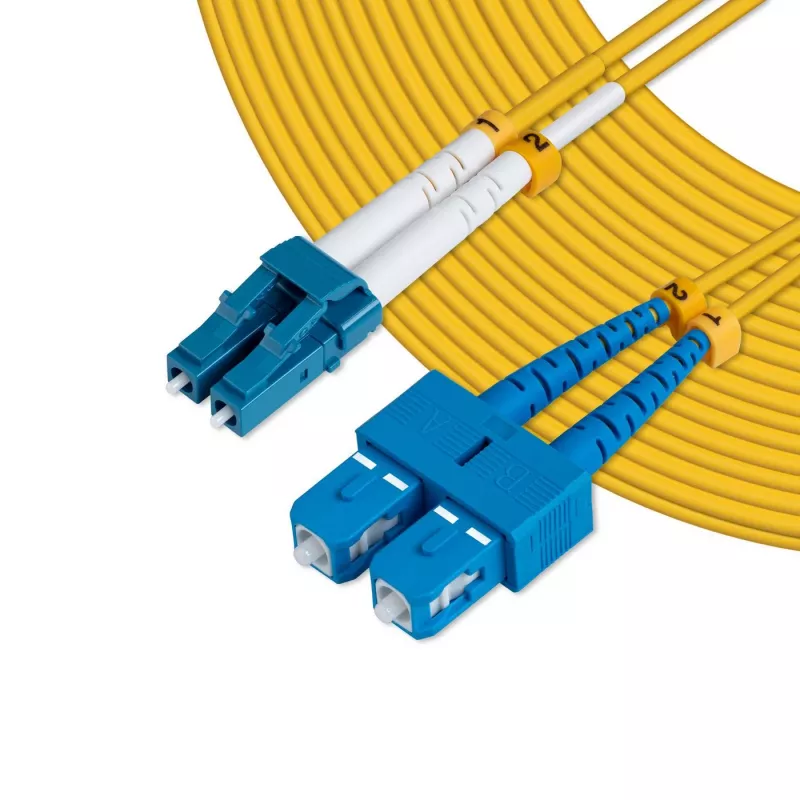

Microconnect FIB421007 InfiniBand/glasvezelkabel 7 m LC SC geel

The Microconnect FIB421007 is a 7 m single mode fibre optic patch cable with LC and SC connectors and OS2 fibre. It is designed for high-speed data transmission in enterprise networks, telecom rooms, server farms and cloud storage networks where reliable fibre jumper cables are required. The cable supports 1G/10G/40G/100G Ethernet connections and is manufactured with LSZH jacket materials that comply with common industry standards.

Advantages

The single mode OS2 fibre provides low attenuation and stable performance over long distances. LC to SC connectivity offers compatibility with a wide range of network equipment. The 7 m length and yellow LSZH jacket make the cable easy to route and identify in data centre and telecom environments, while maintaining safety and reduced smoke emissions in case of fire.

Suitable for

• Connecting switches, transceivers and patch panels in data centres
• Telecom rooms and server racks
• Cloud storage and enterprise network backbone links
• Long-distance optical links up to 10 km (1310 nm) or 40 km (1550 nm)

Key specifications

• Length: 7 m
• Connector 1: LC
• Connector 2: SC
• Fibre type: OS2 (single mode)
• Core diameter: 9 µm
• Jacket: LSZH
• Colour: Yellow
• Weight: 0.06 kg
• Supported Ethernet: 1G/10G/40G/100G

How to use

Inspect connectors and ports for dust before installation and, if available, use appropriate fibre cleaning tools. Route the cable through cable trays or along rack pathways avoiding tight bends and mechanical stress. Insert the LC connector into the LC port and the SC connector into the SC port until they click into place. Verify link status on network devices and perform optical power or continuity tests as needed.

Recommendations

Store and handle the fibre cable carefully to avoid bending below the minimum bend radius. Use dust caps when connectors are not in use and perform cleaning prior to connection to maintain optimal signal quality.
