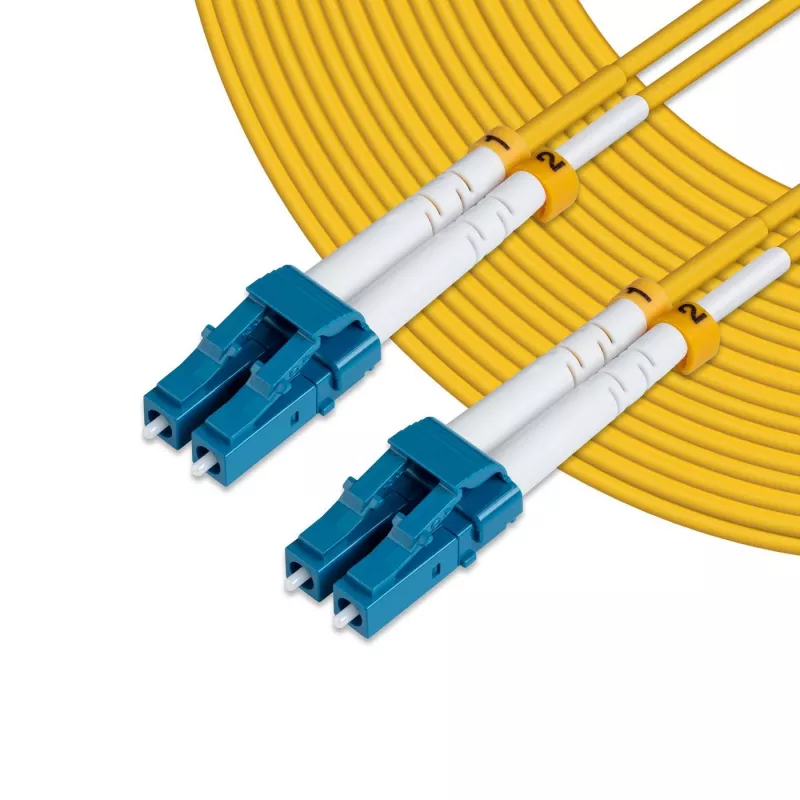

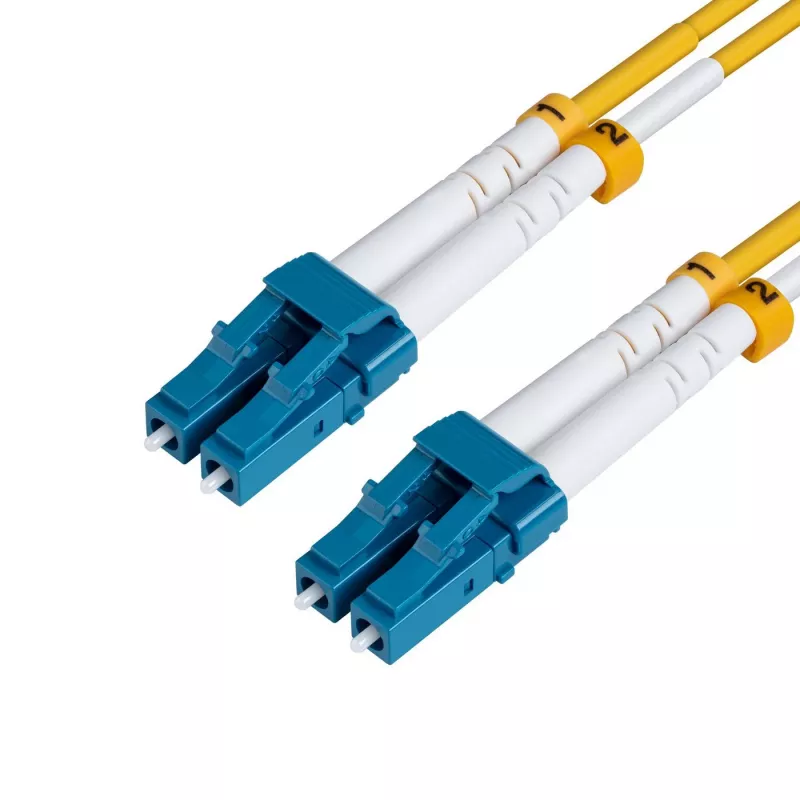

Microconnect FIB441004 InfiniBand/glasvezelkabel 4 m LC geel

The Microconnect FIB441004 LC OS2 4 m Yellow is a single-mode fibre optic patch cable designed for reliable data transmission in enterprise networks, telecom rooms, server farms and cloud storage networks. With LC connectors on both ends and OS2 fibre (9 µm core), this 4 m cable supports full-duplex connections for 1G/10G/40G/100G Ethernet and is easy to identify thanks to its yellow jacket.

Advantages

This single-mode patch cord offers low attenuation suitable for long-distance links, supports transmission up to 10 km at 1310 nm and up to 40 km at 1550 nm, and uses LSZH jacket materials compliant with IEC, EIA/TIA or Telcordia standards where specified. LC-to-LC connectors provide compact, secure mating and the 9 µm core OS2 fibre is optimized for high-speed, long-reach networks.

Suitable for

• Enterprise network backbones and aggregation links
• Telecom rooms and data centre racks
• Server farms and cloud storage interconnections
• 1G/10G/40G/100G Ethernet optical links

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB441004
• Length: 4 m
• Connector A: LC
• Connector B: LC
• Fibre type: OS2 (single-mode), core diameter 9 µm
• Colour: Yellow
• Weight: 0.09 kg

How to use

Inspect connectors and ports for dust or damage before use. Align the LC connector with the corresponding LC port and insert until it latches. Use this cable for interconnecting optical transceivers, patch panels and switches supporting single-mode OS2 fibre. Avoid tight bends and secure the cable along cable management paths to maintain minimum bend radius and signal integrity.

Recommendations

For best performance, store and handle the fibre with clean hands and dust-free caps on connectors when not in use; keep bend radius greater than manufacturer recommendations and verify transceiver compatibility for target wavelengths (1310 nm or 1550 nm) depending on link distance.
