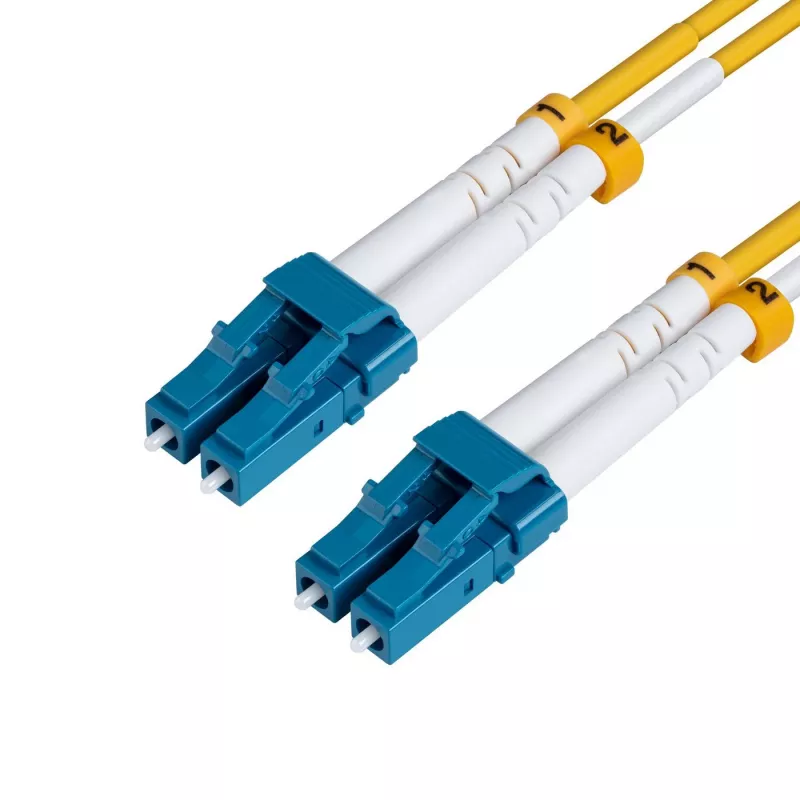

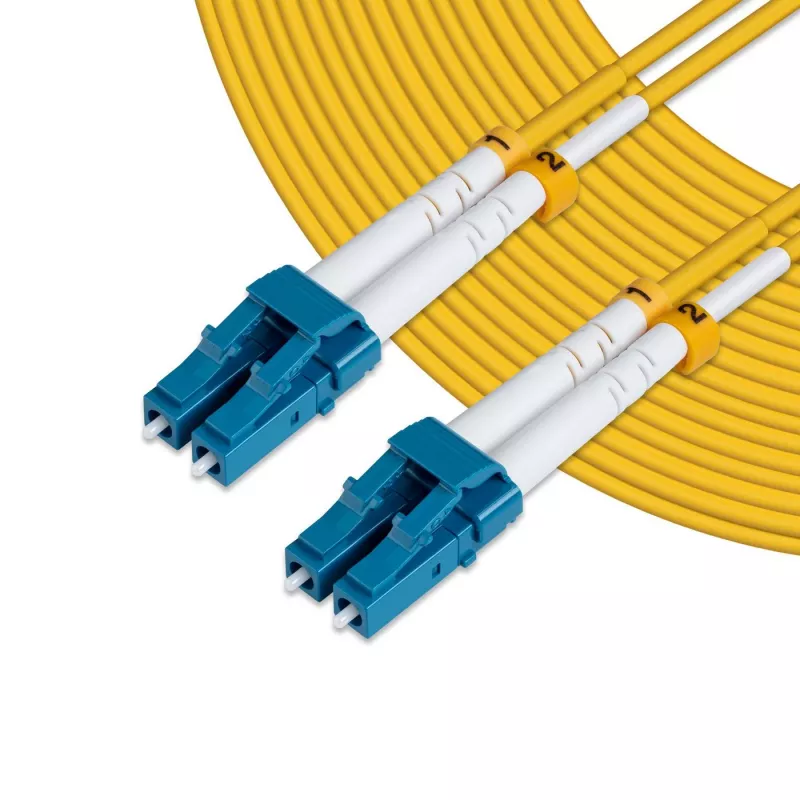

Microconnect FIB441020 InfiniBand/glasvezelkabel 20 m LC geel

The Microconnect FIB441020 is a 20 m single-mode fibre optic patch cable with LC to LC connectors and OS2 fibre. It is designed for enterprise networks, telecom rooms, server farms and cloud storage networks where reliable single-mode jumper cables are required. The cable supports 1G/10G/40G/100G Ethernet connections and is suitable for long-distance transmission with reach up to 10 km at 1310 nm and up to 40 km at 1550 nm. The yellow LSZH jacket ensures easy identification and reduced smoke emission in the event of a fire.

Advantages

The LC OS2 construction with a 9 µm core diameter provides low attenuation and stable signal quality for high-speed links. Using LSZH (low-smoke zero-halogen) materials complies with common industry standards (IEC, EIA/TIA, Telcordia) and reduces hazardous emissions. The 20 m length and LC–LC connectors make the cable ready for direct patching in data centres and professional network racks.

Suitable for

• Data centres and server rooms
• Telecom distribution and patch panels
• Cloud storage and high-performance computing networks
• Long-reach Ethernet links (1G/10G/40G/100G)

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB441020
• Length: 20 m
• Connector type: LC — LC
• Fibre type: OS2 (single-mode), 9 µm core
• Colour: Yellow (LSZH jacket)
• Reach: up to 10 km @ 1310 nm, up to 40 km @ 1550 nm
• Weight: 0.1 kg
• EAN: 5704327086307

How to use

Inspect connectors and ports for contamination before connection. Align and insert the LC connectors into corresponding LC duplex ports on switches, transceivers or patch panels until they click. Route the cable to avoid sharp bends (follow the manufacturer’s minimum bend radius) and secure it in cable management to prevent strain. For long-term installations, label both ends with location or port information.

Recommendations

Use the Microconnect FIB441020 for single-mode long-reach links in professional environments. Avoid excessive bending or tensile stress, keep connector endfaces clean using appropriate fibre cleaning tools, and store with protective dust caps when not connected.
