Microconnect FIB442050 InfiniBand-/glasvezelkabel 50 m LC blauw

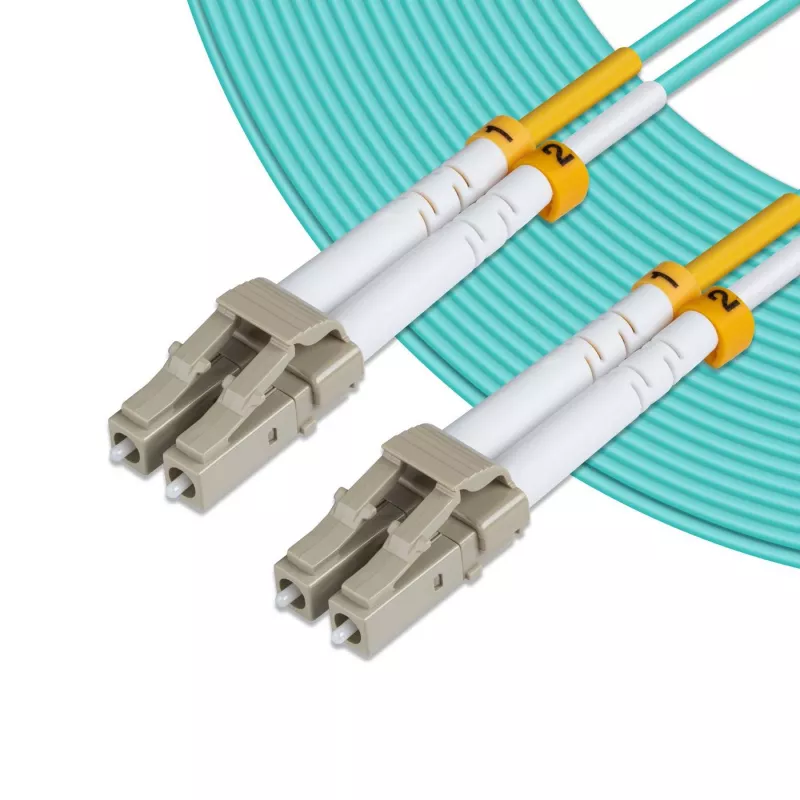

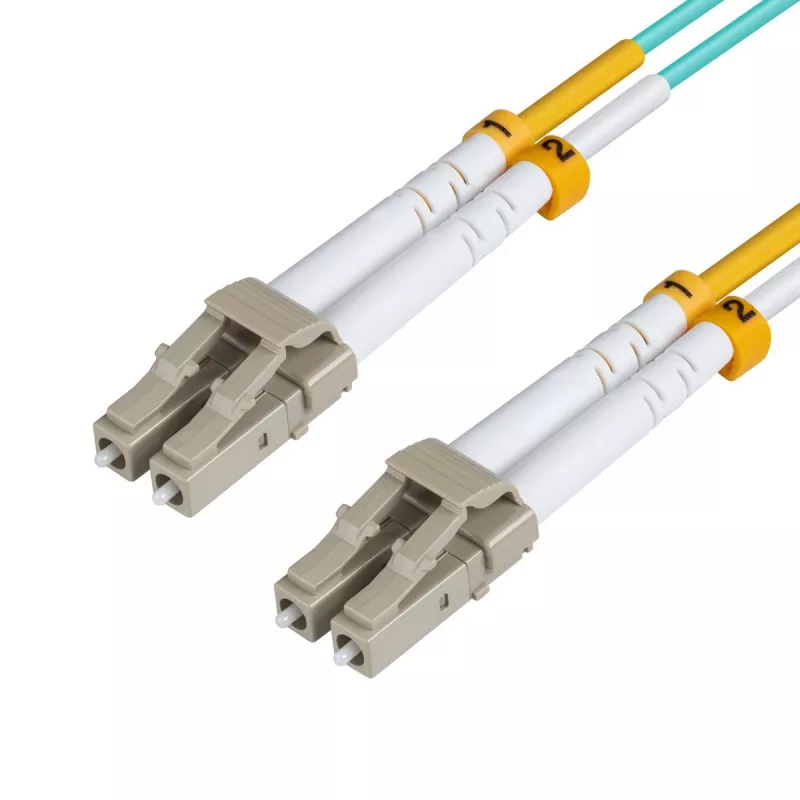

The Microconnect FIB442050 is a 50 m OM3 multimode bend-insensitive fibre optic patch cable with LC connectors on both ends. It has a 50/125 µm core/cladding structure and LSZH jacket, designed for high-speed data transmission in data centres and network installations. The cable supports 10G SR, 10G LRM and SFP+ transceivers and is suitable for 10G/40G/100G Ethernet links where OM3 multimode fibre is required.

Advantages

This OM3 multimode cable offers reduced attenuation when bent or twisted compared with traditional multimode fibres, improving installation flexibility and long-term reliability. The LSZH jacket meets common industry standards (IEC, EIA/TIA or Telcordia) and the LC–LC connectors provide compact, duplex connections for high-density panels and transceivers. The 50 m length and 50 µm core make it suitable for short-range, high-speed links.

Suitable for

• 10G SR and 10G LRM links
• SFP+ transceivers and short-range 10G/40G/100G Ethernet
• Data centre patching and high-density network panels
• InfiniBand and server-to-switch connections

Key specifications

• Cable length: 50 m
• Fibre type: OM3 multimode, 50/125 µm
• Connectors: LC to LC (duplex)
• Jacket: LSZH
• Colour: Blue
• Weight: 0.1 kg
• Brand / MPN / EAN: MicroConnect / FIB442050 / 5705965977521

How to use

Route the LC–LC patch cable between compatible LC duplex ports on transceivers, switches or patch panels. Ensure connectors are clean before insertion to avoid signal loss; use appropriate dust caps or cleaning tools. Avoid tight bends below the manufacturer’s bend radius and secure the cable to avoid strain on connectors. For best performance, match OM3 fibre to OM3-compatible transceivers and equipment.

Recommendations

Use the Microconnect FIB442050 for short-reach, high-bandwidth connections in data centres and server rooms. Keep the cable free from sharp bends and protect LC endfaces from contamination; replace or clean connectors if signal issues occur.
