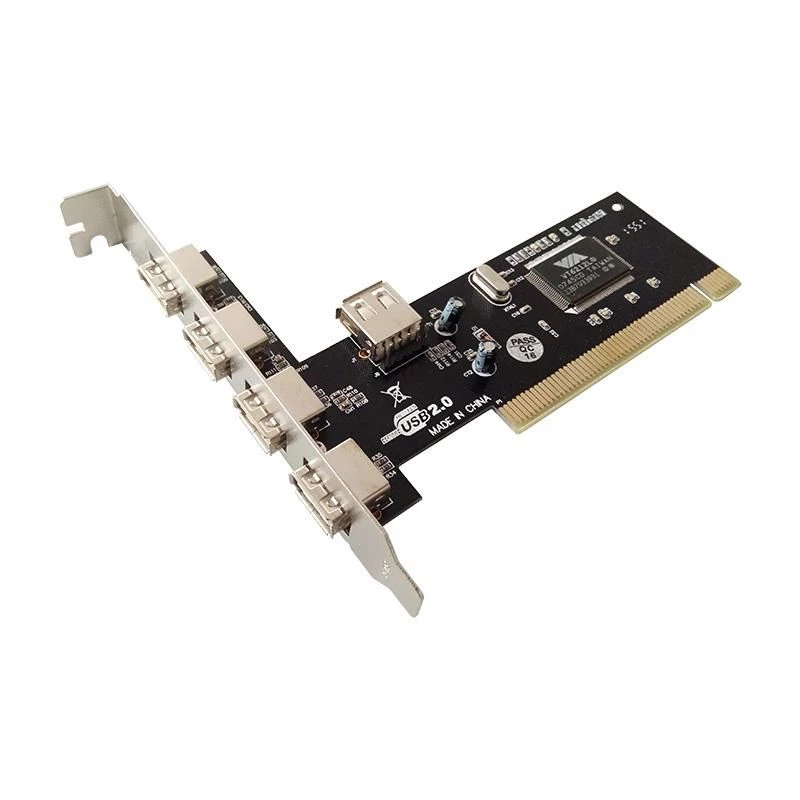

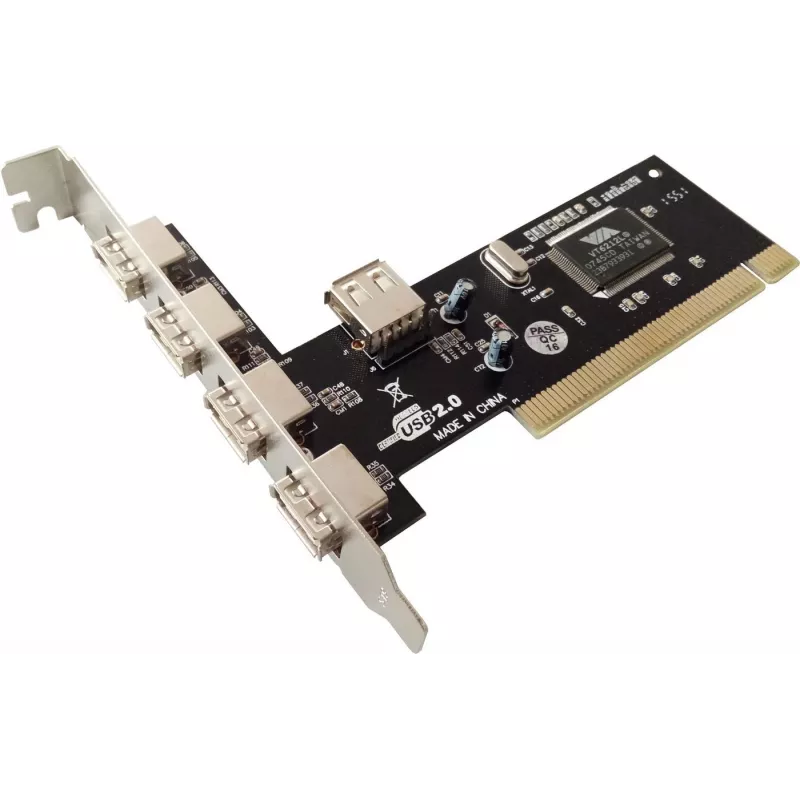

Microconnect MC-USB-NEC2.0 interfacekaarten/-adapters intern USB 2.0

The Microconnect MC-USB-NEC2.0 is an internal USB 2.0 adapter that adds five additional High Speed USB ports to a desktop system via a PCI host interface. The card supports a maximum data transfer rate of 480 Mbit/s, has compact dimensions (115 mm × 83 mm) and a light weight of 56 g, making it suitable for installation inside standard computer cases.

Advantages

This internal USB 2.0 adapter provides five extra ports without requiring external hubs, uses a standard PCI host interface for broad motherboard compatibility, and delivers USB 2.0 High Speed performance at up to 480 Mbit/s. Its small form factor and low weight simplify installation and save internal space.

Suitable for

• Expanding USB connectivity in desktop PCs
• Connecting peripherals that require USB 2.0 ports (printers, scanners, card readers)
• Systems with limited external USB ports

Key specifications

• Manufacturer: MicroConnect
• Model: MC-USB-NEC2.0
• Interface: PCI (host interface)
• Output: USB 2.0, High Speed
• Maximum data rate: 480 Mbit/s
• Card dimensions: 115 mm (W) × 83 mm (D)
• Weight: 0.056 kg
• Internal installation: Yes

How to use

Power down the PC and unplug it from mains. Open the computer case, locate an available PCI slot and remove the slot cover. Insert the MC-USB-NEC2.0 card into the PCI slot and secure it with the chassis screw. Close the case and reconnect power. After booting, install any required drivers provided by the operating system or the manufacturer to enable the five USB 2.0 ports. Connect USB devices to the newly available ports as needed.

Recommendations

For optimal performance, connect USB 2.0 devices to the adapter’s ports to utilize High Speed transfer rates. If using multiple high-bandwidth devices simultaneously, monitor overall throughput and consider distributing devices across internal and rear motherboard ports to avoid bandwidth contention.
