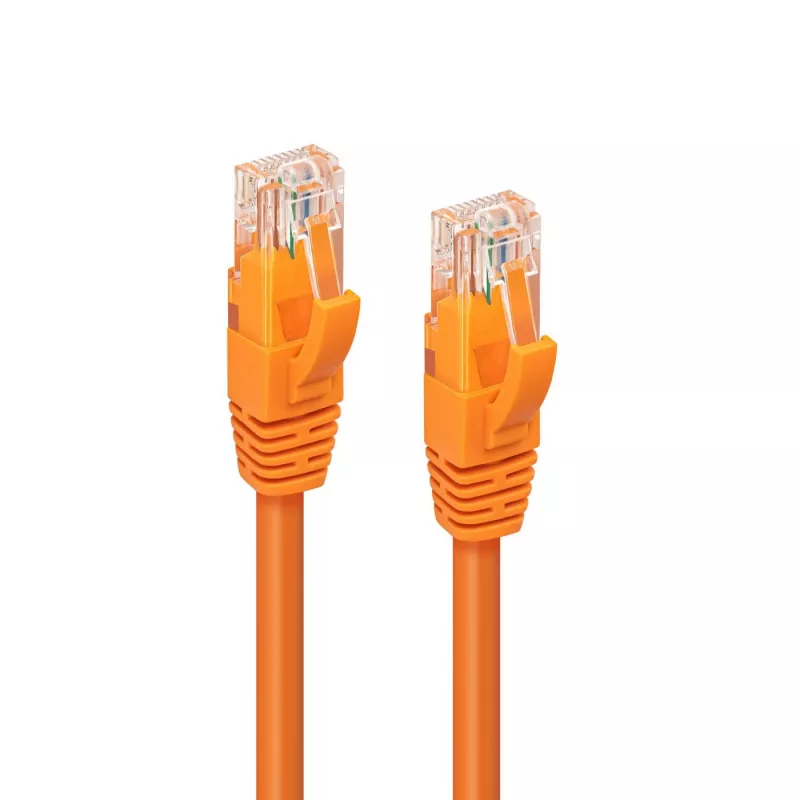

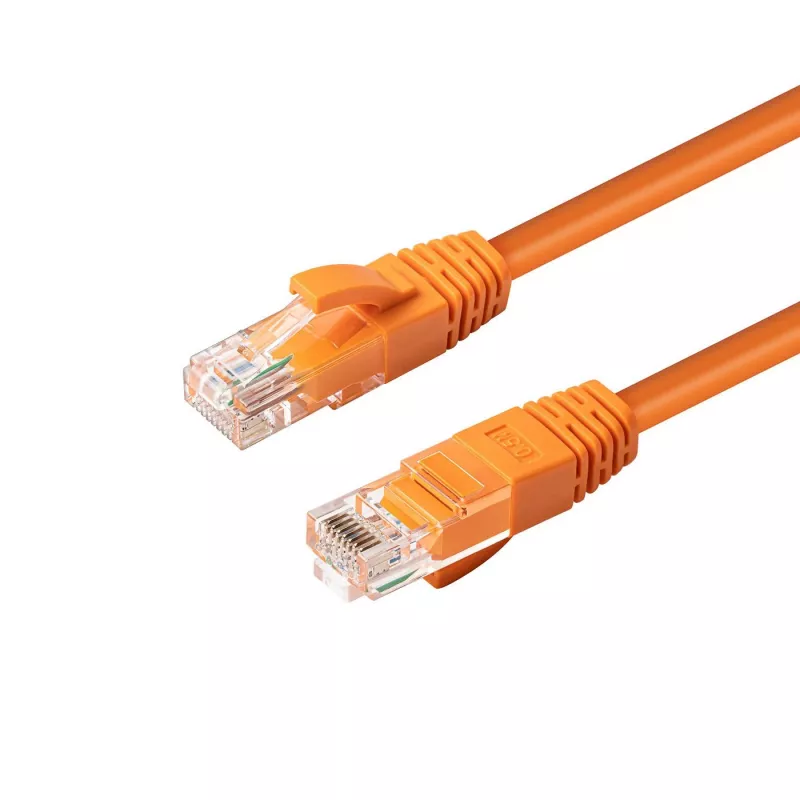

Microconnect MC-UTP6A075O netwerkkabel oranje 7,5 m Cat6a U/UTP (UTP)

The MicroConnect MC-UTP6A075O is a Cat6a U/UTP patch cable in a 7.5 m length designed for high-speed wired networks. It supports data rates up to 10000 Mbit/s and bandwidths up to 500 MHz, and is fitted with RJ-45 connectors with gold-plated contacts. The cable has meter markings on the boot and an orange jacket for easy identification.

Advantages

This Cat6a cable provides support for 10Gbit networks and elevated bandwidth needs up to 500 MHz. The gold-plated RJ45 contacts improve signal transfer and contact reliability, while the 50µ" RJ45 connector construction and latch protection reduce the risk of connector damage. Meter markings on the boot make it simple to verify cable length during installation.

Suitable for

• 10G Ethernet connections in data centers and server rooms
• High-bandwidth office networking and workstation cabling
• Structured cabling runs where U/UTP Cat6a performance is required
• Temporary or permanent patching between switches, patch panels and devices

Key specifications

• Standard: Cat6a (U/UTP)
• Length: 7.5 m
• Connectors: RJ-45 to RJ-45, gold-plated contacts
• Supported data rate: up to 10000 Mbit/s
• Bandwidth: up to 500 MHz
• Colour: Orange
• Weight: 0.2 kg

How to use

Plug one RJ-45 connector into the network port of your switch, router or network device and the other connector into the corresponding port on the target device or patch panel. Ensure connectors click into place with the latch protection engaged. Use the meter markings on the boot to confirm the cable length before routing it through racks, conduits or cable trays.

Recommendations

For optimal performance, avoid sharp bends and excessive pulling force during installation, maintain proper separation from strong electromagnetic sources, and follow your site’s structured cabling guidelines when terminating and routing Cat6a U/UTP cables.
