Microconnect POEINJ-15W PoE-adapter 10 Gigabit Ethernet 48 V

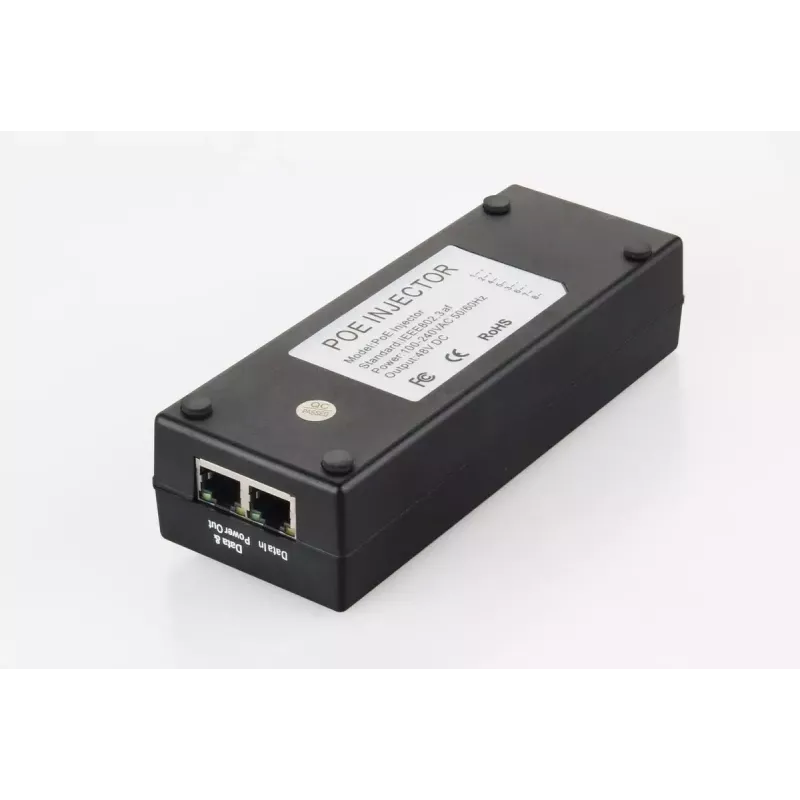

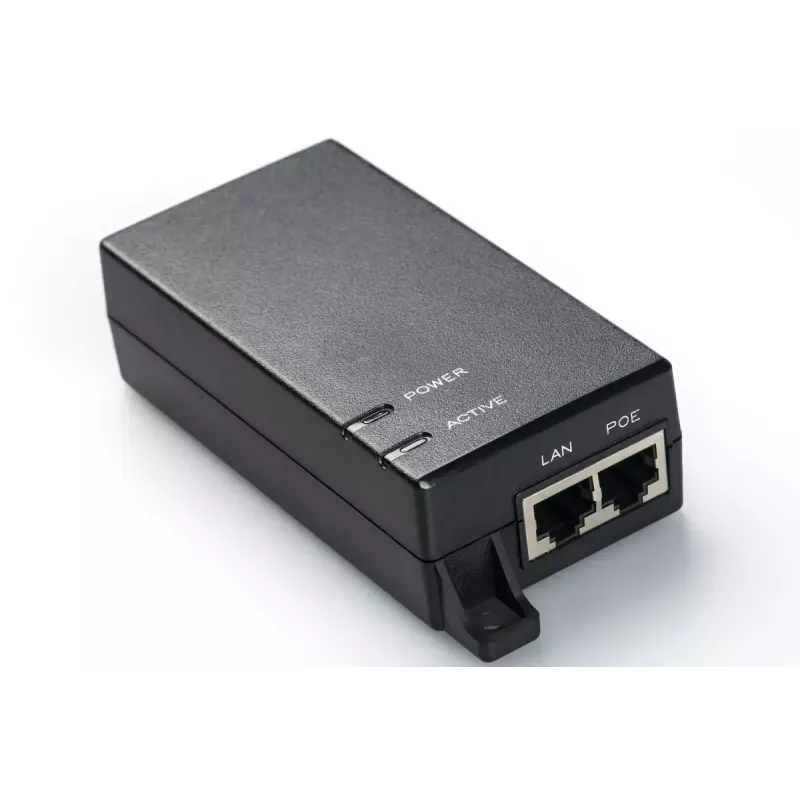

The Microconnect POEINJ-15W is a compact single-port Gigabit PoE adapter that supplies 48 V DC and up to 15.4 W over standard Ethernet cable. It has two RJ45 ports — one for data input from a network switch and one for combined data+power output to a remote powered device. The adapter supports 10/100/1000 Mbps transmission up to 100 m and accepts a wide AC input range of 100–240 V, 50–60 Hz. It is compliant with the IEEE 802.3af PoE standard and is CE and FCC certified.

Advantages

The POEINJ-15W enables power and data delivery over a single Ethernet cable, removing the need for a separate mains outlet at the device location. Its small form factor and wide input voltage range make it suitable for varied installation environments. The device is compatible with IEEE 802.3af powered equipment and supports reliable Gigabit data rates while providing up to 15.4 W of PoE power.

Suitable for

• Wireless access points (APs)
• Network cameras (IP cameras)
• VoIP phones
• Network switches and routers that require remote PoE devices
• Industrial Ethernet terminals and remote network equipment

Key specifications

• Model: Microconnect POEINJ-15W (MPN: POEINJ-15W)
• PoE standard: IEEE 802.3af
• PoE voltage: 48 V DC
• PoE power output: up to 15.4 W
• Ports: 2 × RJ45 (one DATA in, one DATA+POWER out)
• Ethernet speed: up to 1000 Mbps (Gigabit)
• Transmission distance: up to 100 m over Cat5/6 cable
• Input voltage: 100–240 V AC, 50–60 Hz
• Certifications: CE, FCC
• Colour: Black
• Weight: 0.25 kg

How to use

Connect the DATA input RJ45 port of the POEINJ-15W to an uplink port on your network switch using Ethernet cable. Plug the remote powered device (for example, an IP camera or AP) into the DATA+POWER output RJ45 port with another Ethernet cable. Connect the adapter to AC mains (100–240 V) and power it on; the adapter will combine switch data with PoE power and transmit both over the output cable to the powered device. Since the unit does not include an internal network switch, it must be used with an external switch or router for data connectivity.

Recommendations

Use Cat5e or better Ethernet cable for Gigabit performance and keep cable runs within 100 m. Verify that the powered device supports IEEE 802.3af and that its power consumption does not exceed the adapter’s 15.4 W output. Install the adapter in a dry, ventilated location away from heat sources and follow local electrical safety rules when connecting to mains power.
