MicroTouch 21,5 inch PCAP open frame touchmonitor, 1920x1080, 215 nits, 10-punts touch, HDMI, DisplayPort, VGA

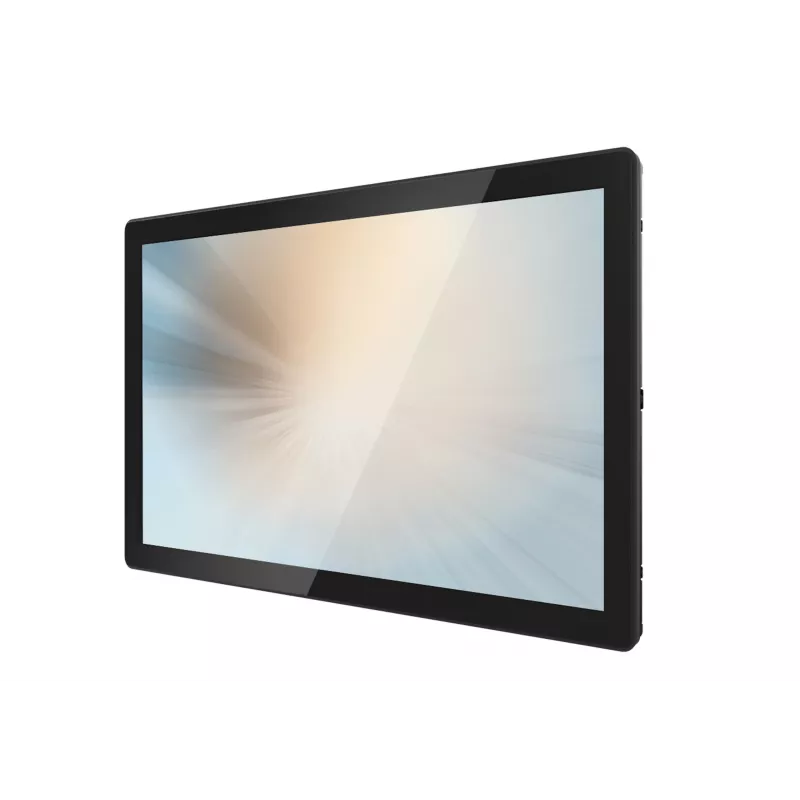

The MicroTouch OF-215P-B1 is a 21.5-inch open frame touch monitor designed for commercial and industrial applications. Featuring projected capacitive (PCAP) technology with 10-point multi-touch, it delivers responsive and accurate touch input. With Full HD resolution (1920x1080), 215 cd/m² brightness, and a 1000:1 contrast ratio, it provides clear and vibrant visuals. The monitor includes HDMI, DisplayPort, and VGA inputs, plus a USB Type-B touch interface, making it versatile for various setups. Its open frame design allows easy integration into kiosks, gaming machines, and other embedded systems.

Advantages

Reliable 10-point PCAP touch for intuitive interaction; Full HD resolution for sharp image quality; multiple video inputs for flexible connectivity; VESA mount compatible for easy installation; energy-efficient with typical 18W power consumption.

Suitable for

• Kiosks and self-service terminals
• Point-of-sale systems
• Industrial control panels
• Gaming and amusement machines
• Digital signage

Key specifications

• Display Size: 21.5 inches
• Resolution: 1920 x 1080 (Full HD)
• Touch Technology: Projected Capacitive (PCAP), 10-point
• Brightness: 215 cd/m²
• Contrast Ratio: 1000:1
• Aspect Ratio: 16:9
• Response Time: 14 ms
• Video Inputs: 1x HDMI, 1x DisplayPort, 1x VGA
• Touch Interface: USB Type-B
• VESA Mount: 100 x 100 mm
• Display Type: TFT LCD with LED backlight
• Viewing Angle: 170° horizontal / 160° vertical
• Operating Temperature: 0°C to 40°C
• Power Consumption: 18 W typical
• Certifications: CE, FCC, UL, cUL, RoHS

Recommendations

For optimal performance, use a shielded USB cable for touch connectivity and ensure proper ventilation in enclosed installations. Compatible with Windows, Linux, and Android operating systems.
