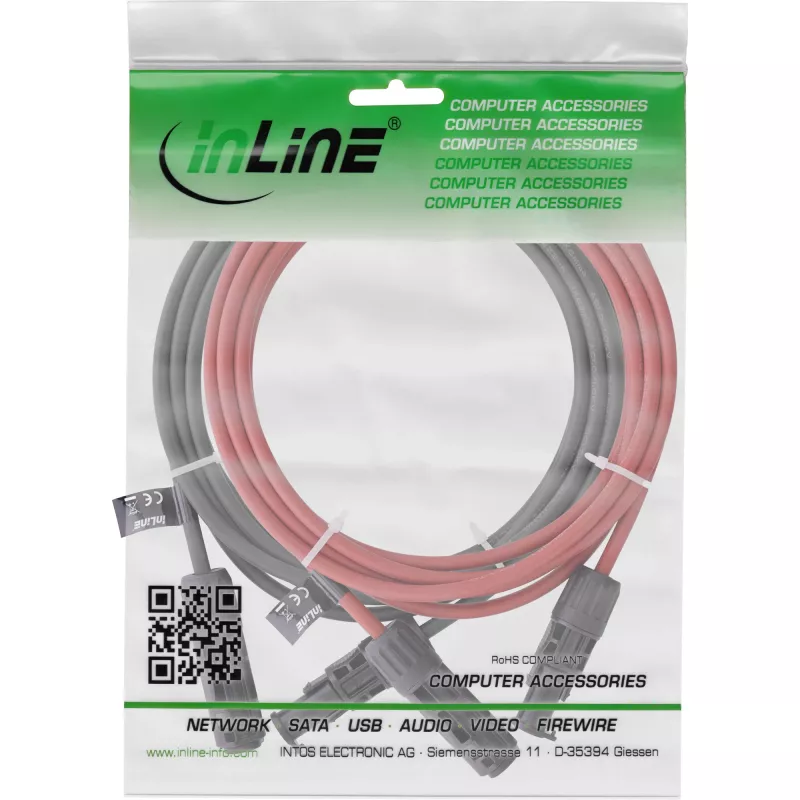

InLine Zonnekabel-verlengset 95610 met zonnestekkers, 6 mm², zwart/rood, 10 m

The InLine Solar Cable Extension Set 95610 is a pre-assembled solar cable set with solar plugs, designed for cabling photovoltaic systems. It includes two cables (black/red) with a 6 mm² conductor cross-section and a length of 10 m.

Key features

• Pre-assembled solar plugs/sockets (MC4, Standard4, PC4 compatible) for immediate connection of solar panels and inverters, incl. dust caps
• High nominal and working voltage: 1.0/1.0 kV AC and 1.5 kV DC in accordance with EN 50618
• Robust construction with external cable diameter of 6.3 mm, nominal wall thickness of insulation 0.7 mm and coating 0.8 mm
• Conductor material: copper, tinned
• Ozone and weather resistance, UV resistance: tested according to EN 60811 / 50618
• Flame resistance: complies with EN 60332-1-2, LSOH (Low Smoke Zero Halogen)
• Insulation: halogen-free, low-smoking, cross-linked polyolefin (XLPO)
• Easy installation thanks to flexibility and robust construction

Specifications

• Brand: InLine
• MPN: 95610
• Product colour: Black
• Type: Solar cables
• Conductor cross-section: 6 mm², fine-wired
• DC line resistance: 3.3 Ohm/km
• Voltage test on cable: AC 6.5 kV, DC 15 kV
• Current carrying capacity: Tested according to EN 50618
• Ambient temperature: -40°C to +90 °C
• Min. bending radius: 26 mm
• Shielding: Unshielded
• Side A: Solar connector (2x)
• Side B: Solar socket (2x)
• Colour: Black/red
• Length: 10 m
• Signal: Power
• Country of origin: Taiwan
