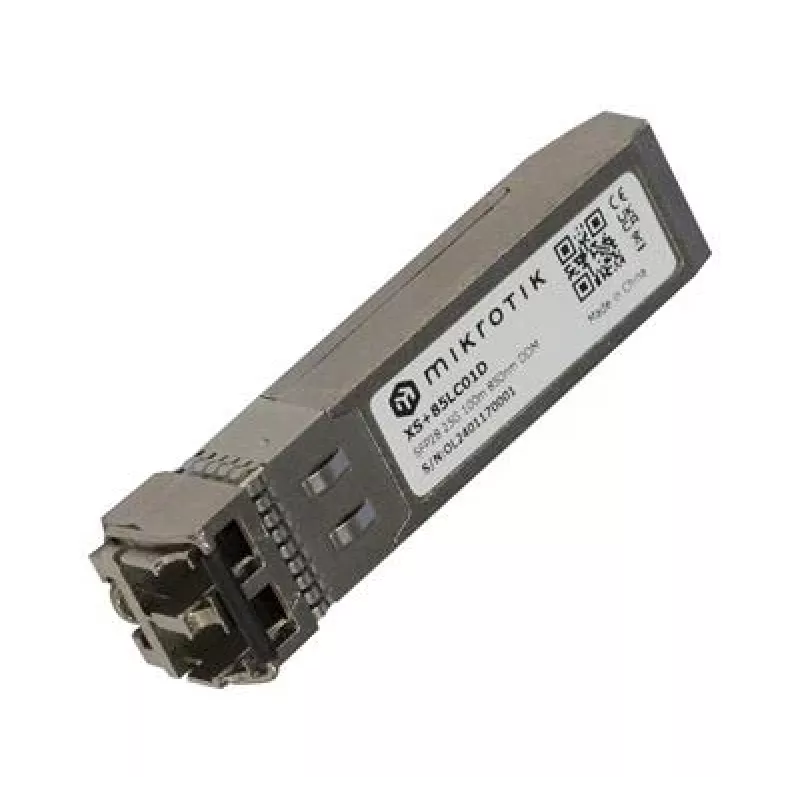

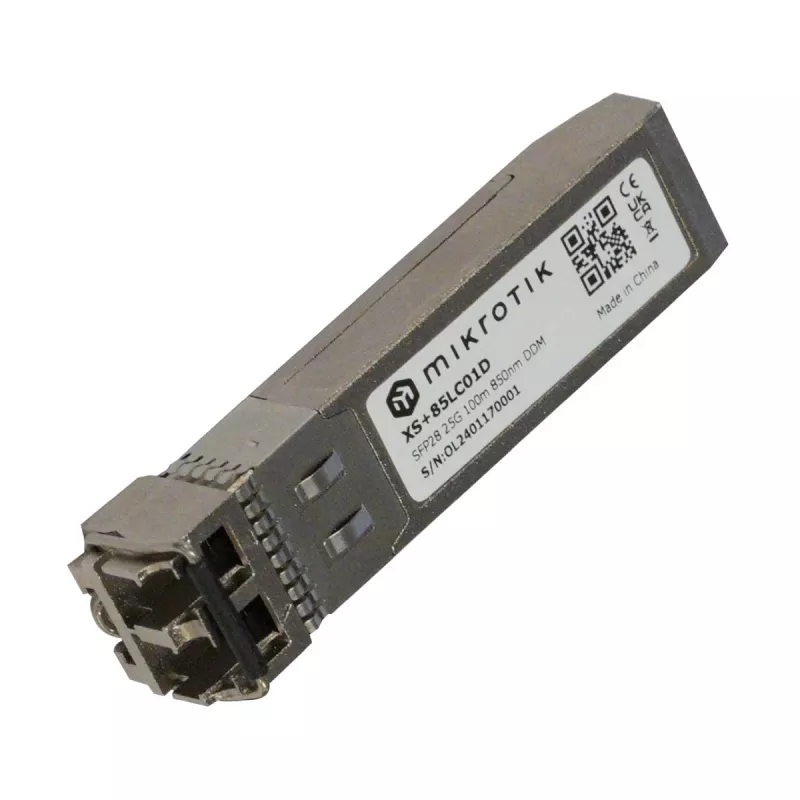

MikroTik XS+85LC01D SFP+ 10GbE 850nm 300m LC Duplex multi-mode glasvezel transceiver module

The MikroTik XS+85LC01D is a high-performance SFP+ transceiver module designed for 10 Gigabit Ethernet (10GbE) connectivity over multi-mode fiber (MMF). With a wavelength of 850 nm and support for distances up to 300 meters on OM3/OM4 fiber, this hot-swappable module is ideal for short-range data center and enterprise network links. It complies with IEEE 802.3ae 10GBASE-SR standards and features Digital Diagnostic Monitoring (DDM) for real-time performance tracking.

Advantages

Reliable 10GbE connectivity with low power consumption (max 1.3 W) and wide operating temperature range (-40°C to +85°C). The LC duplex connector ensures easy integration with existing MMF infrastructure. DDM support allows proactive network management.

Suitable for

• Short-range 10GbE links in data centers
• Enterprise network backbone connections
• High-speed server and storage area network (SAN) interconnects
• MikroTik devices and MSA-compliant equipment

Key specifications

• Module Type: SFP+ Transceiver
• Data Rate: 10.3125 Gbps (10GbE)
• Wavelength: 850 nm
• Fiber Type: Multi-Mode Fiber (MMF)
• Max Distance: 300 m (OM3/OM4)
• Connector: LC Duplex
• DDM/DOM: Yes
• Power Consumption: Max 1.3 W
• Operating Temperature: -40°C to +85°C
• Standards: IEEE 802.3ae 10GBASE-SR
• Transmit Power: -7.3 to -1 dBm
• Receive Sensitivity: < -11.1 dBm
• Voltage: 3.3 V
• Laser Type: VCSEL

Recommendations

For optimal performance, use with OM3 or OM4 multi-mode fiber patch cables. Compatible with MikroTik switches and routers with SFP+ ports, as well as any MSA-compliant SFP+ slot.
