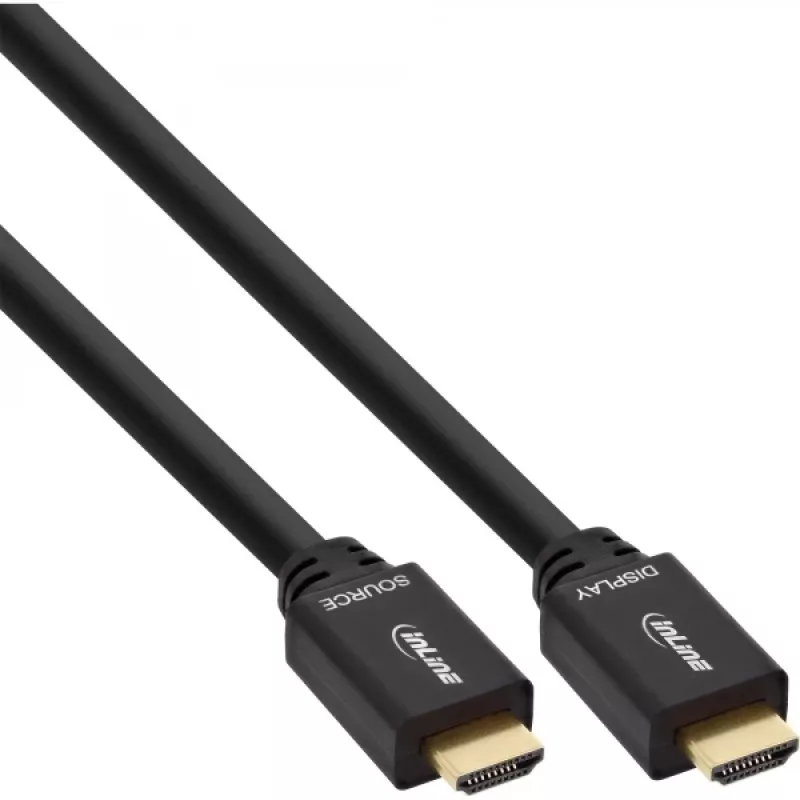

InLine , actieve High Speed HDMI-kabel met Ethernet, M/M, zwart, vergulde contacten, 30 m

InLine® HDMI cable, High Speed HDMI Cable with Ethernet, active, M/M, black, golden contactsHDMI 1.4:
This InLine HDMI cable with specification 1.4 supports 3D content and also has an Ethernet channel and an audio return channel. The audio return channel (ARC) transmits audio signals from the TV to the AV receiver, for example. This allows a speaker system to be integrated into the multimedia setup without additional cables. The Ethernet channel enables network connections between HDMI devices. Significantly higher resolutions than Full HD up to 4kx2k (@30Hz) are supported up to a distance of 5m. (only applies to the flat cable version).

If your 4k HDMI devices or their connections only support a bandwidth of 4k@30Hz, the InLine HDMI cable is suitable for connecting these components. Especially for 4k applications with a low refresh rate such as normal film playback, image editing, presentations and general work on the computer, this bandwidth is sufficient.

Home cinema:The cable is particularly suitable for connecting HDMI components to a 3D home cinema system or AV receiver. Enjoy clear sound with low latency and high resolutions in 4k@30Hz or HD quality.

Streaming:If you stream content from streaming services such as Netflix, Amazon Prime Video or Disney+ in Full HD or watch it on a Full HD TV, you can use this cable to connect streaming players such as Roku, Amazon Fire TV or Chromecast.

Gaming consoles:For older gaming consoles with a resolution of only 1080p, this cable supports a smoother gaming experience due to the higher frame rate of 60 frames per second. Examples of older games consoles include Playstation 3, Playstation 4, Xbox 360, Nintendo Switch and Wii U.

Playback devices:Full HD and / or 3D televisions, projectors or monitors as well as corresponding first-generation 4k devices (4k@30Hz).

Other output devices:Full HD or 4k@30Hz notebooks, PCs, AV receivers, Blu-ray players and set-top boxes for cable TV or satellite services.

AOC

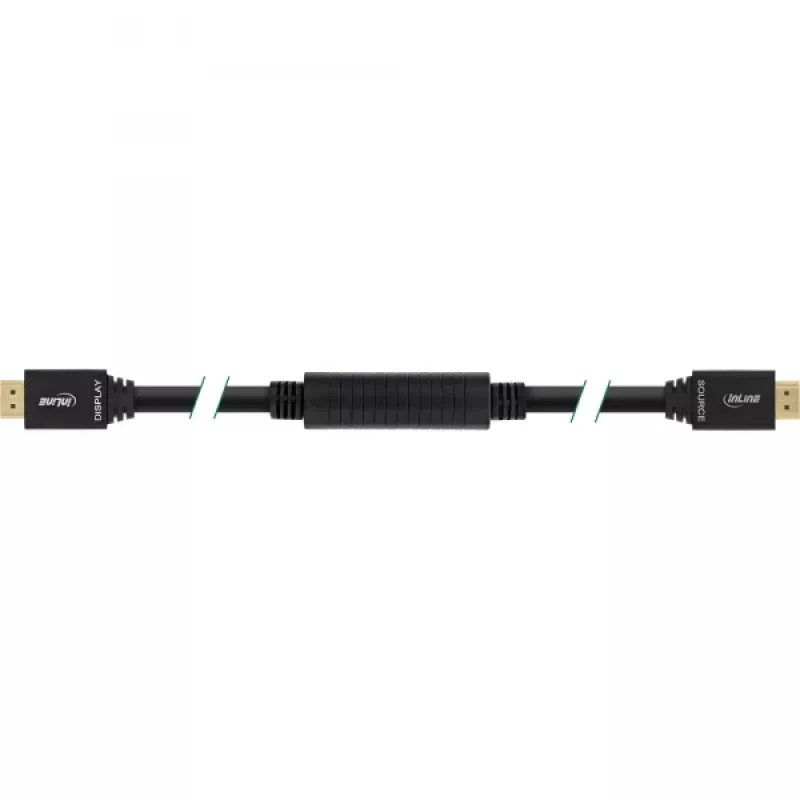

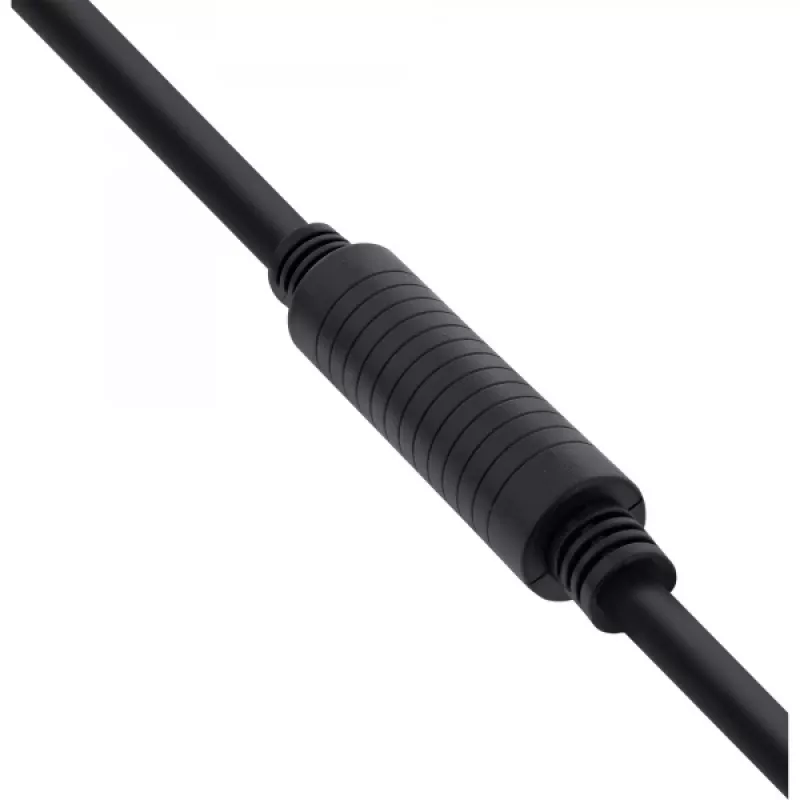

The InLine AOC HDMI cable is an active optical cable (AOC), i.e. it combines copper cables with fibre optic strands and thus combines the advantages of both transmission technologies. This reliable and high-performance solution is particularly suitable for high-quality audio and video transmissions over long distances and in demanding environments, e.g. for conference technology or digital signage. Thanks to the optical fibres inside the cable, the InLine AOC cable can bridge longer distances with less weight and greater flexibility without loss. This makes handling and installation easier compared to pure, often rigid copper cables. In addition, such a connection is less susceptible to electromagnetic interference.

Compared to pure fibre optic cables, the InLine AOC cable is more robust and less susceptible to damage. In addition, no external power supply is required to convert the light signal into an electrical signal. This means that the InLine AOC cable is often more compatible with HDMI devices than purely optical cables. The active electronic components can also additionally amplify the signal and improve transmission properties.

Gold-plated contacts
The gold-plated plugs improve the conductivity, durability and corrosion resistance of the InLine HDMI cable. The risk of oxidation or corrosion is significantly reduced. This increases the long-term reliability of the connection, e.g. even in environments with higher humidity. Gold-plated contacts adapt better to the connections and are less susceptible to abrasion and damage when plugging and unplugging. In addition, the higher conductivity can improve signal transmission and therefore picture and sound quality, especially over longer cable runs.

InLine , active High Speed HDMI Cable w/Ether., M/M, black, golden contacts, 30m. Cable length: 30 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Female, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 1.4, 3D, Product colour: Black

How to use

Connect one HDMI Type A plug to the HDMI output of the source device (for example a Blu-ray player, streaming stick, PC or game console) and connect the other end to the HDMI input of the display or AV receiver. If the TV and AV receiver support ARC and you want to route audio back from the TV to the receiver, enable ARC in both devices’ HDMI settings. Ensure device HDMI ports and cables are free of dust and inserted firmly to guarantee a reliable connection. For 4K@30Hz operation verify that both source and display support the required bandwidth.

Recommendations

Use this cable where longer cable runs are required but full HDMI 2.0/2.1 bandwidth is not necessary. It is suitable for Full HD and 3D setups and for first-generation 4K devices limited to 4K@30Hz. Avoid sharp bends and excessive mechanical stress on the cable; secure the cable along the run to prevent strain on connectors.
