MINIS FORUM NAB6 Lite Intel Core i5-12600H barebone mini-pc

The MINIS FORUM NAB6 Lite is a compact and powerful barebone mini PC designed for users who demand high performance in a small form factor. Powered by the Intel Core i5-12600H processor with 12 cores and 16 threads, it delivers exceptional computing power for multitasking, content creation, and light gaming. This barebone system allows you to customize RAM, storage, and operating system to suit your specific needs.

Advantages

With its Intel Iris Xe integrated graphics, dual 2.5 Gigabit Ethernet ports, and support for up to 64 GB of DDR4 RAM, the NAB6 Lite offers outstanding connectivity and expandability. The compact design with VESA mount support makes it ideal for space-constrained environments like home offices, digital signage, or as a media center.

Suitable for

• Home office and productivity tasks
• Media streaming and light gaming
• Digital signage and kiosk applications
• Thin client and virtualization setups

Key specifications

• Processor: Intel Core i5-12600H (12 cores, 16 threads, up to 4.5 GHz)
• Graphics: Intel Iris Xe Graphics (80 EUs)
• Memory: 2x DDR4 SODIMM slots, up to 64 GB (not included)
• Storage: 2x M.2 2280 PCIe 4.0 slots, 1x 2.5" SATA III bay (not included)
• Networking: Wi-Fi 6, Bluetooth 5.2, 2x 2.5 Gigabit Ethernet

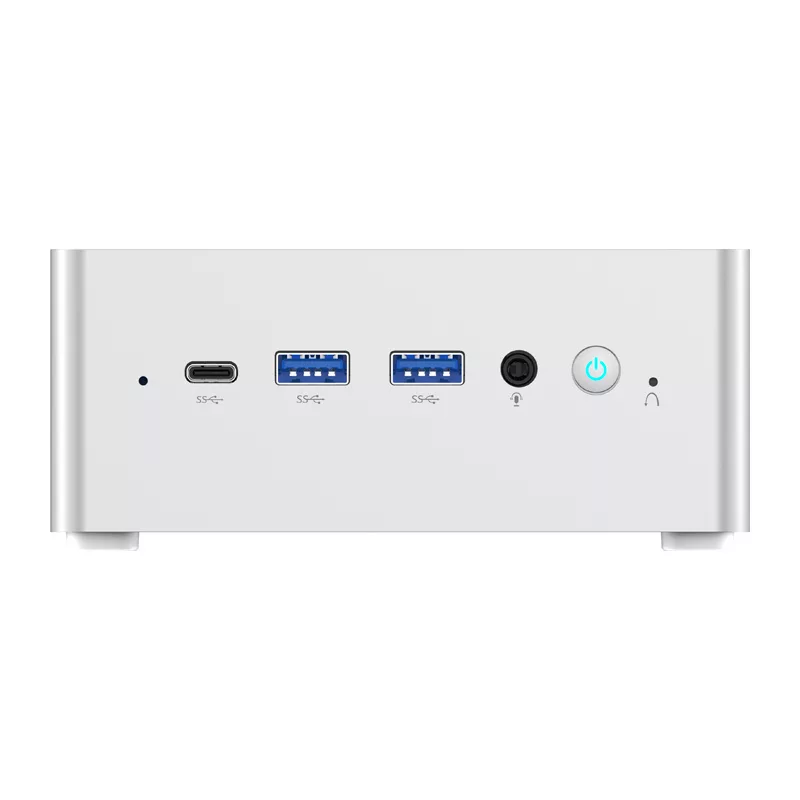

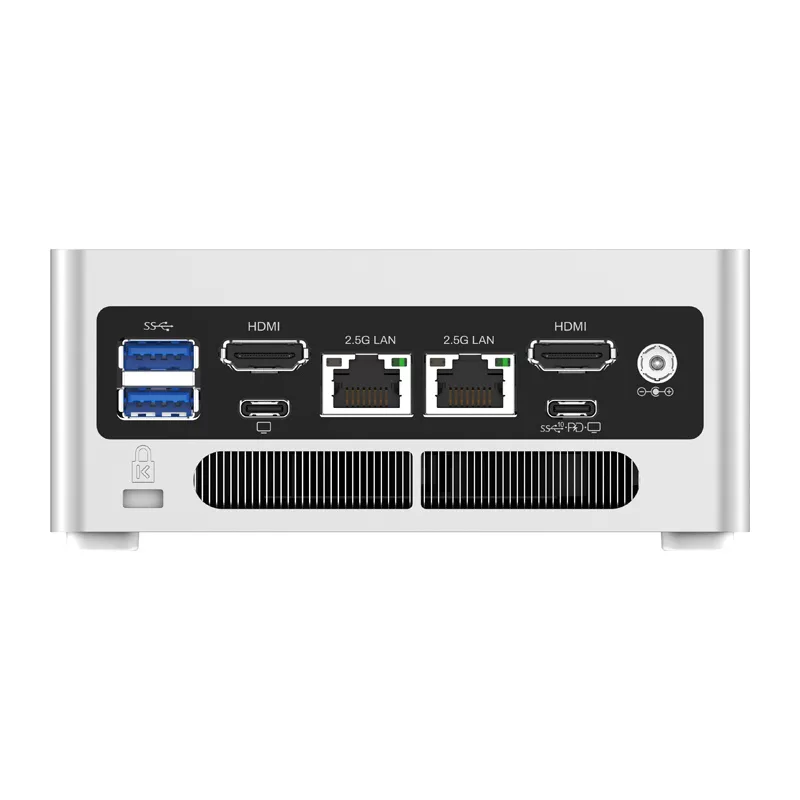

• Ports: 4x USB 3.2 Gen2 Type-A, 1x USB-C (Data/DP Alt Mode), 2x HDMI 2.0, 3.5mm audio combo
• Power: 120W DC adapter (19V/6.32A)
• Operating System: Not included (Barebone)

Recommendations

For optimal performance, pair this mini PC with DDR4-3200MHz RAM and a fast NVMe SSD. It is compatible with Windows 11, Linux, and other operating systems.
