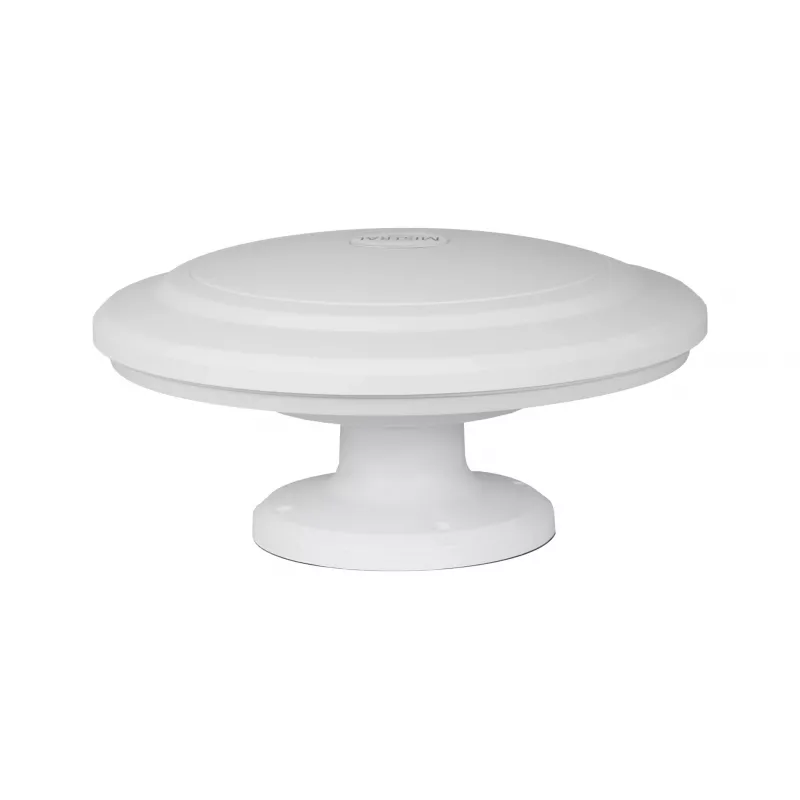

Mistral MI-ANT04 UFO antenne - strong white

The Mistral MI-ANT04 UFO antenna is a high-performance DVB-T/T2 digital terrestrial antenna designed for both indoor and outdoor use. Its omnidirectional UFO design ensures 360° reception, making it ideal for capturing TV signals from multiple directions without the need for precise alignment. With a maximum gain of 28 dB and a built-in amplifier, this antenna delivers strong, clear signals even in challenging reception areas. The integrated LTE/4G filter minimizes interference from mobile networks, ensuring stable TV reception. The antenna is UV-resistant and has an IPX4 waterproof rating, making it suitable for outdoor mounting on walls, poles, or balconies. It comes with a 5-meter coaxial cable and supports both 5V (via USB or receiver) and 12V (via adapter) power supply.

Advantages

Omnidirectional 360° reception eliminates the need for aiming. High 28 dB gain with built-in amplifier for weak signal areas. LTE/4G filter reduces interference. Durable IPX4 waterproof and UV-resistant design for outdoor use. Easy mounting options for wall, pole, or balcony.

Suitable for

• Digital terrestrial TV reception (DVB-T/T2)
• Indoor and outdoor installations
• Areas with weak or multi-directional TV signals
• Users needing a robust, weather-resistant antenna

Key specifications

• Antenna Type: DVB-T/T2 Digital Terrestrial
• Design: UFO Omnidirectional
• Frequency Range: VHF 174-230 MHz, UHF 470-694 MHz
• Max Gain: 28 dB
• Built-in Amplifier: Yes
• Noise Figure: < 3 dB
• Impedance: 75 Ohm
• LTE/4G Filter: Yes
• Polarization: Horizontal and Vertical
• Power Supply: 5V (USB/Receiver) or 12V (Adapter)
• Connector Type: F-Type
• Color: Strong White
• Mounting: Wall, Pole, Balcony
• Waterproof Rating: IPX4
• UV Resistance: Yes
• Reception Angle: 360°
• Cable Length: 5 meters
• Power Consumption: < 3W

Recommendations

For optimal performance, mount the antenna outdoors at a height with clear line of sight to the broadcast towers. Use a high-quality coaxial cable and ensure proper grounding. If using indoors, place near a window or in an attic for best results.
