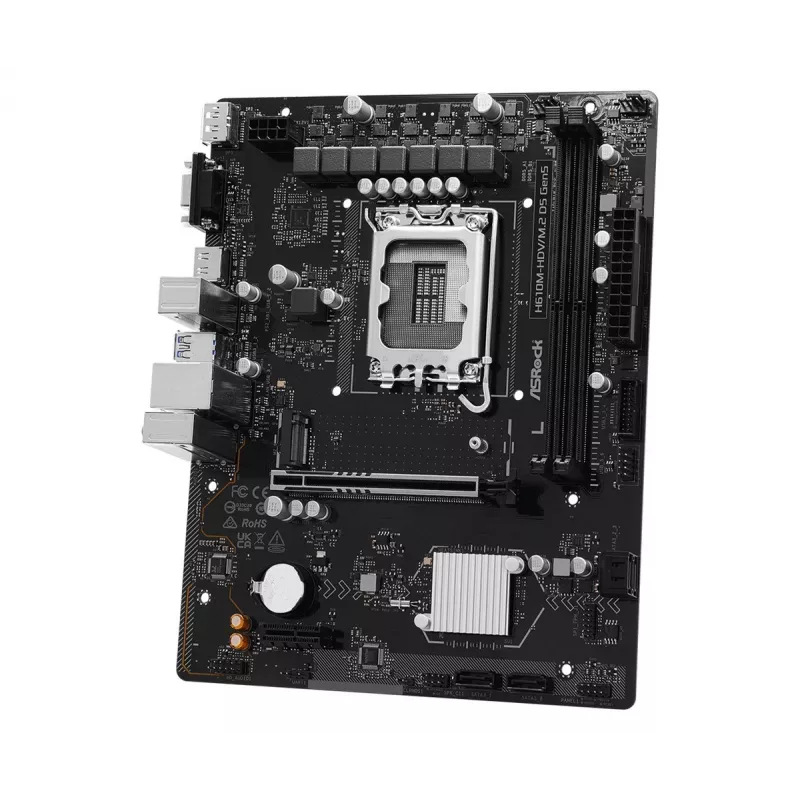

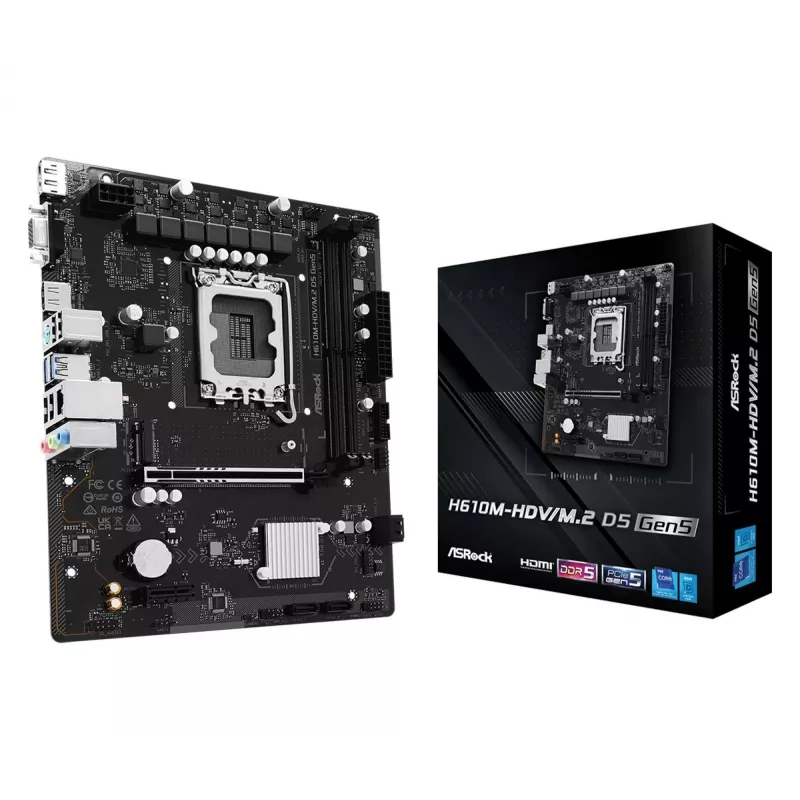

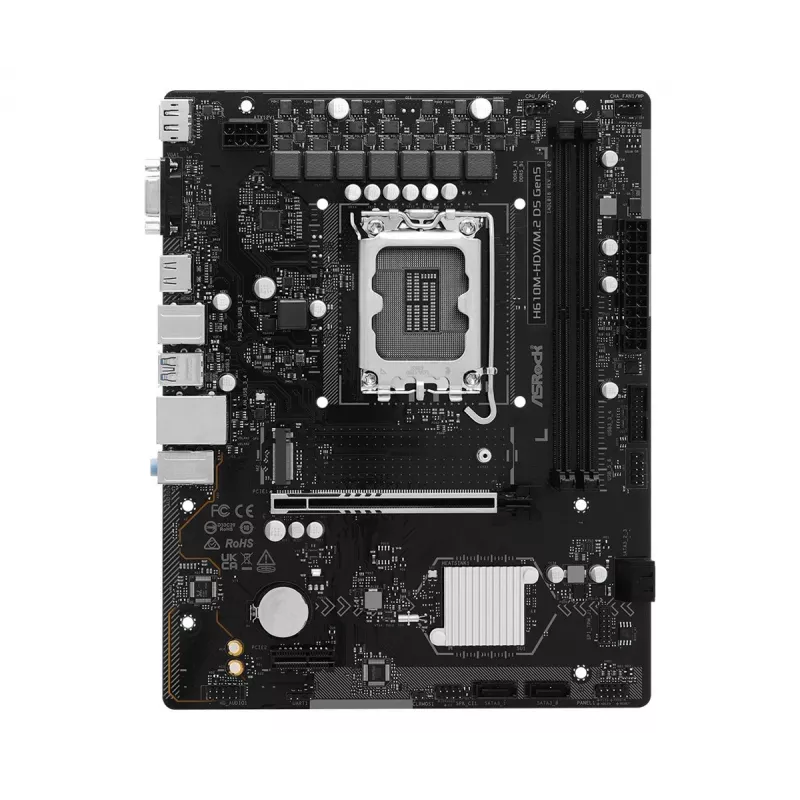

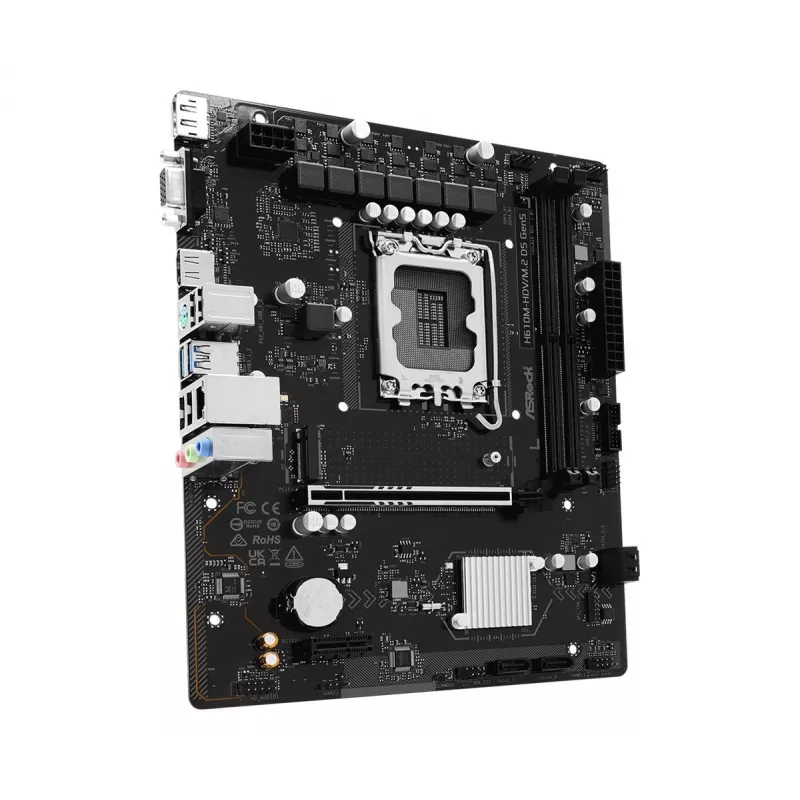

Moederbord ASRock H610M-HDV/M.2 D5 Gen5 (LGA1700, mATX, DDR5, PCIe 5.0)

ASRock H610M-HDV/M.2 D5 Gen5 is a micro-ATX motherboard with an LGA1700 socket designed for Intel 12th and 13th generation processors. The board supports DDR5 memory and offers PCIe 5.0 compatibility for modern add-in cards, while providing M.2 storage support in a compact mATX form factor suitable for small desktops, home offices, and compact gaming systems. The layout balances essential connectivity and upgrade paths with a space-saving footprint.

Advantages

The motherboard combines support for DDR5 memory and PCIe 5.0 with a micro-ATX design, enabling improved memory bandwidth and future-proof expansion while fitting into smaller chassis. Integrated M.2 storage support reduces cable clutter and accelerates system responsiveness. The LGA1700 socket ensures compatibility with a wide range of Intel processors from the 12th and 13th generations, making it practical for upgrades without requiring a larger ATX board.

Suitable for

• Compact desktop builds for home or office use
• Small form-factor gaming systems that use DDR5 memory
• Budget-conscious upgrades to DDR5 platforms
• Systems requiring M.2 NVMe storage for fast boot and load times

Key specifications

• Form factor: micro-ATX (mATX)
• CPU socket: LGA1700, compatible with Intel 12th/13th generation processors
• Memory: DDR5 support (dual-channel, DIMM slots for DDR5 modules)
• Expansion slots: PCIe 5.0-capable slot(s) for next-generation graphics and add-in cards
• Storage interfaces: M.2 slot(s) for NVMe SSDs and SATA ports for traditional drives

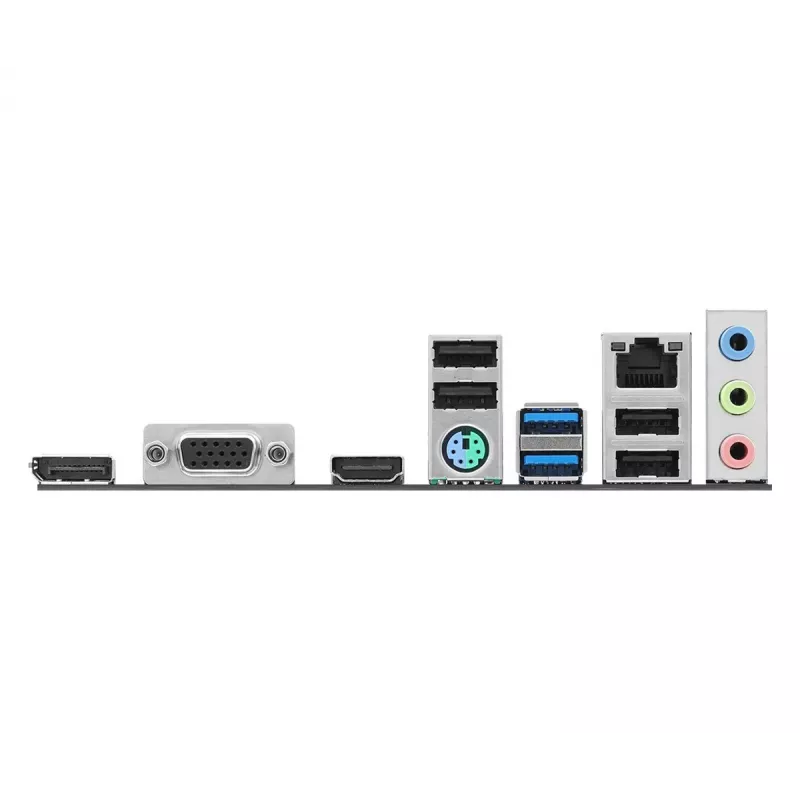

• Onboard connectivity: standard rear I/O ports and internal headers for peripherals
• Compact layout designed for small chassis installations

How to use

Install a compatible LGA1700 CPU following the processor and motherboard manufacturer guidelines, insert DDR5 memory modules into the DIMM slots, and secure the board into a micro-ATX case using standard standoffs. Connect an M.2 NVMe SSD to the dedicated M.2 slot for primary storage or add SATA drives to available ports. Install a PCIe 5.0-capable graphics card or other expansion cards into the appropriate slot if required. Attach power supply connectors, front-panel connectors, and peripheral cables before powering on and configuring BIOS/UEFI settings to recognize installed components.

Recommendations

Use validated DDR5 modules listed in the motherboard documentation for best compatibility and update the motherboard BIOS/UEFI to the latest version before first use to ensure optimal support for newer CPUs and memory. For compact builds, manage airflow and cable routing to maintain thermals, and prioritize installing an M.2 NVMe drive as the system volume for faster boot and application load times.
