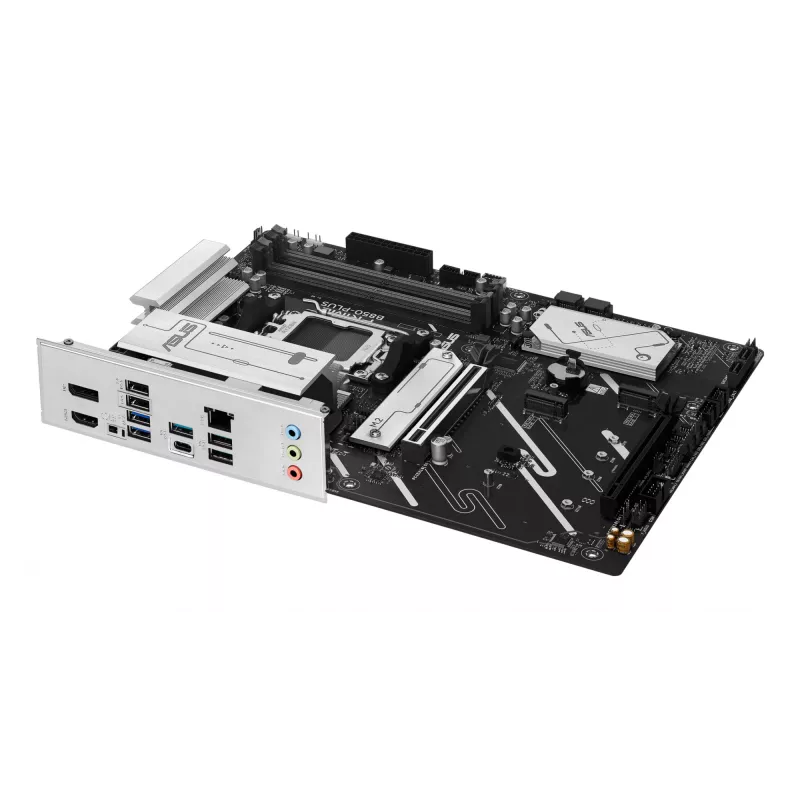

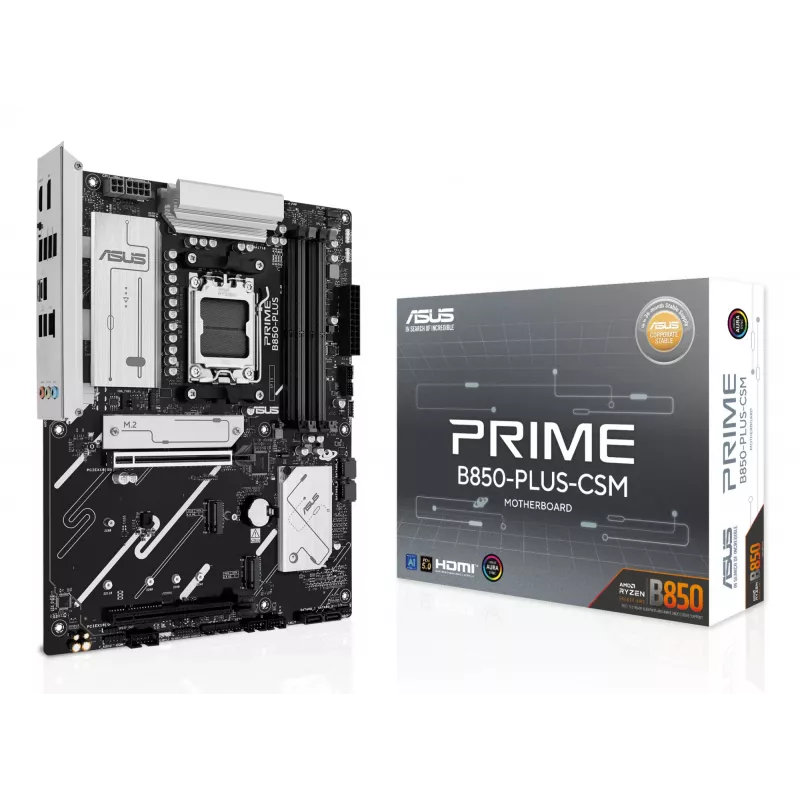

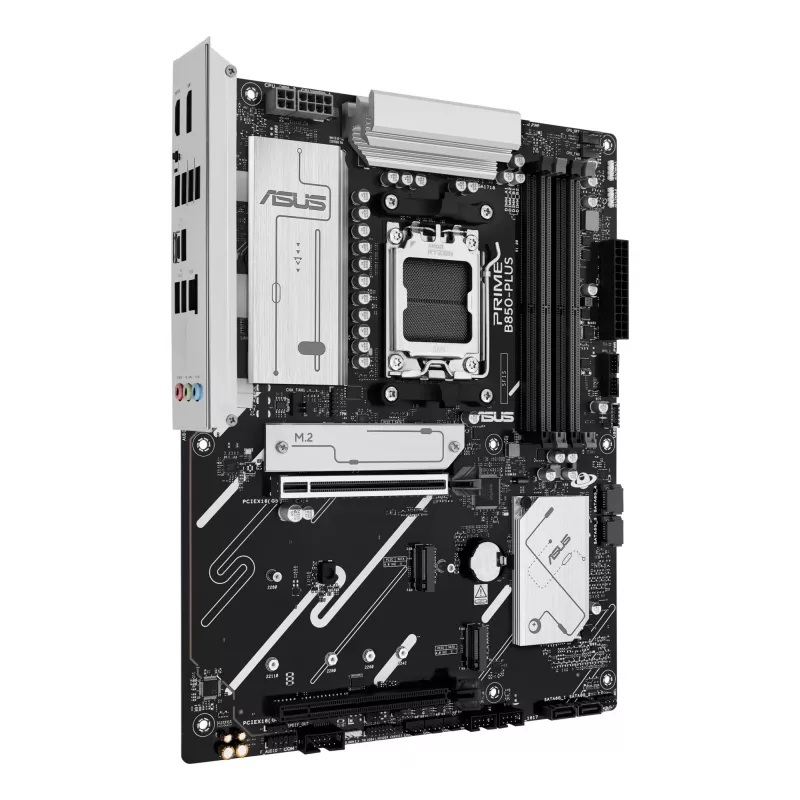

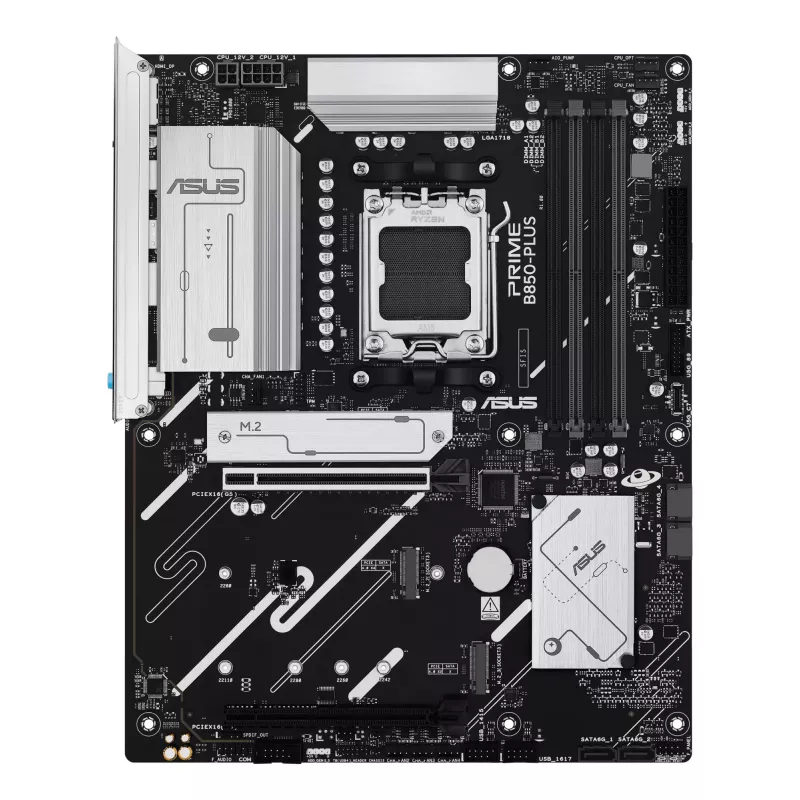

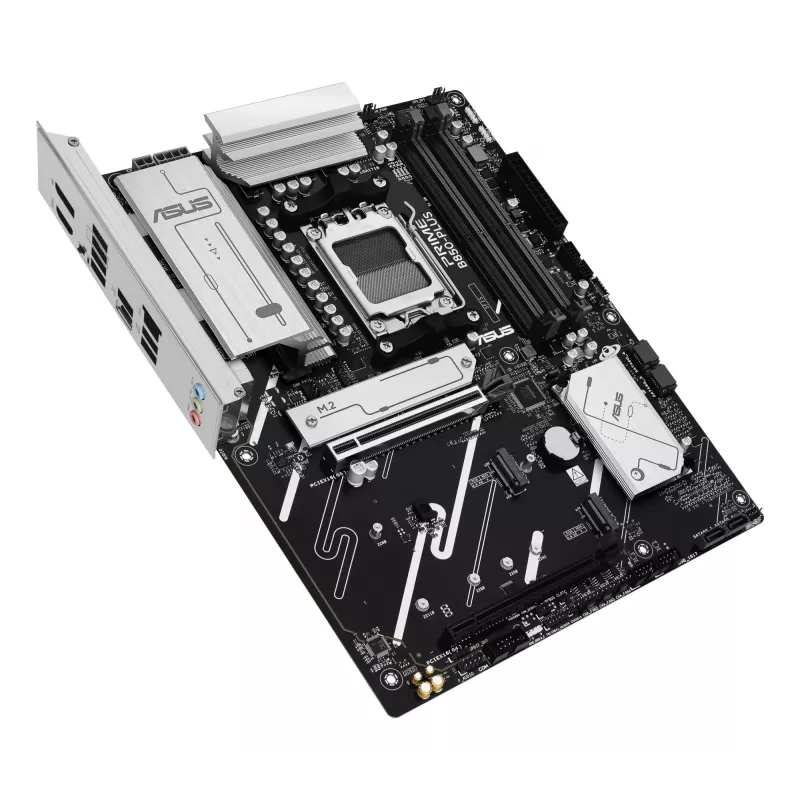

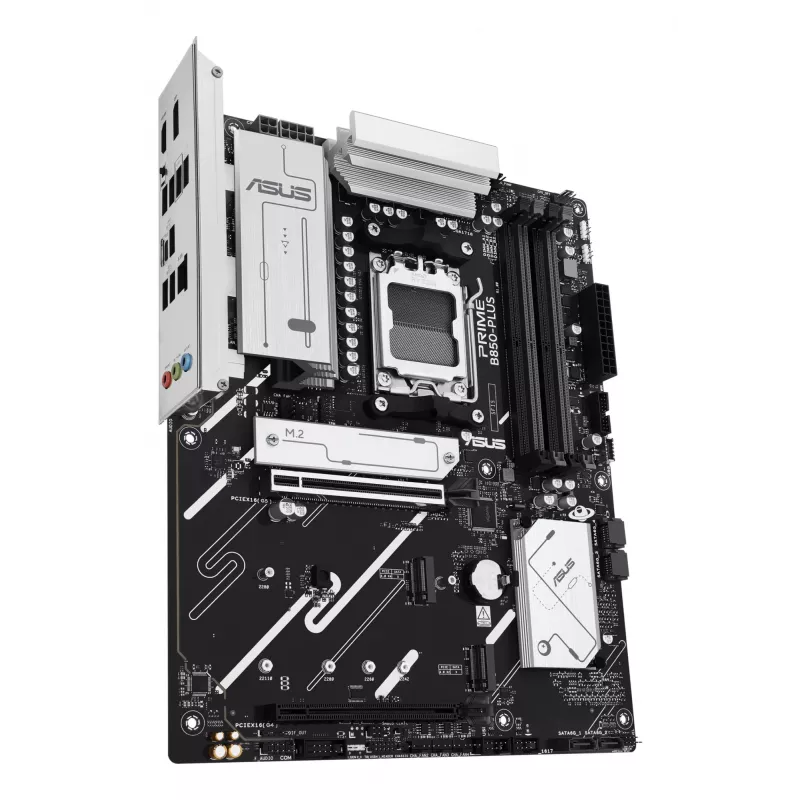

Moederbord ASUS PRIME B850-PLUS-CSM AMD B850 socket AM5 ATX

The ASUS PRIME B850-PLUS-CSM is an ATX motherboard based on the AMD B850 chipset with Socket AM5, engineered to support AMD Ryzen 7000, 8000 and 9000 series processors. It accommodates up to 256 GB of DDR5 memory across four DIMM slots and provides multiple storage options including M.2 and SATA III with RAID 0/1/5/10 support. The board includes USB Type-A and Type-C ports, 2.5 Gigabit Ethernet connectivity and a feature set aimed at delivering balanced performance and expandability for workstation and commercial builds, including readiness for Advanced AI PC workloads.

Advantages

The PRIME B850-PLUS-CSM combines modern connectivity and storage flexibility with an AM5 platform: DDR5 memory support for higher bandwidth, M.2 and SATA III interfaces for NVMe and SATA drives, and RAID capability for data protection or performance. Integrated 2.5 GbE networking and a mix of USB Type-A and Type-C ports provide versatile I/O for peripherals and high-speed networking. Firmware and software tools included with the ASUS Prime series enable accessible system tuning and management for both builders and IT administrators.

Suitable for

• Desktop workstation builds requiring AM5 compatibility and DDR5 memory
• Small business or commercial systems that need reliable networking and manageability
• PC DIY enthusiasts upgrading to Ryzen 7000/8000/9000 series CPUs
• Systems that use NVMe and SATA storage with RAID configurations

Key specifications

• Form factor: ATX
• Chipset: AMD B850
• CPU socket: Socket AM5 (supports AMD Ryzen 7000/8000/9000 series)
• Memory: 4 x DIMM DDR5, up to 256 GB
• Storage interfaces: M.2 and SATA III; RAID 0, 1, 5, 10 supported
• Networking: 2.5 Gigabit Ethernet
• I/O: USB Type-A and USB Type-C ports

How to use

Install the ASUS PRIME B850-PLUS-CSM into a compatible ATX chassis, seat an AM5-compatible Ryzen processor into the Socket AM5, and populate DDR5 DIMMs across the DIMM slots following the motherboard manual for optimal channel configuration. Connect storage devices to M.2 sockets or SATA III ports and configure RAID arrays in the BIOS if required. Attach power connectors from a suitable PSU, connect front-panel and peripheral cables, then enter the UEFI/BIOS to set boot order, memory profiles and enable any firmware features needed for system management or AI-related workloads.

Recommendations

For stable operation, use DDR5 modules listed on the ASUS support memory QVL, install the latest BIOS before deploying in production, and pair the board with a quality power supply that meets the processor TDP and system component requirements.
