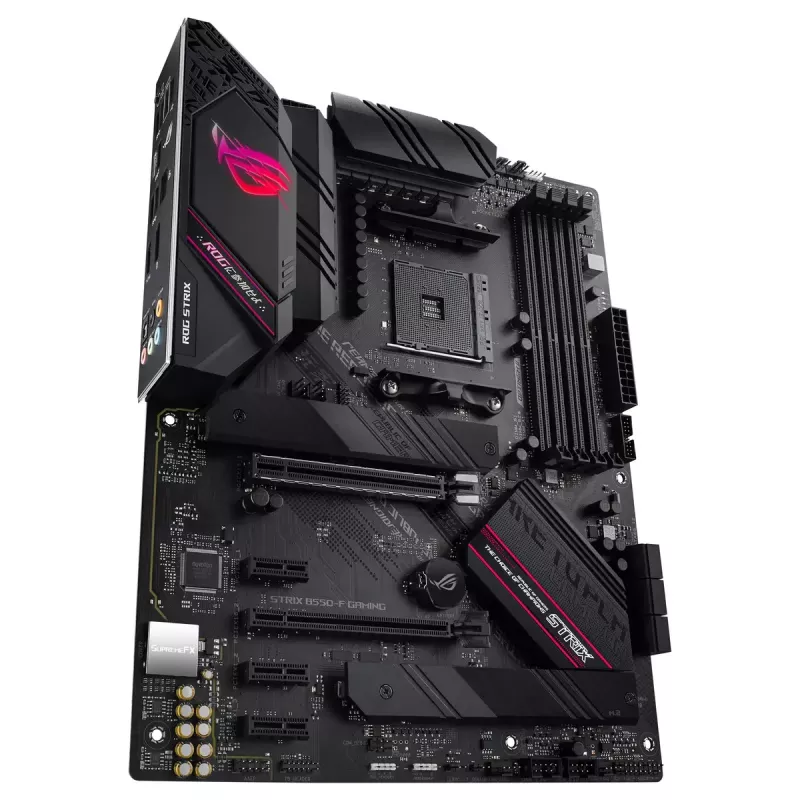

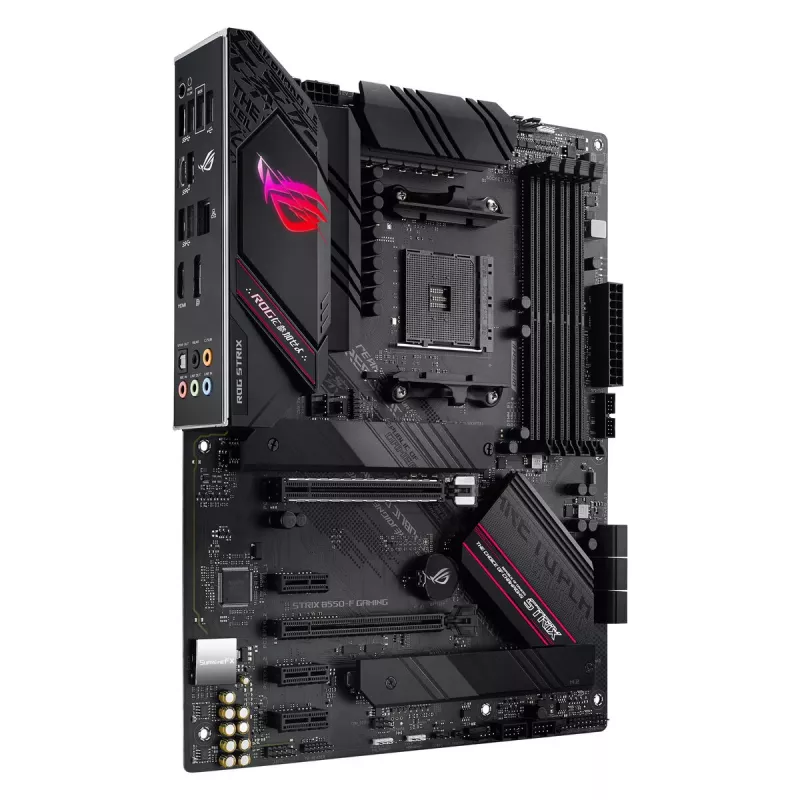

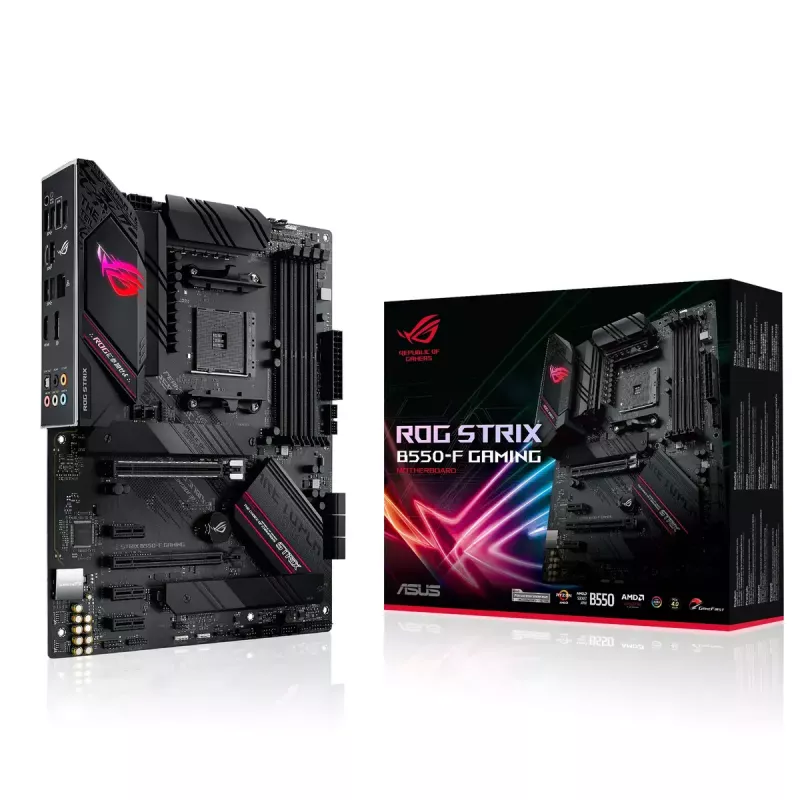

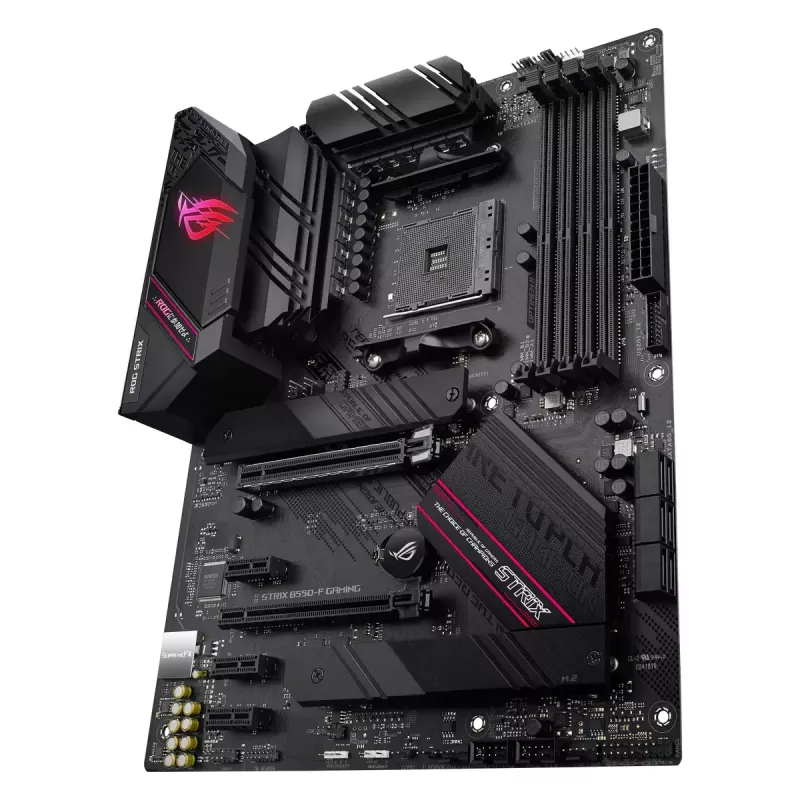

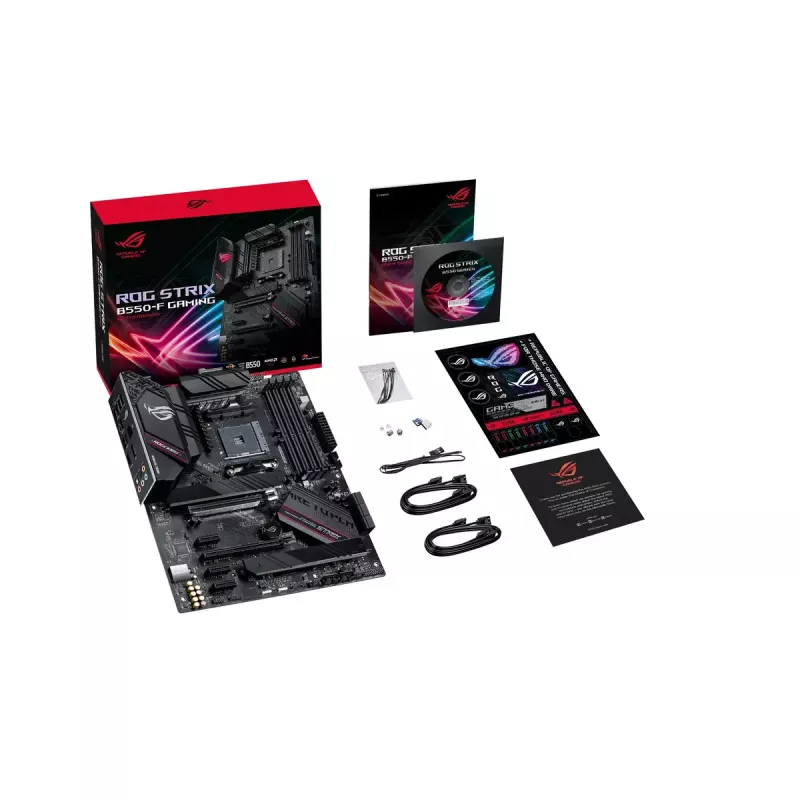

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

36 mnd.

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

0 reviews • Review schrijven

158,10 €

Je ontvangt +0,56 €

Advance Your Gaming ImmersionROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely imme... Lees meer

Aantal

In winkelwagen

Op verlanglijst Vergelijk dit product

Voorraad 3 Code 32032 Merk ASUS Model 90MB14S0-M0EAY0 Garantie 3 jaar

Bezorging & retourneren

Verwachte bezorgdatum dinsdag, oktober 20

Je blijft op de hoogte via ons uitgebreide trackingsysteem

Betaalopties

BetaalkaartVisaMastercardPayPalApple PayGoogle PayBankoverschrijving

ASRock moederbord A520M-HDV AM4 AMD A520 2 x DDR4 USB 3.2 SATA 3 7.1ch HD audio mATX

Snel bekijken

ASRock moederbord A520M-HDV AM4 AMD A520 2 x DDR4 USB 3.2 SATA 3 7.1ch HD audio mATX

60,85 €

Excl. btw:50,29 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX

Snel bekijken

ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX

84,38 €

Excl. btw:69,74 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord GIGABYTE B550I AORUS PRO AX, B550, AM4, Mini-ITX

Snel bekijken

Moederbord GIGABYTE B550I AORUS PRO AX, B550, AM4, Mini-ITX

169,87 €

Excl. btw:140,39 €

In winkelwagen Op verlanglijst Vergelijk dit product

MSI MAG B760 TOMAHAWK WIFI moederbord LGA 1700 ATX

Snel bekijken

MSI MAG B760 TOMAHAWK WIFI moederbord LGA 1700 ATX

187,72 €

Excl. btw:155,14 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord GIGABYTE B650 EAGLE ATX, AMD B650-chipset, socket AM5, DDR5, 4x DIMM, 3x M.2, PCIe 5.0 x16

Snel bekijken

Moederbord GIGABYTE B650 EAGLE ATX, AMD B650-chipset, socket AM5, DDR5, 4x DIMM, 3x M.2, PCIe 5.0 x16

134,26 €

Excl. btw:110,96 €

In winkelwagen Op verlanglijst Vergelijk dit product

MSI MEG Z890 ACE moederbord Intel Z890 LGA 1851 (Socket V1) ATX

Snel bekijken

MSI MEG Z890 ACE moederbord Intel Z890 LGA 1851 (Socket V1) ATX

680,04 €

Excl. btw:562,02 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock B850 Pro-A AM5 ATX moederbord

Snel bekijken

ASRock B850 Pro-A AM5 ATX moederbord

156,95 €

Excl. btw:129,71 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock B860I WiFi Mini-ITX moederbord

Snel bekijken

ASRock B860I WiFi Mini-ITX moederbord

163,20 €

Excl. btw:134,88 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock B650M PG Lightning AM5 Micro-ATX moederbord

Snel bekijken

ASRock B650M PG Lightning AM5 Micro-ATX moederbord

128,94 €

Excl. btw:106,56 €

In winkelwagen Op verlanglijst Vergelijk dit product

GIGABYTE B760M DS3H GEN5 moederbord - ondersteunt Intel Core 14e gen CPU's, 6+2+1 fasen digitale VRM, tot 5600MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2

Snel bekijken

GIGABYTE B760M DS3H GEN5 moederbord - ondersteunt Intel Core 14e gen CPU's, 6+2+1 fasen digitale VRM, tot 5600MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2

118,71 €

Excl. btw:98,10 €

In winkelwagen Op verlanglijst Vergelijk dit product

Advance Your Gaming Immersion
ROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.

PCIe 4.0-Ready
ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

All-round Performance
ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.

Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.

UNDENIABLY ROG STRIX
ROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.

ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

Identification

GameFirst VI analyzes your usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps. The database is regularly updated to ensure that apps are recognized.

Boost

GameFirst VI intelligently switches application priority and adjusts bandwidth accordingly, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you supersmooth online gameplay — even when you're streaming high-quality video to your audience or transferring large files.

Visualization

An intuitive graph gives you an overview of the network in real time. Simply click on the tab to view current bandwidth usage of each application, geolocation status of each network connection, and an analysis of each WiFi channel.

How to use

Install the motherboard into an ATX-compatible case and mount a compatible AM4 CPU following the CPU cooler manufacturer’s instructions. Populate DDR4 memory modules across the four DIMM slots according to the manual for dual-channel operation. Connect NVMe M.2 drives and SATA devices to the appropriate sockets and enable RAID in UEFI if required. Attach power connectors from the PSU, install a discrete GPU into the primary PCIe x16 slot if needed, and complete I/O connections. Use the ROG UEFI BIOS or included ASUS utilities to configure boot order, memory profiles (XMP/DOCP), fan curves and network settings.

Recommendations

For best results, use PCIe 4.0 NVMe SSDs in the PCIe 4.0-capable M.2 slot, install matched DDR4 modules for optimal memory performance, and update the UEFI BIOS to the latest version before finalizing OS installation. Refer to the motherboard manual for CPU cooler clearance, M.2 thermal pad placement and recommended radiator/fan configurations to ensure stable cooling under load.

Belangrijkste kenmerken

AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
AMD Socket AM4 AMD Ryzen 3000 Series
PC ATX AMD B550 7.1 channels
DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, SATA III RAID support
2-Way CrossFireX
BIOS type: UEFI AMI 256000 Mbit
2.5 Gigabit Ethernet Bluetooth 5.0

Specificaties

12V-stroomconnector

Yes

Aantal connectors behuizingsventilator

3

Aantal DisplayPorts

1

Aantal DVI-D-poorten

0

Aantal EATX-stroomconnectoren

1

Aantal eSATA-poorten

0

Aantal geheugenslots

4

Aantal HDMI-poorten

1

Aantal M.2 (M)-slots

2

Aantal mSATA-poorten

0

Aantal ondersteunde harde schijven

6

Aantal Parallel ATA-connectors

0

Aantal PS/2-poorten

0

Aantal SATA II-poorten

0

Aantal SATA III-connectors

6

Aantal SATA-poorten

0

Aantal USB 2.0-poorten

2

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-A-poorten

4

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-C-poorten

0

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-A-poorten

1

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-C-poorten

1

Aantal VGA (D-Sub)-poorten

0

Audio-uitvoerkanalen

7.1 channels

BIOS-geheugengrootte

256000 Mbit

Bluetooth

No

Bluetooth-versie

5.0

Breedte

305 mm

Compatibele processorserie

AMD Ryzen 3000 Series

Component voor

PC

CPU-ventilatorconnector

Yes

Diepte

244 mm

DisplayPort-versie

1.2

Drivers inbegrepen

Yes

EPS-stroomconnector (8-pins)

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45)-poorten

1

Firewire (IEEE 1394)-poorten

0

Geharmoniseerd Systeem (HS)-code

84733020

Geïntegreerde videokaart

No

Gewicht

945 g

Handleiding

Yes

HDMI-versie

2.1

Hoogte

68 mm

Kabels inbegrepen

SATA

Koptelefoonuitgangen

1

LAN-controller

Intel I225-V

Maximaal aantal SMP-processors

1

Maximaal intern geheugen

128 GB

Microfooningang

Yes

Moederbordchipset

AMD B550

Moederbordchipsetfamilie

AMD

Ondersteunde geheugenkloksnelheden

2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz

Ondersteunde geheugentypes

DDR4-SDRAM

Ondersteunde interfaces opslagstations

M.2, SATA III

Ondersteunde processorsockets

Socket AM4

Ondersteunde typen opslagstations

HDD & SSD

Ondersteunde Windows-besturingssystemen

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64

Ondersteuning voor parallelle verwerkingstechnologie

2-Way CrossFireX

Pc-statusbewaking

CPU, Fan

PCI Express x1 (Gen 3.x)-slots

3

PCI Express x16 (Gen 3.x)-slots

1

PCI Express x16 (Gen 4.x)-slots

1

PCI-slots

7

Processormerk

AMD

Processorsocket

Socket AM4

Productkleur

Black

RAID-niveaus

0, 1, 10

RAID-ondersteuning

Yes

S/PDIF-uitgang

Yes

Thunderbolt-headers

1

Type BIOS

UEFI AMI

Type ethernetinterface

2.5 Gigabit Ethernet

Type geheugenslots

DIMM

Type koeling

Active

Type stroombron

ATX

USB 2.0-connectors

2

USB 3.2 Gen 1 (3.1 Gen 1)-connectors

1

USB 3.2 Gen 2 (3.1 Gen 2)-connectors

1

Versie PCI Express-slots

3.0, 4.0

Vormfactor moederbord

ATX

Wake-on-LAN-gereed

Yes

Wifi

No

Handleiding

Document openen

Folder

Document openen

Prijsverloop van de afgelopen 6 maanden

Moederbord ASUS ROG STRIX B550-F GAMING AMD B550 socket AM4 ATX

Actueel

158,10 €

Laagste

151,06 €

Hoogste

188,38 €

Wijziging 24 uur

-0,32 € 0%

Week

-1,08 € -1%

Maand

+0,66 € +0%

Onafhankelijke reviews van techmedia

techteamgb.co.ukAndrew2020-06-29

8.6/10

“These Asus B550 boards, the STRIX F and TUF PLUS are both pretty impressive, well built boards that, much like most B550 boards are pretty expensive, but they supposedly offer a rather unique feature, so lets take a look and see if they are worth it…”

Lees de volledige review op techteamgb.co.uk →

eteknix.comPeter2020-06-16

Eindoordeel: A master class in motherboard design, one of the best looking and performing options for the B550 launch, but you will pay a premium for it.

Lees de volledige review op eteknix.com →
