Moederbord GIGABYTE X870M AORUS ELITE WIFI7, AMD X870, socket AM5, ATX

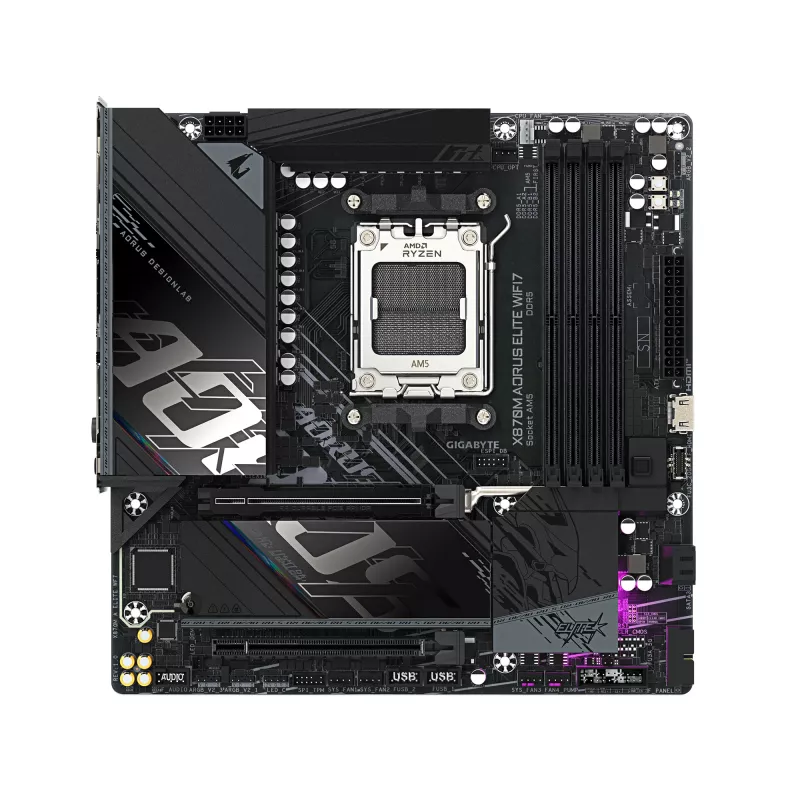

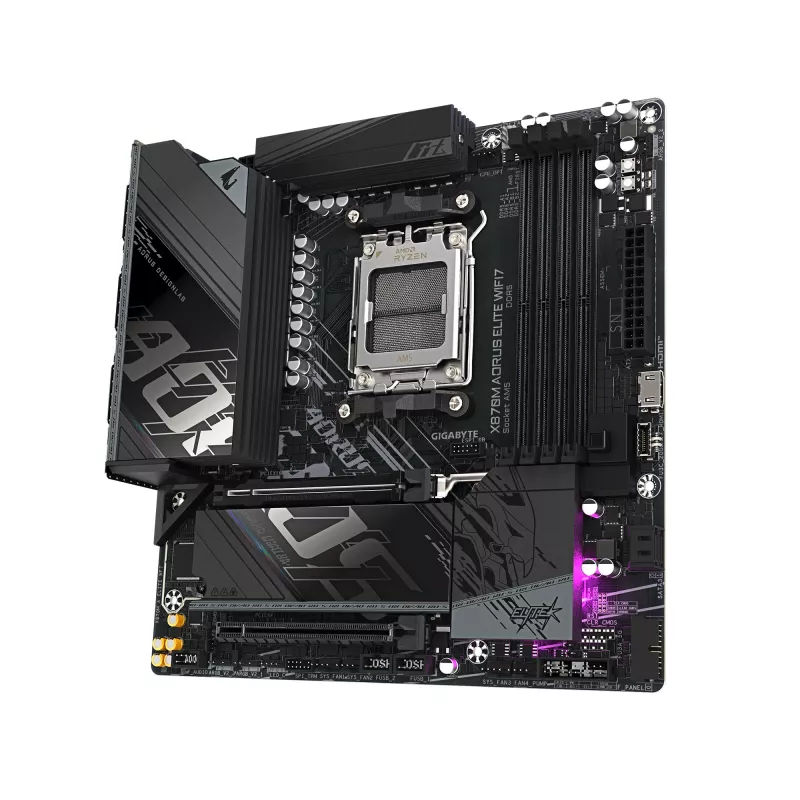

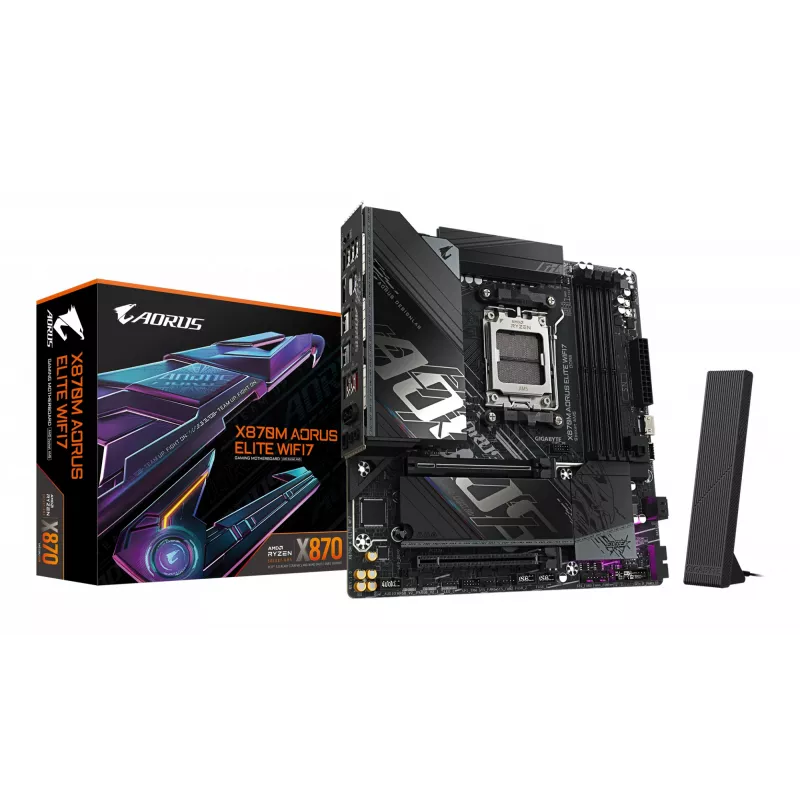

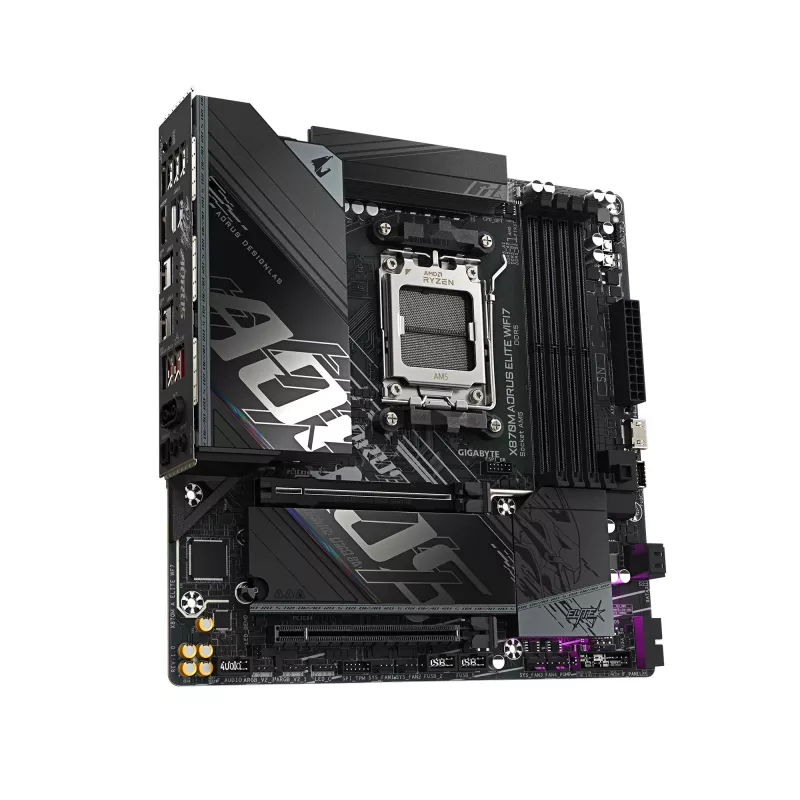

The GIGABYTE X870M AORUS ELITE WIFI7 is a Micro ATX motherboard built on the AMD X870 chipset for Socket AM5. It supports AMD Ryzen 7000, 8000 and 9000 series processors and up to 256 GB DDR5 memory across four DIMM slots. The board includes a 14+2+2 digital twin phase VRM, PCIe 5.0-capable M.2 storage, multiple PCIe expansion options and modern connectivity such as Wi‑Fi 7, dual USB4 Type‑C and 2.5 GbE LAN to meet the needs of gaming, content creation and high-performance computing.

Advantages

The X870M AORUS ELITE WIFI7 combines a high‑quality power delivery design with support for DDR5 memory overclocking up to 8200 MT/s (OC) and X3D Turbo Mode for improved gaming performance. It offers fast storage with PCIe 5.0 M.2 support, convenient installation features like EZ‑Latch and WIFI EZ‑Plug, and a wide set of I/O options including Wi‑Fi 7 and dual USB4 Type‑C ports with DisplayPort Alternate Mode.

Suitable for

• High‑refresh gaming systems using AMD Ryzen 7000/8000/9000 CPUs
• Content creation and video editing workstations that require fast storage and memory
• Compact ATX builds where Micro ATX form factor and strong connectivity are needed
• Users who need modern networking: Wi‑Fi 7 and 2.5 GbE LAN

Key specifications

• Form factor: Micro ATX
• Chipset: AMD X870
• Socket: AM5 (supports AMD Ryzen 7000 / 8000 / 9000 Series)
• VRM: Digital twin 14+2+2 phases
• Memory: 4 × DDR5 DIMM slots, up to 256 GB, DDR5 OC up to 8200 MT/s (OC), AMD EXPO support
• Storage: 2 × M.2 slots (one supports PCIe 5.0 x4), SATA III, up to 4 storage drives supported, RAID support
• Expansion: PCIe slots with EZ‑Latch quick release and screwless design
• Networking: 2.5 GbE LAN, Wi‑Fi 7 (802.11be), Bluetooth 5.4

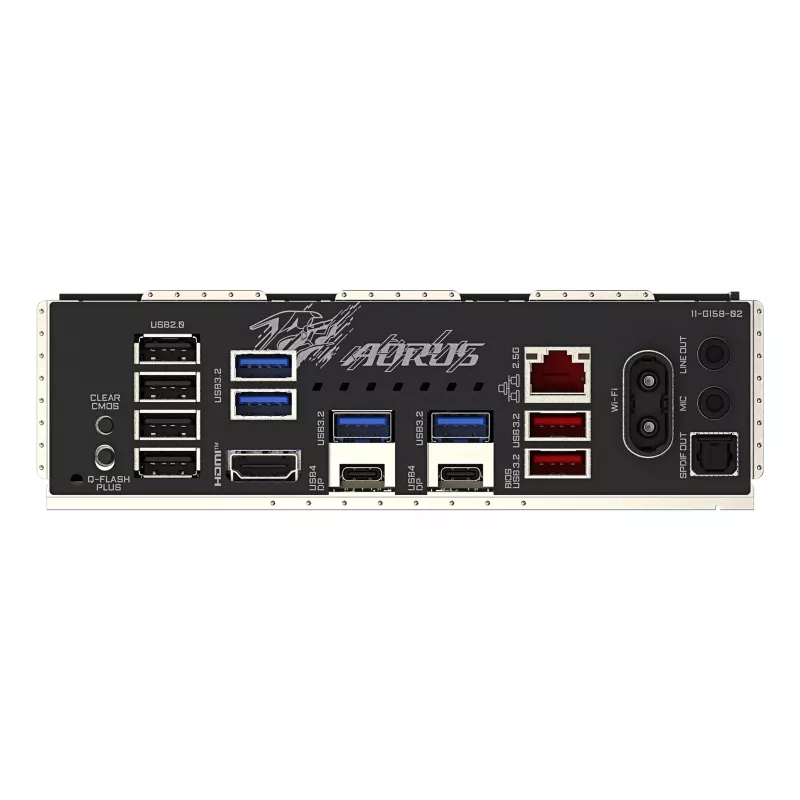

• Rear I/O: Dual USB4 Type‑C with DP‑Alt, HDMI
• Audio: Realtek ALC1220‑VB 7.1 channels
• BIOS: UEFI AMI 256 Mbit, ACPI version 5.0, Clear CMOS jumper and button

How to use

Install the motherboard in a compatible Micro ATX or larger case and secure it to standoffs. Fit an AM5 CPU and compatible AMD Ryzen cooler, then install DDR5 memory modules in matched DIMM slots following the motherboard manual for dual‑channel operation. Connect storage devices to the M.2 slots and SATA ports as required, and install expansion cards with the EZ‑Latch mechanism for tool‑free assistance. Attach the Wi‑Fi antenna using the WIFI EZ‑Plug, connect power cables from the PSU, then configure BIOS/UEFI settings to detect storage, set memory profiles (AMD EXPO) and enable X3D Turbo Mode or DDR5 overclocking if desired.

Recommendations

For stable high‑performance operation, use a quality power supply and a compatible AM5 cooler. When enabling DDR5 overclocking or X3D Turbo Mode, update to the latest BIOS version and test stability progressively. Ensure adequate case airflow for sustained loads and keep the Wi‑Fi antenna secured with the EZ‑Plug for optimal wireless performance.
