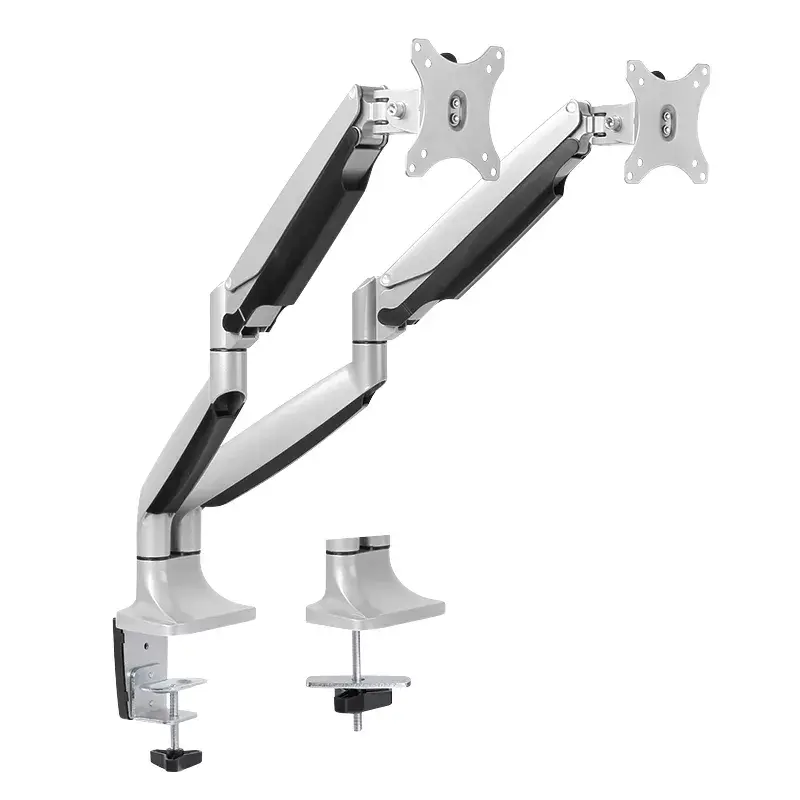

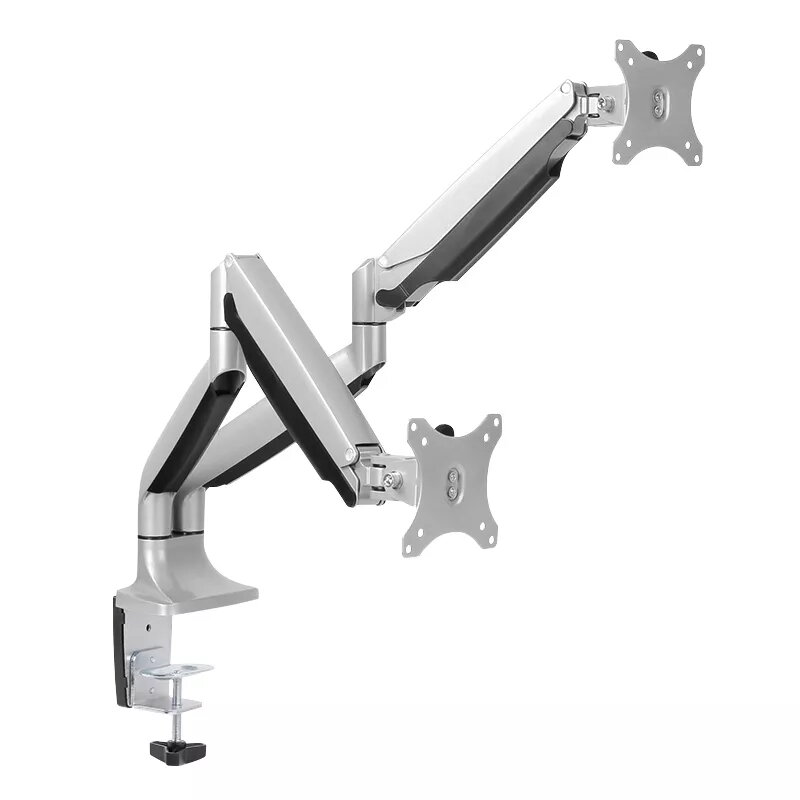

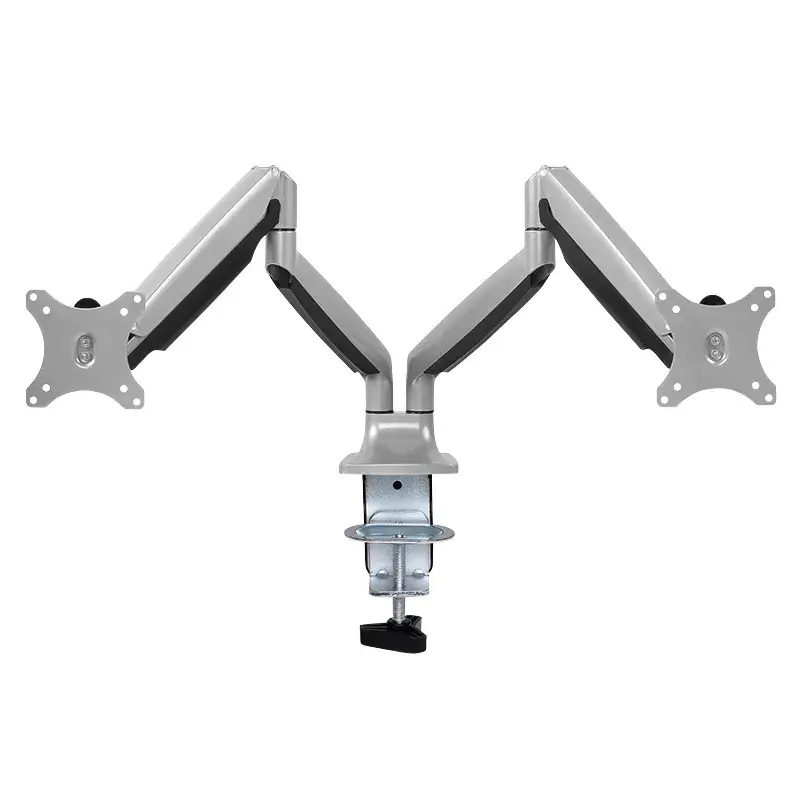

Monitorbeugel LogiLink BP0043

The LogiLink BP0043 monitor mount attaches directly to your desk and holds two screens from 13" to 32" (33–81.3 cm) with a maximum load of 9 kg per arm. The mount is VESA-compatible (75 x 75 and 100 x 100 mm) and features an aluminium design with a gas spring for smooth movement, allowing ergonomic positioning of LCD, LED, PC and TV monitors.

Advantages

The dual-arm design supports two monitors while keeping the desk surface clear. Adjustments for tilt, swivel and level are wide-ranging (–90° to +90°) to provide flexible viewing angles. VESA compatibility and clamp/bolt-through mounting options simplify installation, and the gas spring assists in effortless height and position changes. The aluminium finish offers a modern, durable appearance.

Suitable for (tasks / use cases)

• Home office workstations with two monitors
• Small offices and shared desks where space saving is required
• Multimedia use combining PC and TV screens
• Adjustable ergonomic setups for improved viewing comfort

Key specifications

• Supported screen size: 13–32" (33–81.3 cm)
• Maximum weight capacity: 9 kg per arm
• Number of displays: 2
• VESA compatibility: 75 x 75 mm, 100 x 100 mm
• Mounting type: Clamp or bolt-through
• Adjustment range: Tilt –90°/+90°, Swivel –90°/+90°, Level adjustment –90°/+90°
• Arm length: 525 mm per arm
• Finish: Aluminium; Gas spring assisted

How to use

Clamp or bolt the LogiLink BP0043 mounting base to the edge of a suitable desk according to the included instructions. Attach each monitor to the arm using the compatible VESA holes (75 x 75 or 100 x 100 mm) and secure the fasteners. Use the gas spring and adjustment joints to set height, tilt, swivel and rotation until the screens are at the desired ergonomic positions. Check that each monitor does not exceed the 9 kg maximum load and that cables are routed safely along the arms.

Recommendations

The mount is intended for screens up to 32" and up to 9 kg per arm; ensure the monitor VESA pattern matches 75x75 or 100x100 mm and follow the manufacturer's installation instructions for clamp or bolt-through mounting to guarantee stable operation.
