Montage Axis 01172-001 Bewakingscamera-accessoire

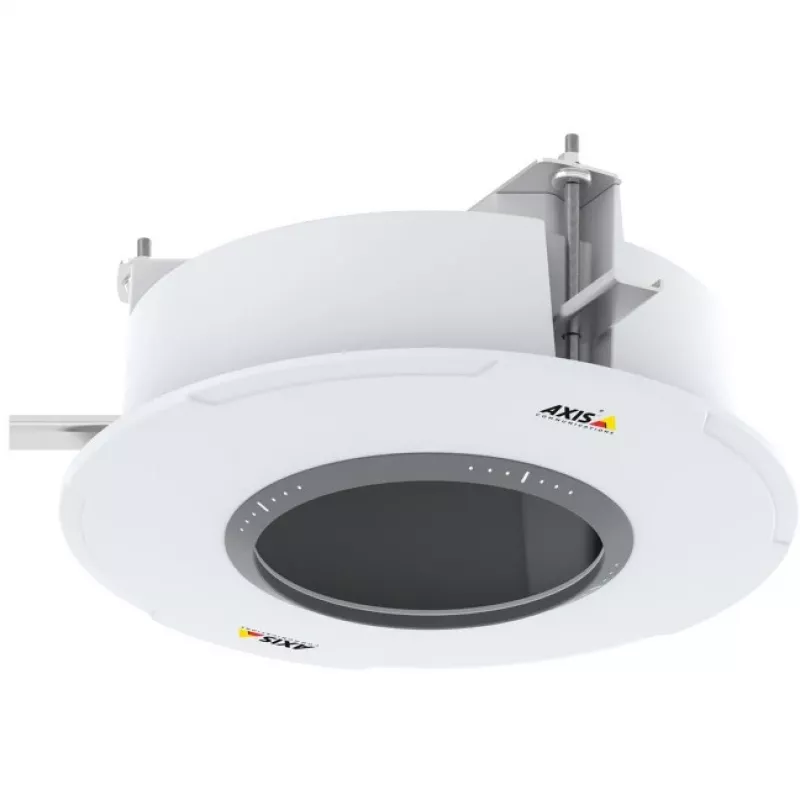

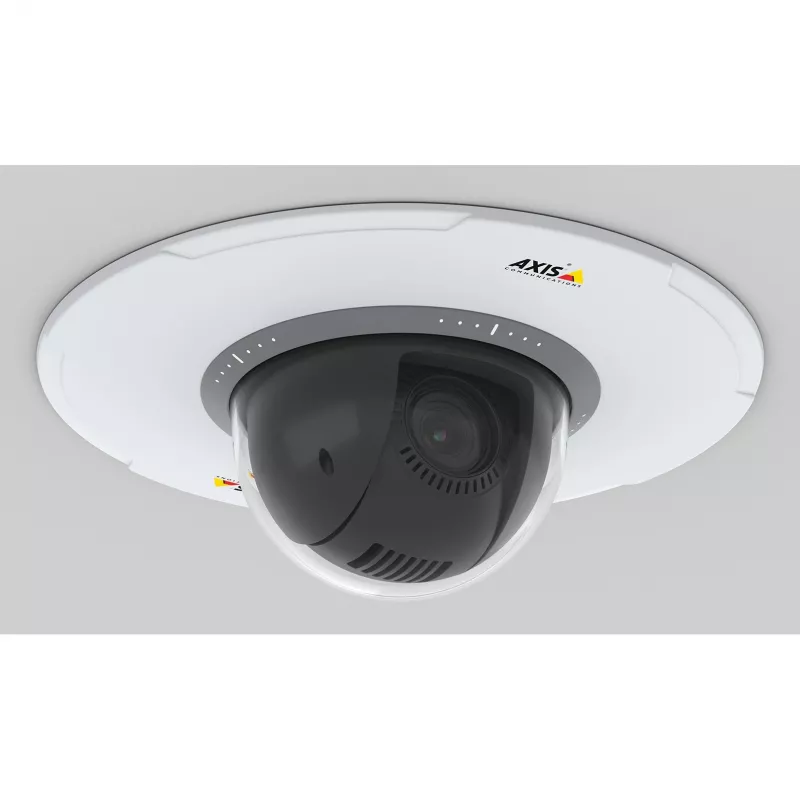

AXIS T94P01L Recessed Mount (Axis 01172-001) is a white recessed ceiling mount designed for use with the AXIS M5525-E PTZ network camera. The mount embeds the camera into the ceiling so only the camera dome and a low-profile cover ring remain visible. The back box is metal and includes a 3/4" (M25) threaded hole to allow protected cable runs in conduits, making it suitable for indoor installations including air-handling spaces.

Advantages

The recessed mount provides a discreet and low-profile installation that reduces visual intrusion while preserving full PTZ functionality of the AXIS M5525-E. Its metal back box and threaded conduit entry ensure robust cable protection and compliance with installations that require protected cable routing. The cover ring is repaintable to match interior finishes.

Suitable for

• Indoor ceiling installations where a flush camera appearance is desired
• Installations requiring protected cable runs through conduit (3/4" / M25)
• Rooms with air-handling requirements where a metal back box is preferred
• AXIS M5525-E PTZ camera deployments in commercial and public buildings

Key specifications

• Model: AXIS T94P01L / Axis 01172-001
• Compatible camera: AXIS M5525-E PTZ Network Camera
• Color: white (repaintable cover ring)
• Back box material: metal
• Cable entry: 3/4" threaded hole (M25) for conduit
• Installation: recessed ceiling mount

How to use

Install the metal back box in the ceiling void following local building and electrical codes. Route camera cabling through conduit into the 3/4" (M25) threaded entry and connect to the AXIS M5525-E according to the camera installation instructions. Secure the camera and attach the low-profile cover ring; the ring can be repainted to match the ceiling finish. Ensure the mount and camera are fixed firmly and that wiring is protected within conduit before completing the ceiling finish.

Recommendations

Use this recessed mount specifically with the AXIS M5525-E camera and ensure conduit-based cable protection is used where required. Verify compatibility with local regulations for installations in air-handling spaces and follow the AXIS camera installation manual for mounting torque and connection details.
