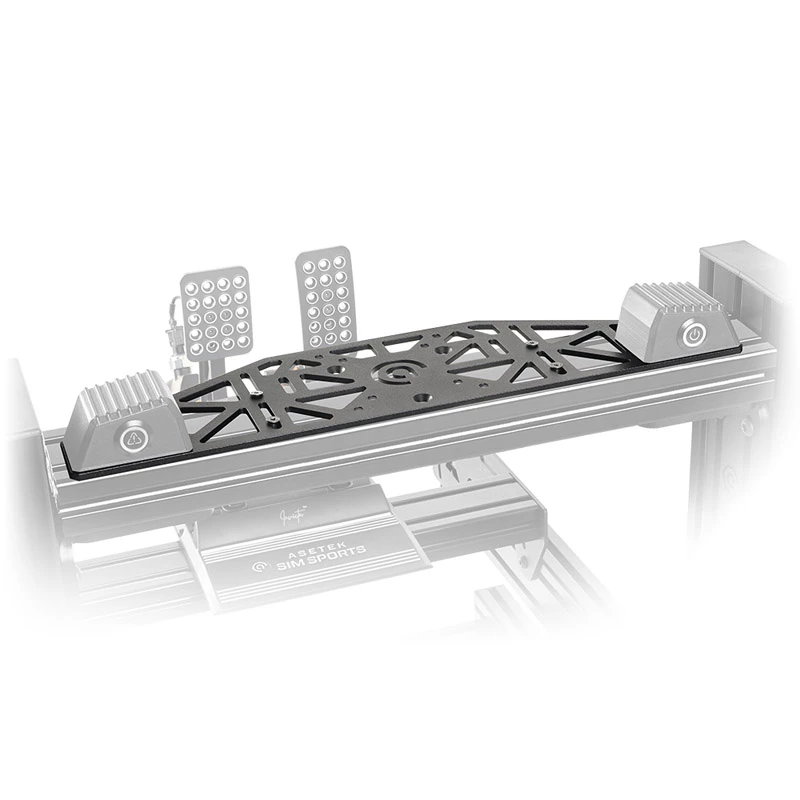

Montagebeugel Asetek SimSports 460×120×5 mm, staal, zwart

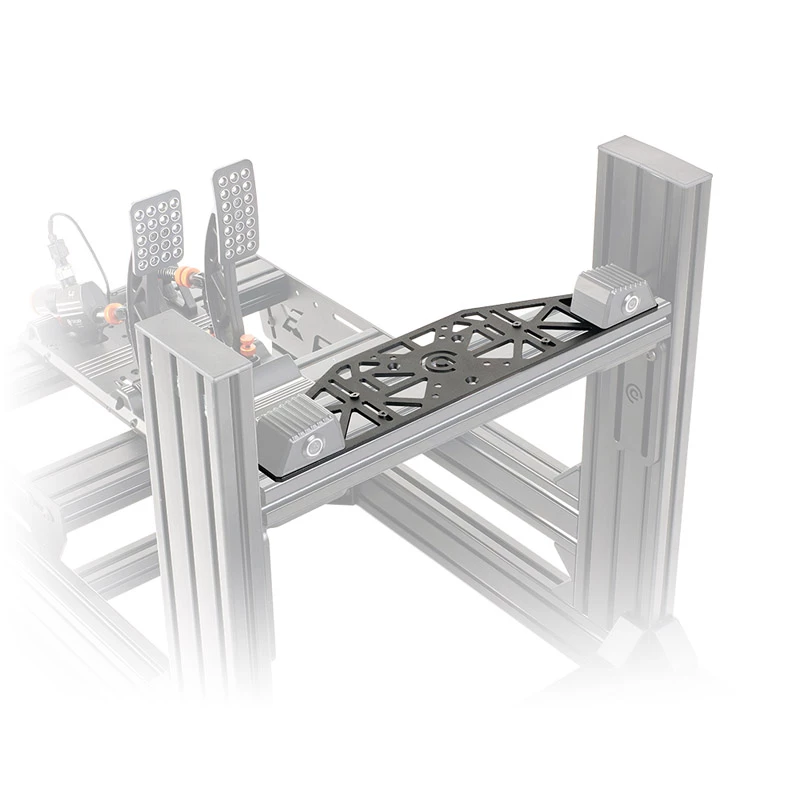

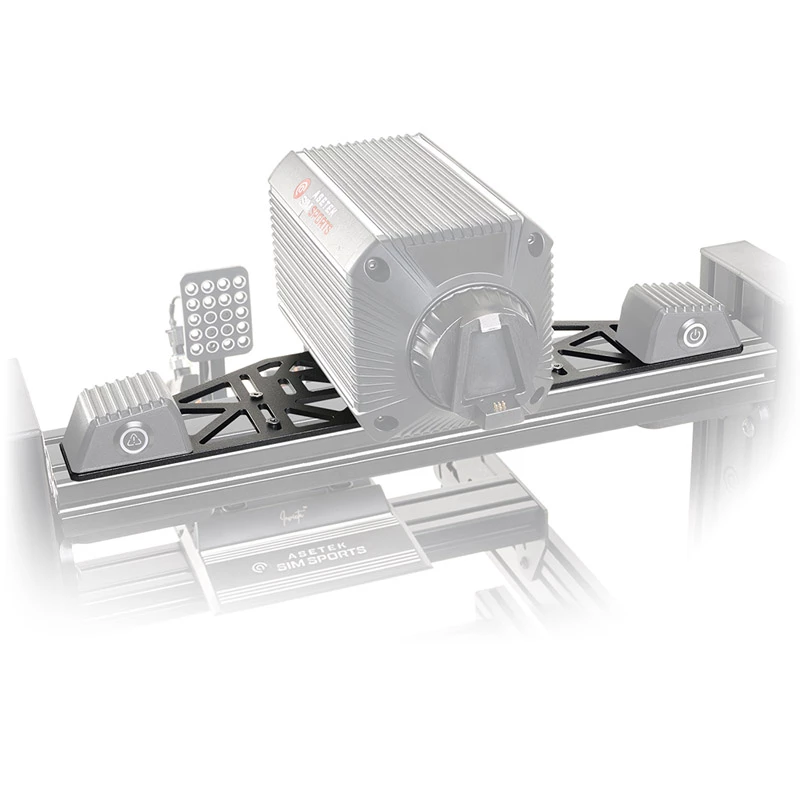

Asetek SimSports mounting bracket, made from steel with a black finish, measures 460 × 120 × 5 mm and is supplied as a single-piece unit. It is designed as a flat, rigid steel bracket to provide a strong attachment point for sim racing rigs, accessories and peripherals. The bracket supports direct mounting of the Asetek SimSports® Direct Drive wheelbase by attaching the wheelbase underside to the bracket and securing the bracket to a flat surface on your table or rig.

Advantages

The steel construction and 5 mm thickness deliver solid rigidity and resistance to flex under load, while the black finish offers corrosion protection and a neutral appearance that integrates with most cockpits. A single-piece design simplifies installation and ensures consistent alignment along the entire 460 mm length. T-slots on the wheelbase interface allow fore-and-aft adjustment of the wheelbase when mounted, enabling precise positioning and improved legroom.

Suitable for

• Mounting Asetek SimSports® Direct Drive wheelbases to a table or sim rig
• Reinforcing sim rig frames or flat surfaces that require added structural support
• Attaching peripherals or hardware that need a rigid, flat mounting platform

Key specifications

• Material: steel
• Finish: black coating
• Dimensions: 460 × 120 × 5 mm (length × width × thickness)
• Supply format: single-piece bracket
• Interface: suitable for wheelbase underside mounting with slotted adjustment

How to use

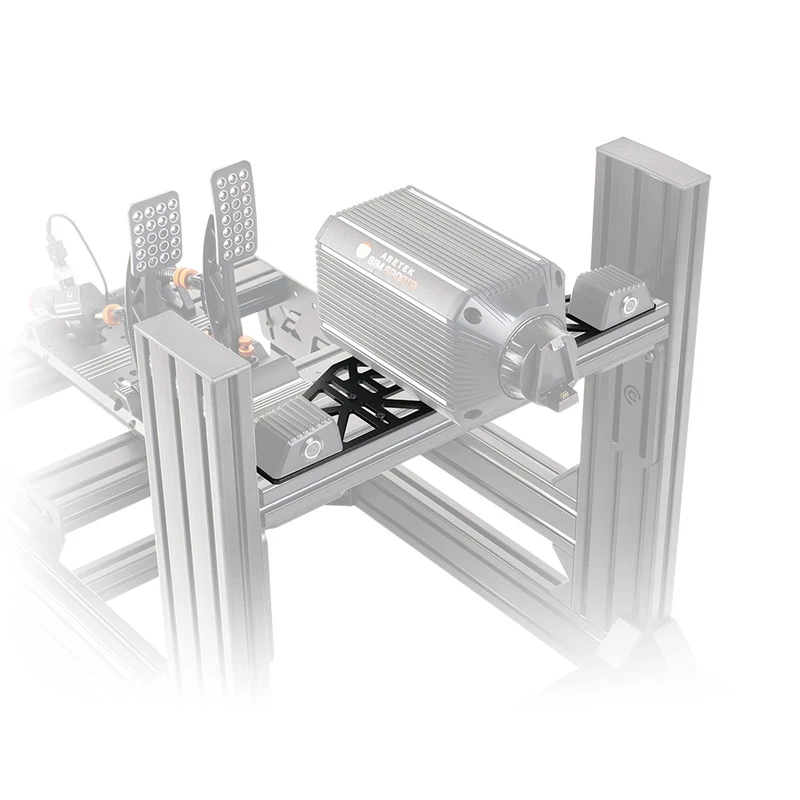

Mount the bracket to a flat, load-bearing surface on your table or sim rig using appropriate fasteners for the surface material. Attach the Asetek SimSports® Direct Drive wheelbase to the underside of the bracket, engaging the t-slots on the wheelbase to allow sliding adjustment along the bracket’s length. Position the wheelbase to achieve desired legroom and steering position, then tighten fasteners to secure the assembly. Ensure the supporting surface spans the full length of the bracket to distribute load evenly.

Recommendations

Use hardware and fasteners suitable for the mounting surface and expected forces. Confirm that the table or rig structure can support the combined weight and torque of the wheelbase and bracket. After initial installation, verify tightness of all fasteners and recheck after the first few sessions. Avoid mounting to uneven or unsupported surfaces that could allow bending or movement.
