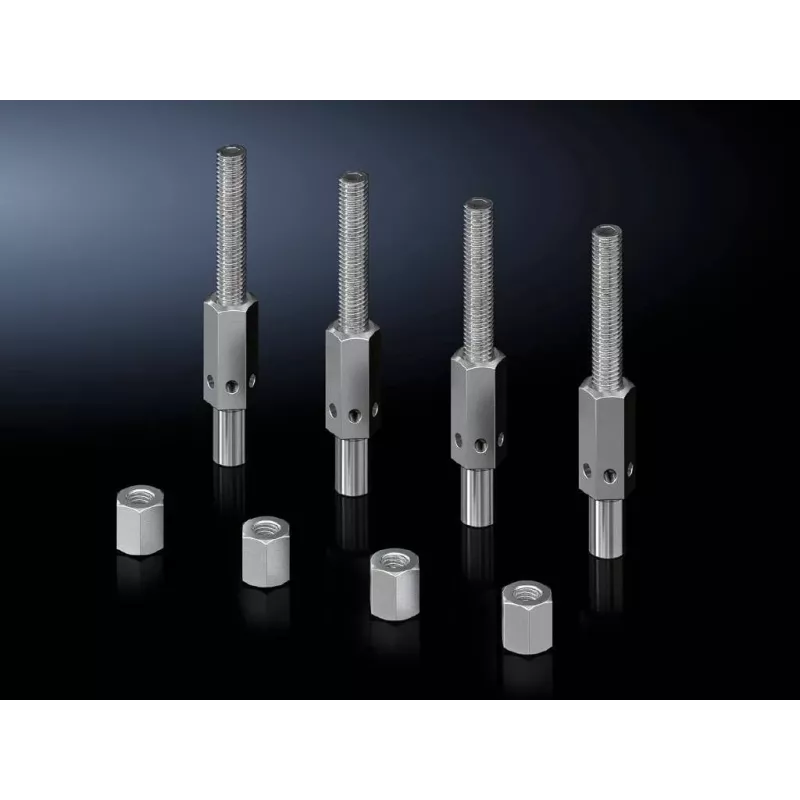

Montagekit Rittal 8100.710

The Rittal 8100.710 mounting kit allows retrospective levelling of cabinets on uneven floors at the installation site up to 15 mm. It is installed through the base/plinth corner piece on an already assembled enclosure, so levelling does not need to be planned in advance. The kit is made of durable stainless steel and provides 100 mm height support for racks and cabinets.

Advantages

The stainless steel construction offers corrosion resistance and long service life. Installation through the base/plinth corner means the cabinet can be levelled after assembly without dismantling. The kit supports a 100 mm height range suitable for standard server and network enclosures and corrects door offsets caused by uneven flooring.

Suitable for

Key specifications

How to use

Install the mounting kit through the cabinet base or plinth corner piece after the enclosure has been assembled. Adjust the kit to achieve up to 15 mm of levelling to correct any tilt or door offset caused by uneven flooring. Secure the kit according to the cabinet manufacturer's instructions to ensure stable support and alignment.

Recommendations

Use the kit when levelling was not arranged prior to enclosure installation or when slight floor irregularities (up to 15 mm) cause door misalignment. Verify compatibility with your specific Rittal cabinet model and follow the cabinet's assembly and safety instructions during installation.
