Montageset Alphacool Eiszapfen hoekadapter 45° draaibaar G1/4

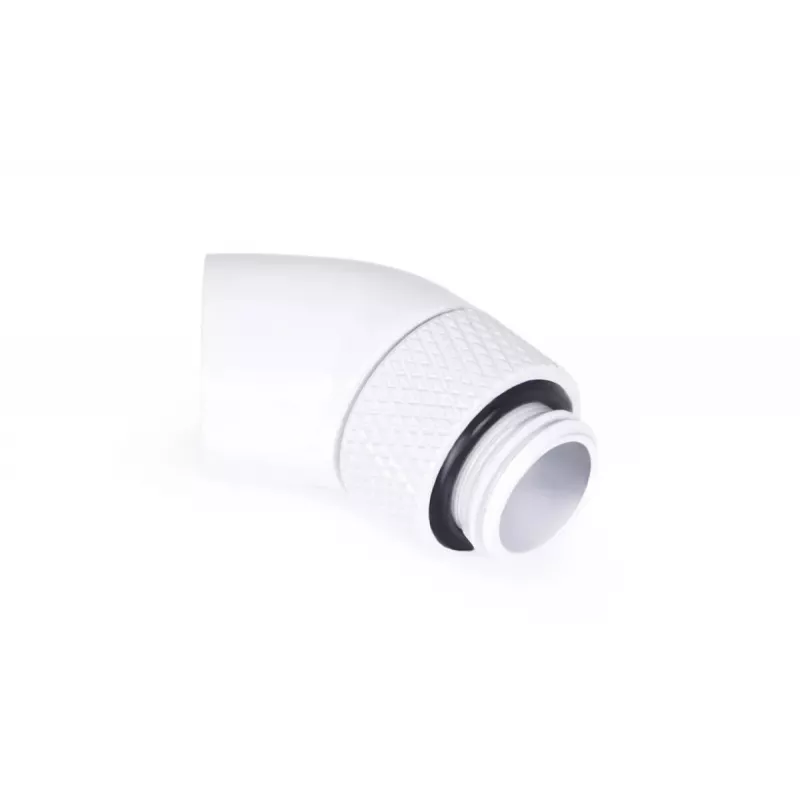

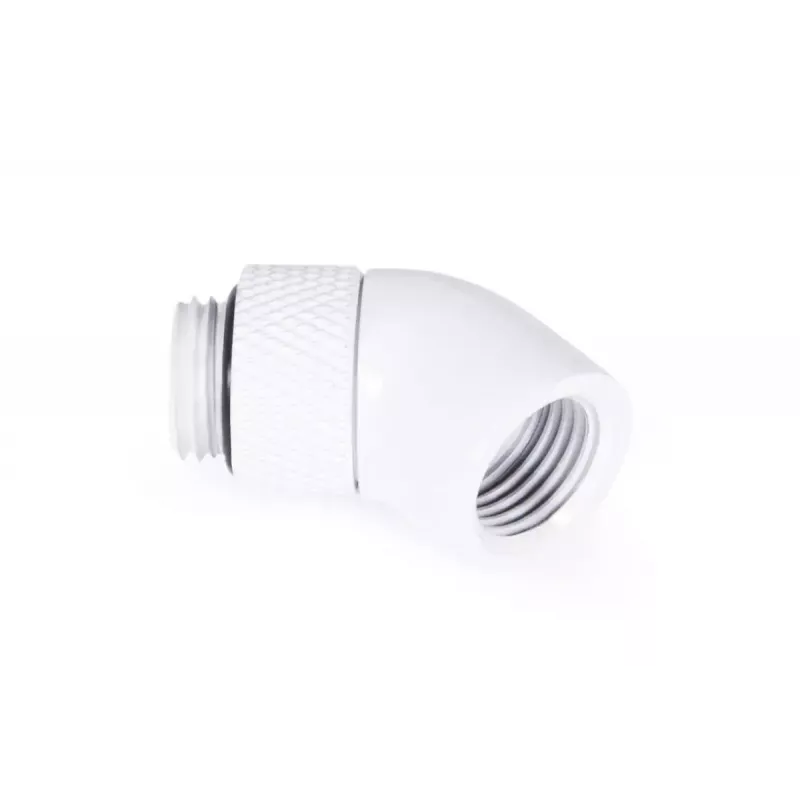

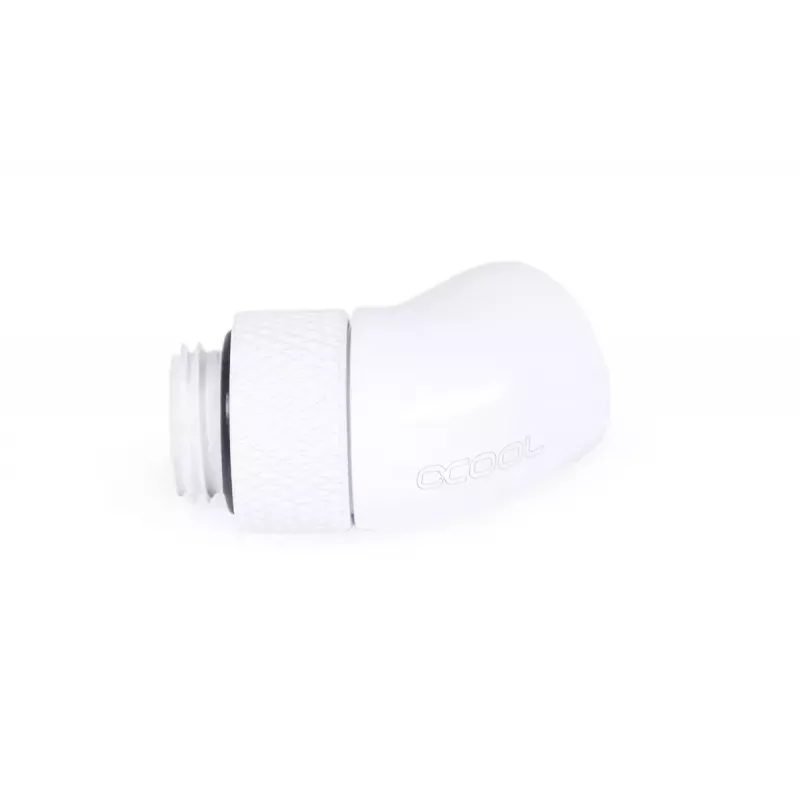

The Alphacool Eiszapfen angled adaptor 45° rotatable G1/4 is a high-end brass connector designed for custom water-cooling systems. It combines a 45° elbow shape with a rotatable 1/4" external thread on one side and a 1/4" internal thread on the other, enabling flexible hose routing where space is limited. Available in chrome, deep matt black and matt white finishes, the adaptor features durable, firmly bonded coatings and the Alphacool logo.

Advantages

The Eiszapfen adaptor offers a compact 45° angle that helps avoid interference between adjacent G1/4 ports and larger hose fittings. Its rotatable external thread simplifies alignment during installation. High-quality brass construction and special coating processes ensure colour longevity and resistance to flaking. The product's finish variants allow visual integration into different system designs.

Suitable for

• Custom PC water cooling loops with G1/4 fittings
• Situations with closely spaced G1/4 ports
• Setups requiring angled hose routing or compact connections

Key specifications

• Brand: Alphacool
• Model / MPN: 17487
• EAN: 4250197174879
• Type: 45° angled rotatable adaptor
• Threads: G1/4 (one side external 1/4" rotatable, other side internal 1/4")
• Material: Brass
• Finishes: Chrome, deep matt black, matt white
• Dimensions: width 18.5 mm, depth 35 mm, height 18.5 mm

How to use

Screw the internal G1/4 side into the component port and connect the external rotatable G1/4 thread to the mating fitting or hose connection. Rotate the external thread to align the adaptor to the desired hose direction before tightening. Ensure threads are sealed appropriately with thread sealant or PTFE tape if required by your cooling loop assembly practice. Tighten hand-tight plus a small turn with an appropriate tool to avoid overtightening.

Recommendations

Use the 45° rotatable adaptor when standard straight fittings cause interference or when you need to route tubing in tight spaces. Choose the finish that matches your system aesthetics and verify thread compatibility (G1/4) before installation.
