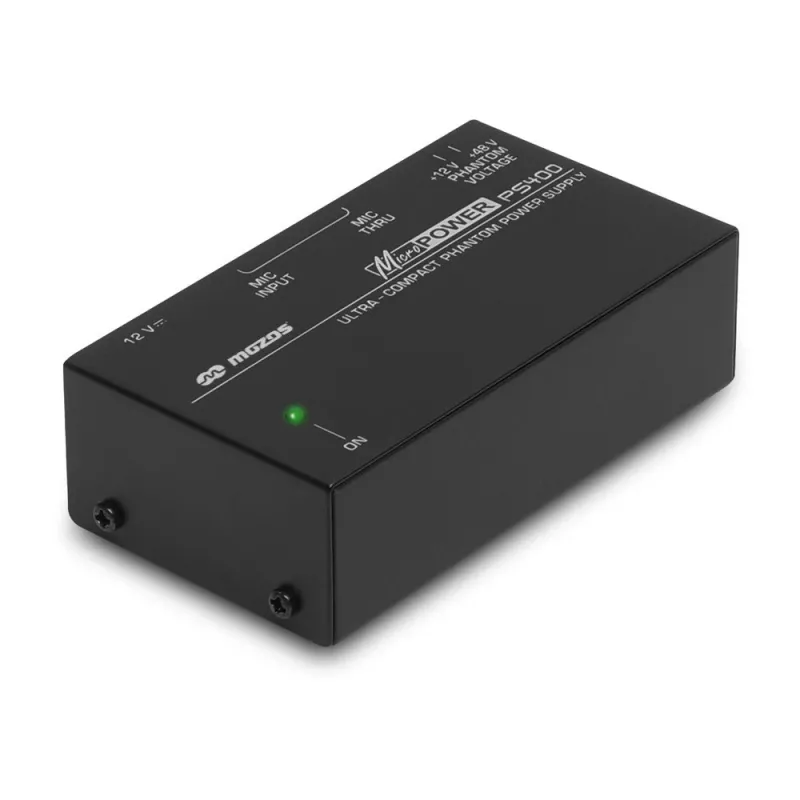

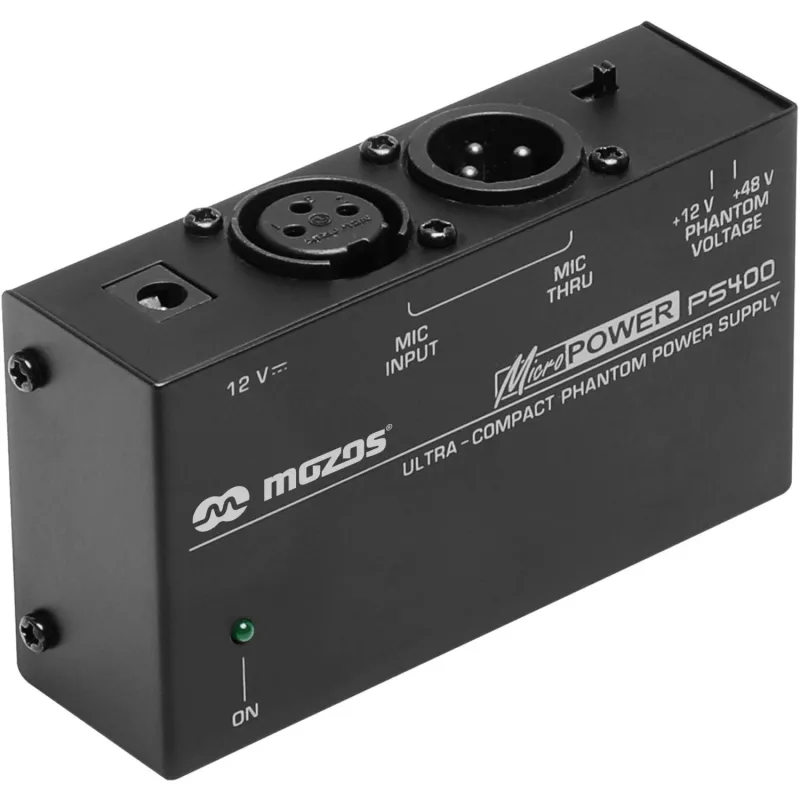

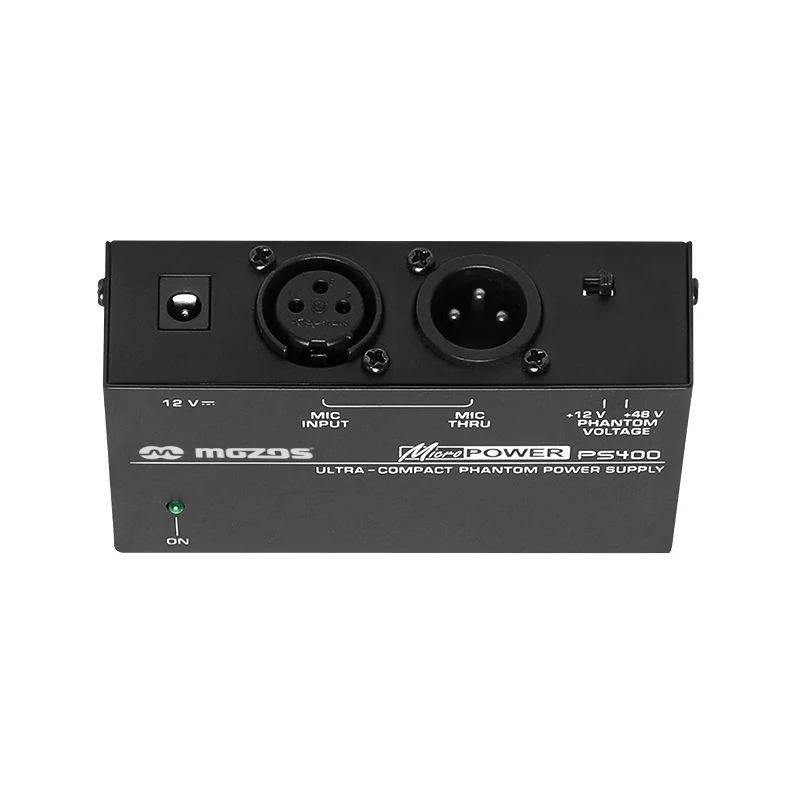

MOZOS PS400 Fantoomvoeding 12V / 48V voor XLR-microfoons

The MOZOS PS400 is a professional phantom power supply designed for condenser microphones that require external power. It provides selectable 12V or 48V DC phantom power via a standard XLR connection, making it ideal for studio recording, live sound, and broadcasting applications. The unit features a durable metal casing, an ON/OFF power switch, and a 12V/48V selector switch for flexible operation. It includes an external 12V DC adapter and necessary cables for immediate use.

Advantages

Reliable and clean power delivery ensures optimal microphone performance. The selectable voltage allows compatibility with a wide range of condenser microphones. Compact desktop design saves space and is easy to integrate into any setup. Short circuit and overload protection safeguard your equipment.

Suitable for

• Studio recording sessions
• Live sound reinforcement
• Broadcasting and podcasting
• Home recording studios

Key specifications

• Phantom Power Output: 12V DC / 48V DC (Selectable)
• Audio Input Connector: 1 x XLR 3-pin Female
• Audio Output Connector: 1 x XLR 3-pin Male
• Number of Channels: 1 (Mono)
• Power Input: 12V DC via included adapter
• Housing Material: Durable Metal Casing
• Controls: ON/OFF Power Switch, 12V/48V Selector Switch
• Indicators: Power Status LED
• Frequency Response: 20Hz - 20kHz
• Protection: Short Circuit and Overload Protection
• Included Cables: 1 x DC Power Cable, 1 x XLR Audio Cable (approx. 1.5m)

Recommendations

For best results, use with high-quality XLR cables and ensure the microphone is compatible with the selected phantom power voltage. Always power off the unit before connecting or disconnecting microphones.
