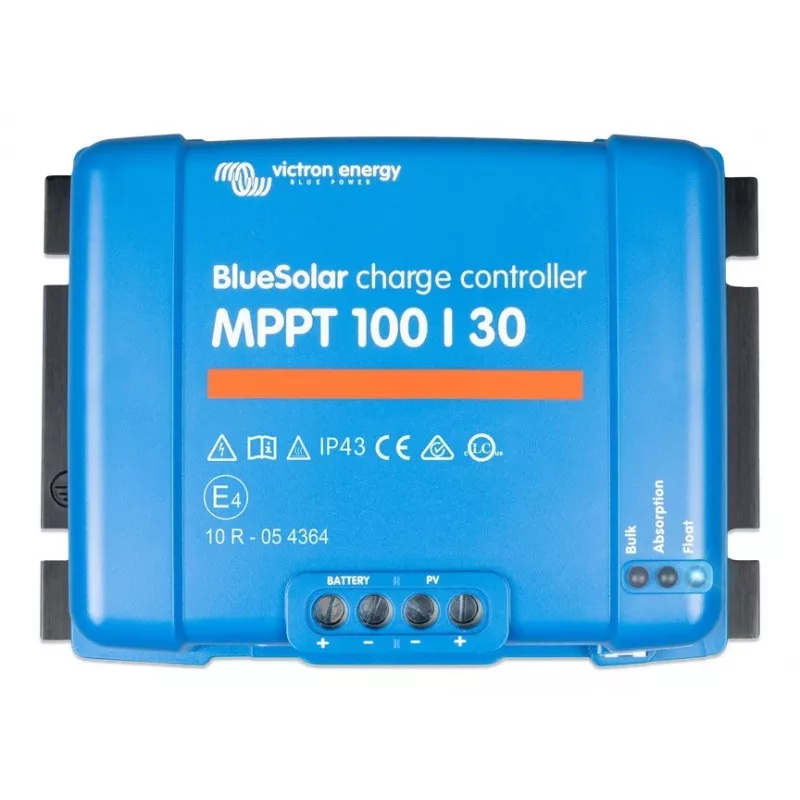

MPPT-zonne-laadregelaar Victron Energy BlueSolar 100/30 – 30 A, 100 V max. PV

Victron Energy BlueSolar MPPT 100/30 is a maximum power point tracking solar charge controller engineered for systems requiring up to 30 A charge current and photovoltaic array voltages up to 100 V. The controller maximizes energy harvest from solar panels using advanced MPPT algorithms, supports multiple battery chemistries and charging profiles, and integrates protection features to safeguard PV arrays and batteries. It is intended for off-grid installations, recreational vehicles, marine use and small-scale solar setups where reliable, efficient charging is required.

Advantages

The BlueSolar MPPT 100/30 combines fast and accurate MPPT tracking with a high PV input voltage range, allowing more flexible panel configurations and improved performance in changing light conditions. Built-in safety features protect against reverse polarity, overtemperature and overvoltage, while adaptive charging algorithms extend battery life by using tailored charge profiles for lead‑acid and lithium batteries. Compact construction and robust electrical design make the unit suitable for interior mounting in small installations and mobile applications.

Suitable for

• Off‑grid homes and cabins with small to medium PV arrays
• Recreational vehicles (RVs) and camper vans
• Boats and marine electrical systems
• Small commercial or agricultural solar systems requiring efficient battery charging

Key specifications

• Maximum solar input voltage: 100 V
• Maximum output charge current: 30 A
• MPPT tracking algorithm for improved energy harvest
• Supports multiple battery chemistries and programmable charge profiles
• Integrated protection: reverse polarity, overtemperature and overvoltage safeguards
• Compact form factor suitable for indoor or sheltered mounting

How to use

Install the controller following the manufacturer’s mounting and wiring guidelines, ensuring correct orientation and adequate ventilation. Connect the PV array to the PV input terminals and the battery to the battery output terminals, observing correct polarity. Configure the charge profile to match the battery chemistry and capacity using the controller interface or compatible external setup tools. Verify system voltages and operation after initial commissioning and periodically check connections and settings during normal operation.

Recommendations

For optimal performance, design PV array voltage to remain within the controller’s input range under all expected temperatures, and use appropriate fusing or circuit protection on PV and battery circuits. Regularly monitor battery state and adjust charge settings for battery type and age to maintain capacity and extend service life.
