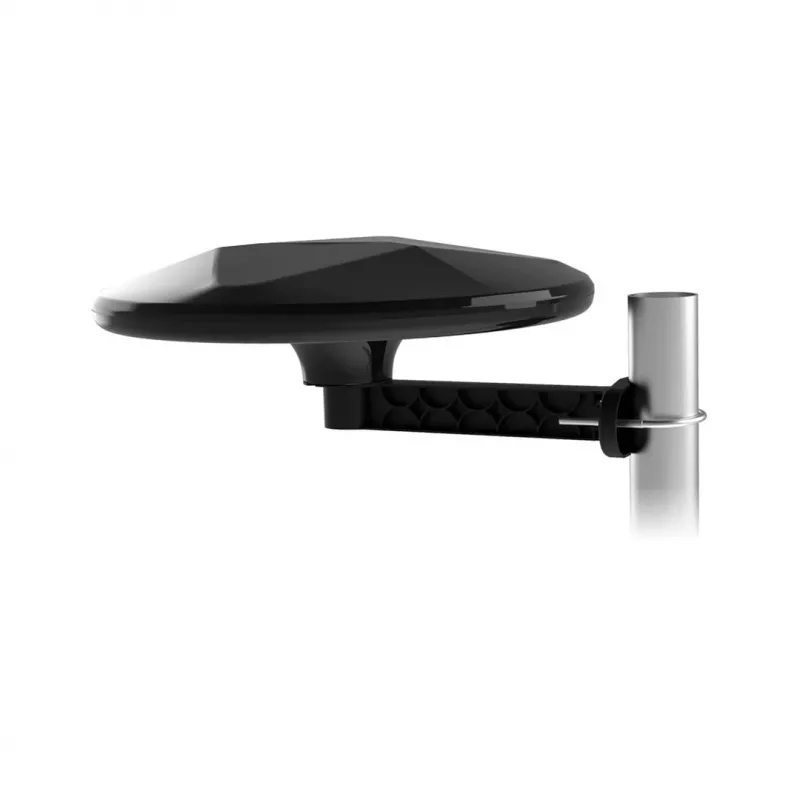

MSI Mistral MI-ANT07 UFO DVB-T2 Antenne - Zwart

The MSI Mistral MI-ANT07 UFO DVB-T2 Antenna is a high-performance digital TV antenna designed for both indoor and outdoor use. With its omnidirectional UFO design, it provides reliable reception of DVB-T, DVB-T2, DAB, and DAB+ signals across VHF and UHF frequency ranges. The integrated amplifier delivers a gain of 28-30 dB, ensuring clear and stable reception even in challenging environments. Equipped with an LTE/4G filter, it minimizes interference from mobile networks. The antenna is weather-resistant, UV-resistant, and waterproof, making it suitable for wall, pole, or balcony mounting. Power is supplied via USB or DVB-T2 receiver (DC 5V).

Advantages

High gain of 28-30 dB for excellent signal reception. Integrated LTE/4G filter reduces interference. Omnidirectional design captures signals from all directions. Suitable for both indoor and outdoor installation. Weather-resistant and UV-protected for long-lasting performance.

Suitable for

• Digital TV reception (DVB-T/T2)
• Digital radio reception (DAB/DAB+)
• Home and office use
• Outdoor installations on walls, poles, or balconies

Key specifications

• Antenna Type: DVB-T2 Digital TV Antenna
• Reception: DVB-T, DVB-T2, DAB, DAB+
• Frequency Range: VHF 174-230 MHz, UHF 470-790 MHz
• Antenna Gain: 28-30 dB (with integrated amplifier)
• Impedance: 75 Ohm
• Polarization: Horizontal & Vertical
• Connector: F-type
• Noise Figure: < 3 dB
• Integrated LTE/4G Filter: Yes
• Power Supply: DC 5V (via USB or DVB-T2 receiver)
• Design: Omnidirectional UFO
• Application: Indoor & Outdoor
• Weather Resistance: UV Resistant, Waterproof
• Mounting Options: Wall, Pole, Balcony
• Color: Black

Recommendations

For optimal performance, ensure the antenna is placed in a location with minimal obstructions. Use a high-quality coaxial cable with F-type connectors. The antenna can be powered via the USB port of your TV or a separate USB power adapter.
