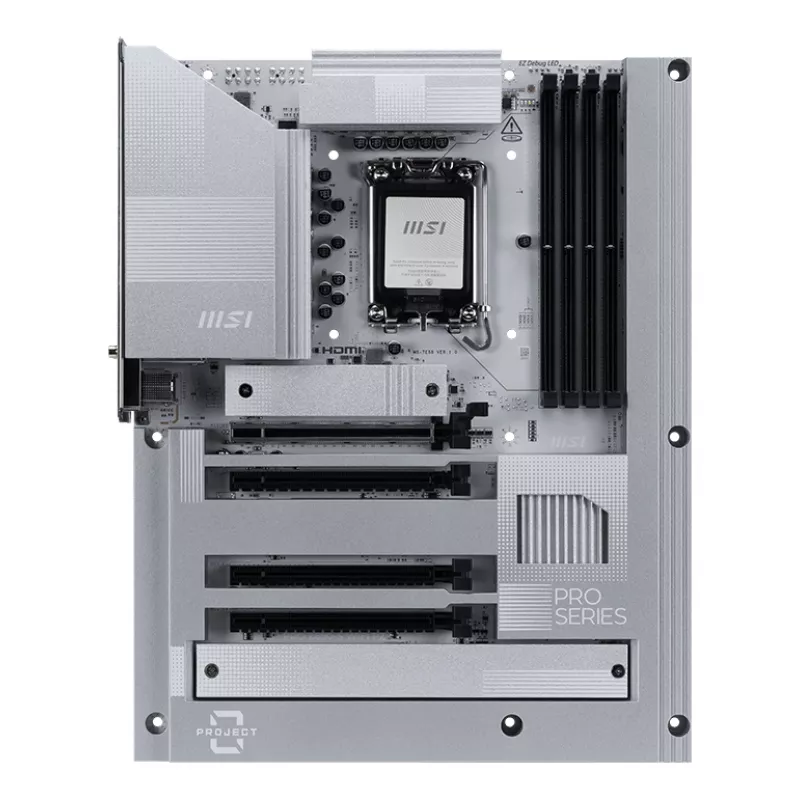

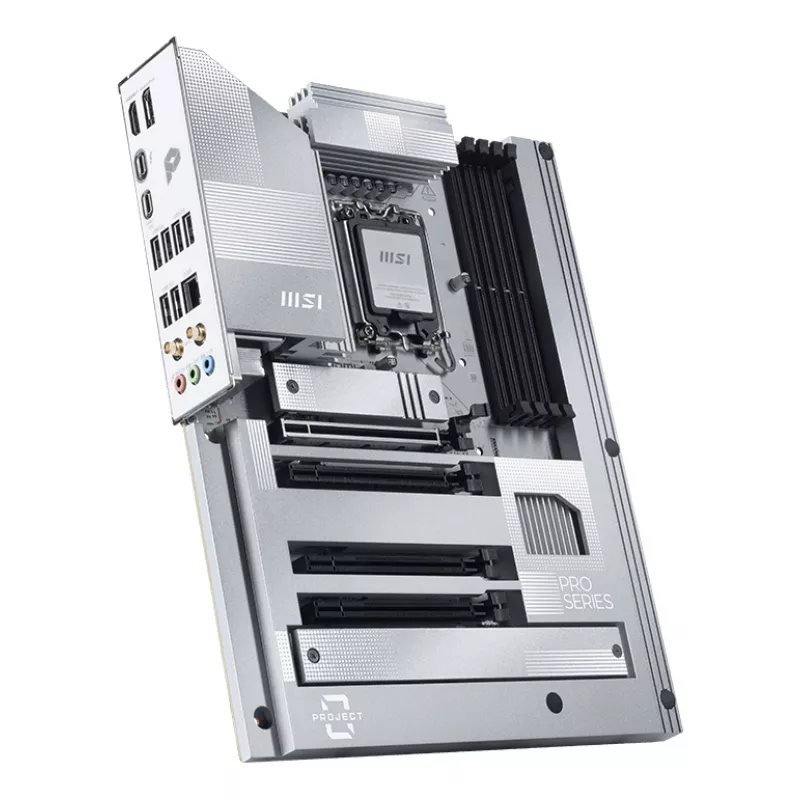

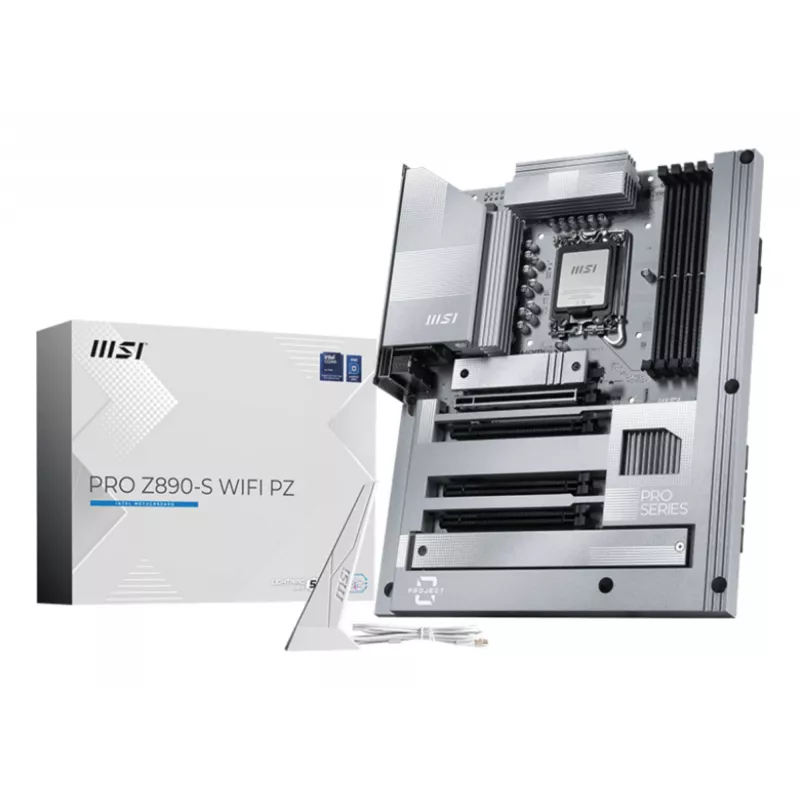

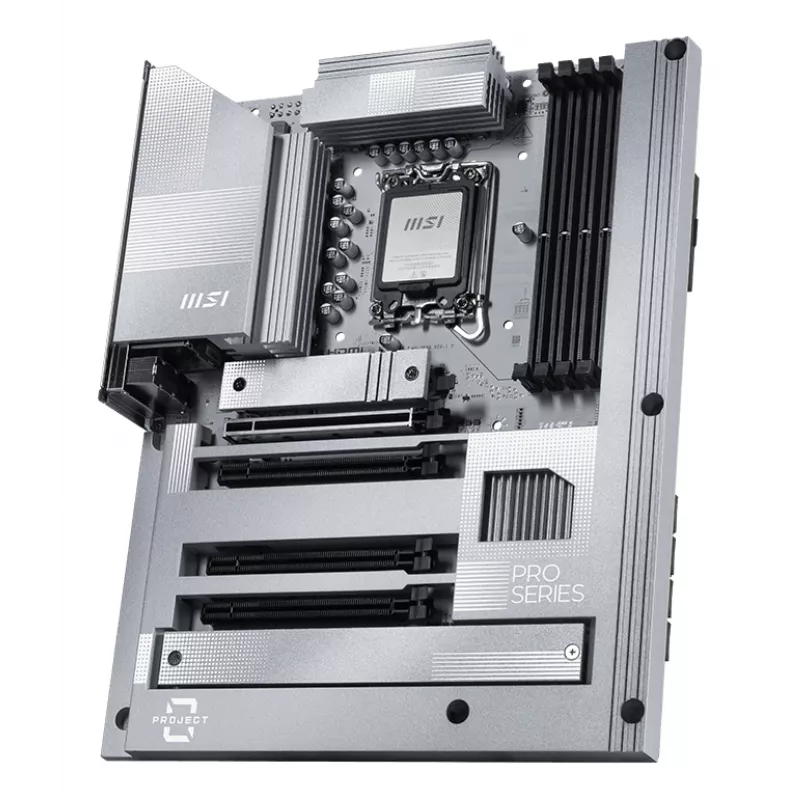

MSI PRO Z890-S WIFI PZ moederbord Intel Z890 LGA 1851 (socket V1) ATX

The MSI PRO Z890-S WIFI PZ Intel Z890 LGA 1851 ATX is a full-size ATX motherboard designed for modern desktop PC builds using Intel processors with the LGA 1851 socket. It supports DDR5 memory across four DIMM slots for up to 256 GB, offers multiple storage interfaces including M.2 and SATA III, and provides advanced RAID options. Integrated high-speed networking includes 2.5 Gigabit Ethernet and wireless connectivity through Wi‑Fi 7, making this board suitable for demanding productivity and connectivity-focused systems.

Advantages

This motherboard combines a contemporary Intel Z890 chipset feature set with the LGA 1851 socket to support current and upcoming Intel CPUs. DDR5 memory support and four memory slots enable large-capacity, high-bandwidth configurations. Multiple M.2 slots and SATA III ports allow flexible storage layouts and RAID configurations for performance or redundancy. Network options with 2.5 GbE and Wi‑Fi 7 provide low-latency wired and wireless connections for data transfer, streaming, and online collaboration. The ATX form factor offers extensive expansion possibilities for PCIe cards and cooling solutions.

Suitable for

• High-performance desktop workstations for content creation and multimedia editing
• Business or home office PCs requiring fast wired and wireless networking
• Gaming systems that benefit from DDR5 memory and multiple expansion slots
• Storage-intensive builds using M.2 NVMe drives and SATA arrays with RAID

Key specifications

• Form factor: ATX
• Chipset: Intel Z890
• CPU socket: LGA 1851 (Socket V1) — supports compatible Intel processors
• Memory: 4 DIMM slots, DDR5-SDRAM, up to 256 GB
• Storage interfaces: M.2 slots and SATA III ports (multiple lanes supported)
• RAID: Advanced RAID configuration options for supported storage devices

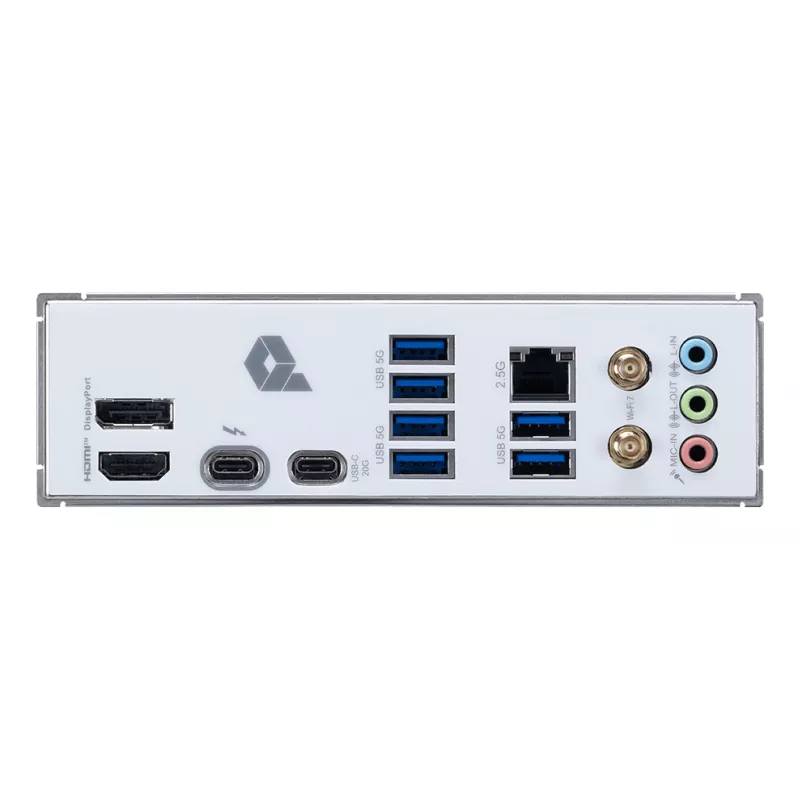

• Networking: 2.5 Gigabit Ethernet and Wi‑Fi 7 wireless connectivity
• Expansion: Standard ATX PCIe slots for graphics cards and add-on cards

How to use

Install the motherboard into a compatible ATX case, aligning mounting points and securing it with screws. Fit a compatible Intel LGA 1851 processor according to the CPU installation guidelines, apply thermal interface material, and attach a suitable cooler. Populate DDR5 DIMMs across the four memory slots following the motherboard manual for optimal channel configuration. Install M.2 drives into the designated slots and connect SATA drives to the SATA III ports. Connect power supply cables to the 24-pin ATX and CPU power headers, and attach front-panel connectors, USB headers, and case fans as required. After assembling hardware, enter the firmware/BIOS to configure memory profiles, boot order, storage RAID if needed, and networking settings.

Recommendations

Use certified DDR5 memory modules and a high-quality processor cooler compatible with LGA 1851 to ensure system stability under load. Keep motherboard firmware up to date for CPU compatibility and networking optimizations. When configuring storage RAID or multiple NVMe drives, back up important data and follow the manual’s recommended RAID setup procedures. For optimal wireless performance, position the case and antennae to minimize obstruction and interference.
