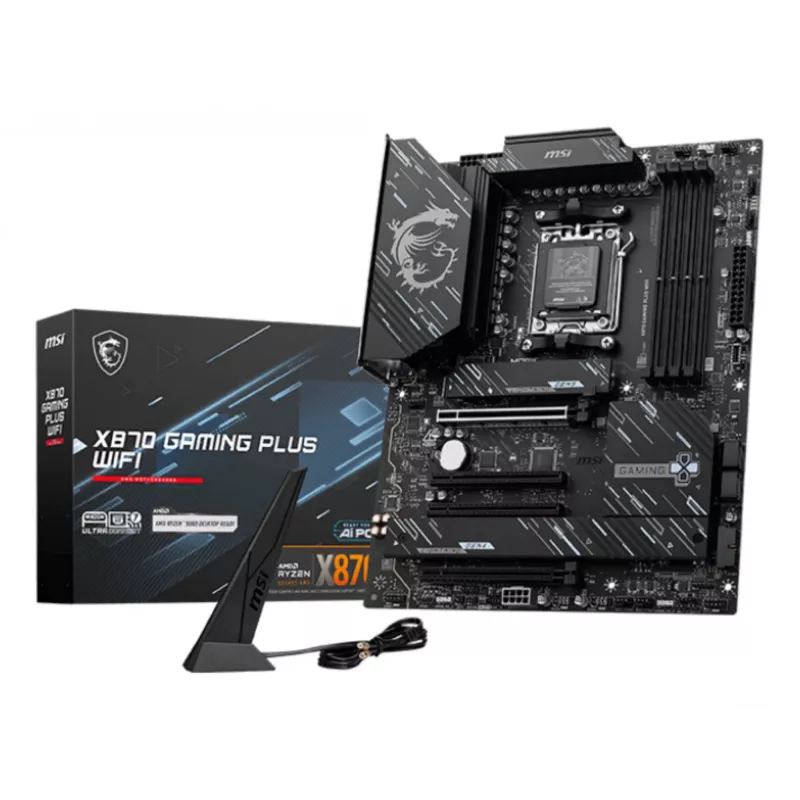

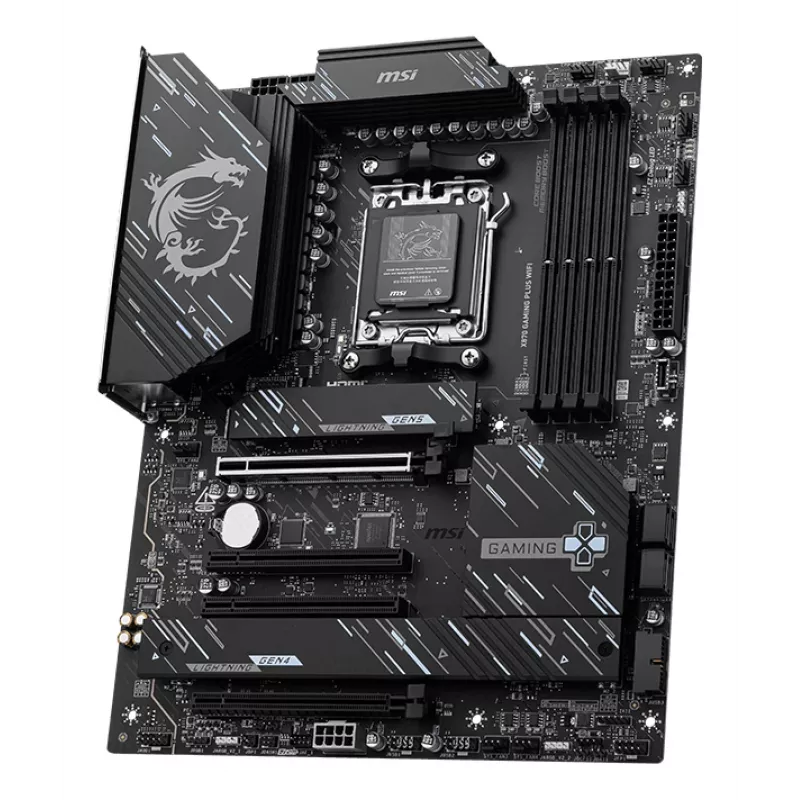

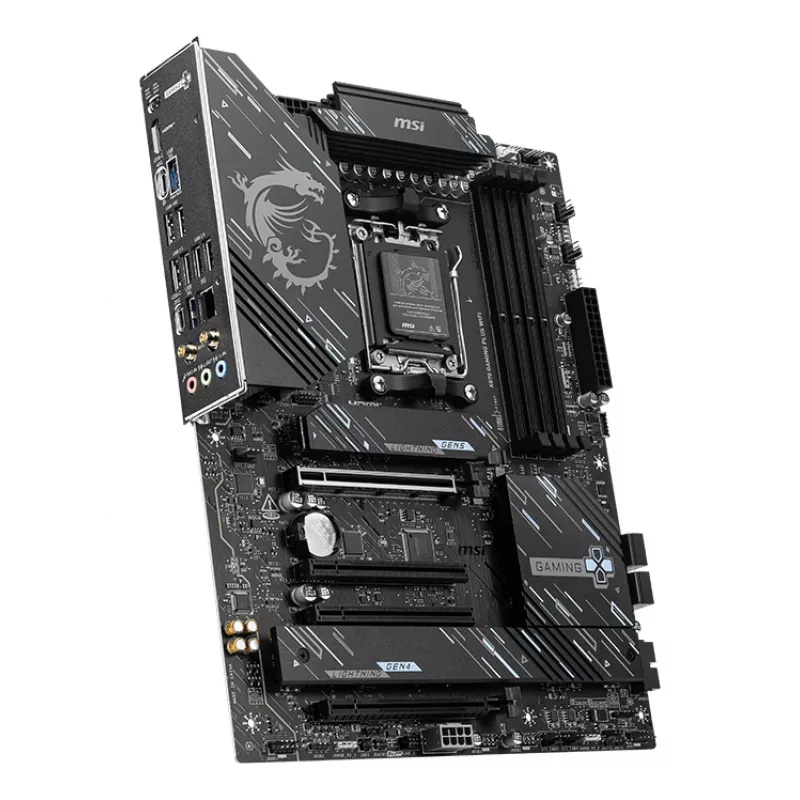

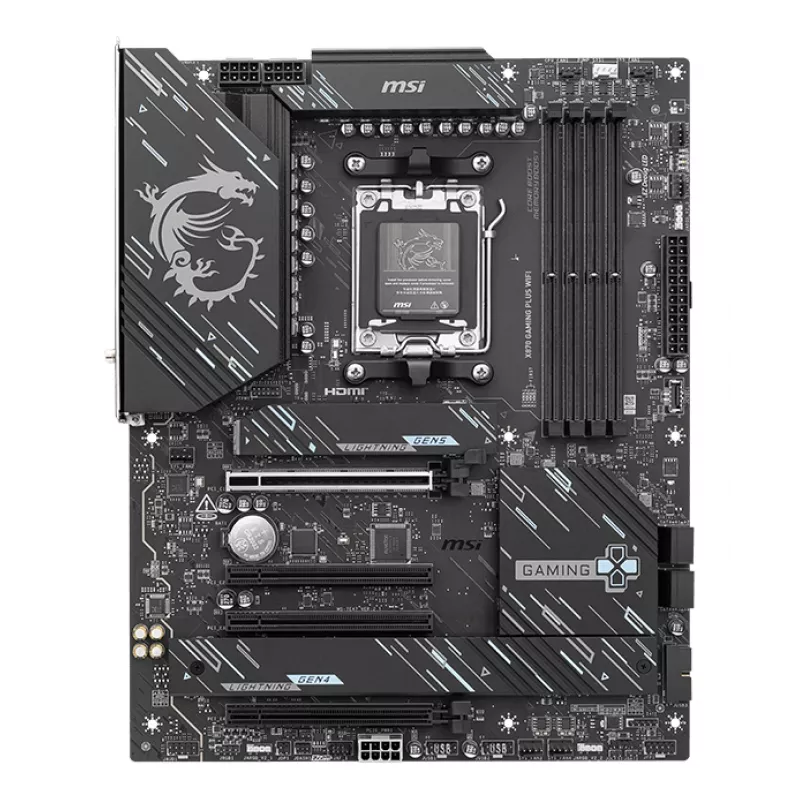

MSI X870 GAMING PLUS WIFI Moederbord AMD X870 Socket AM5 ATX

The MSI X870 GAMING PLUS WIFI is an ATX motherboard for AMD Socket AM5 processors, supporting Ryzen 7000, 8000 and 9000 series. It supports DDR5 memory up to 128 GB across four DIMM slots, provides multiple M.2 and SATA storage interfaces, includes a built-in USB4 port for 40 Gbps external transfer and offers integrated 5 Gigabit Ethernet plus Wi‑Fi 7 for high-speed wired and wireless networking. The board also incorporates advanced PCIe 5.0 support and enhanced cooling features to sustain high-performance CPUs and SSDs.

Advantages

Built-in USB4 (40 Gbps) and PCIe 5.0 (Lightning Gen 5) deliver very high bandwidth for external devices and internal expansion. Tool-less features such as the EZ M.2 Shield Frozr II and EZ PCIe Clip II simplify installation and removal of M.2 SSDs and graphics cards. The extended heatsink design and pre-installed I/O shielding improve thermal performance and EMI protection. Wi‑Fi 7 and a 5G LAN solution provide fast and modern networking options, while Audio Boost offers improved onboard sound quality.

Suitable for

• High-performance gaming PC builds using AMD Socket AM5 CPUs
• Content creation systems requiring fast storage and high PCIe bandwidth
• Workstations needing reliable wired 5 GbE and high-speed Wi‑Fi 7 connectivity
• Users who prefer easier installation and maintenance of M.2 drives and GPUs

Key specifications

• Form factor: ATX
• Chipset: AMD X870
• CPU socket: Socket AM5 (supports Ryzen 7000/8000/9000 series)
• Memory: DDR5, 4 slots, up to 128 GB
• Storage interfaces: multiple M.2 slots with Shield Frozr support; SATA ports
• Expansion: PCIe 5.0 (Lightning Gen 5)

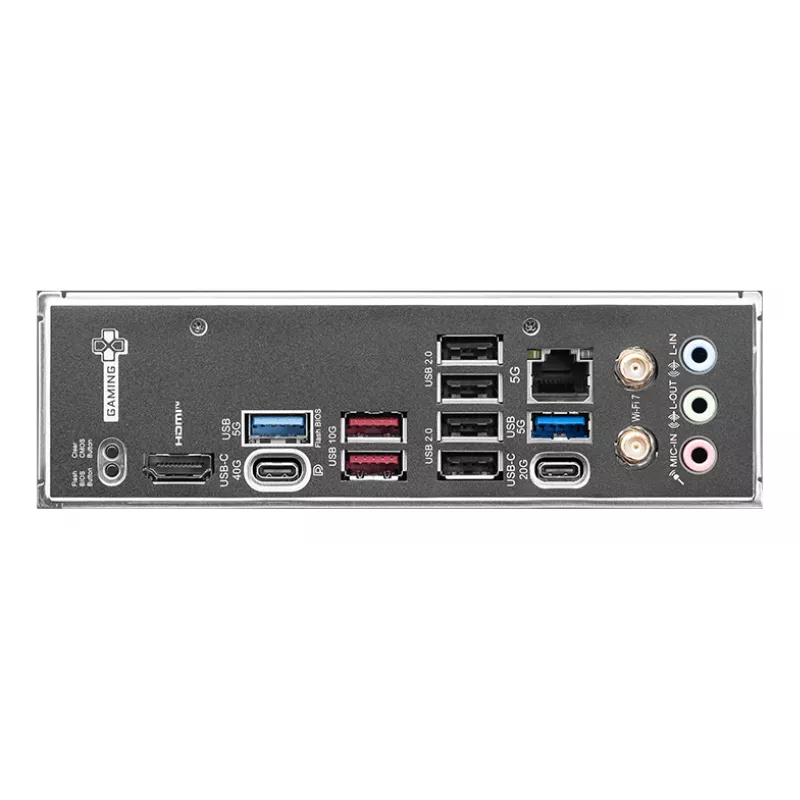

• USB: Built-in USB4 port (40 Gbps)
• Networking: 5 Gigabit Ethernet and Wi‑Fi 7 (802.11be, up to 5.8 Gbps theoretical PHY)
• Audio: Audio Boost onboard codec

How to use

Install the motherboard into a compatible ATX chassis, mount an AM5 CPU and apply the recommended cooler. Populate DDR5 DIMMs into the four memory slots according to the motherboard manual for dual- or quad-channel configurations, and install storage devices into M.2 or SATA connectors. Use the tool-less EZ M.2 Shield Frozr II for easier M.2 SSD installation and secure the graphics card with the EZ PCIe Clip II. Connect power, front panel headers and I/O devices, then flash or configure BIOS as needed before installing an operating system.

Recommendations

For sustained high loads, ensure good case airflow and use a compatible high-performance CPU cooler. Keep BIOS and network drivers up to date to take advantage of PCIe 5.0, USB4 and Wi‑Fi 7 features. Refer to the motherboard manual for recommended memory QVL and installation steps for M.2 drives to ensure optimal performance and compatibility.
