Multi-bit-schroevendraaier Wera 05051017001

Wera 05051017001 is a 13-piece Kraftform Kompakt multi-bit screwdriver set that combines six 25 mm and six 89 mm bits with a compact handle and integrated storage. The tool supports both manual and machine-assisted screwdriving and is compatible with 1/4" hex bits according to DIN ISO 1173-C 6.3 and E 6.3 as well as Wera connection series 1 and 4. The set includes a connecting adapter with bayonet Rapidaptor technology, a Kraftform handle with anti-roll protection and multi-component grip, and nickel-coated bits for increased corrosion protection. An integrated magazine stores the 25 mm bits for easy access, and the “Take it easy” colour coding identifies profiles and sizes at a glance.

Advantages

The compact design allows quick switching between hand and machine use while keeping the overall kit small. Rapidaptor bayonet connection and the connecting adapter provide secure, fast bit changes. Kraftform handle with anti-roll protection and multi-component surfaces improves ergonomics and control. The integrated magazine reduces the number of separate tools needed and keeps short bits organised. Colour-coded markings make it simple to identify bit type and size. Nickel chemical coating enhances corrosion resistance.

Suitable for

• General assembly and maintenance work requiring a variety of bit lengths
• Tasks that alternate between manual and power-tool screwdriving
• On-site service and mobile toolkits where compact storage is important
• Use with 1/4" hex bit holders and compatible Wera connection systems

Key specifications

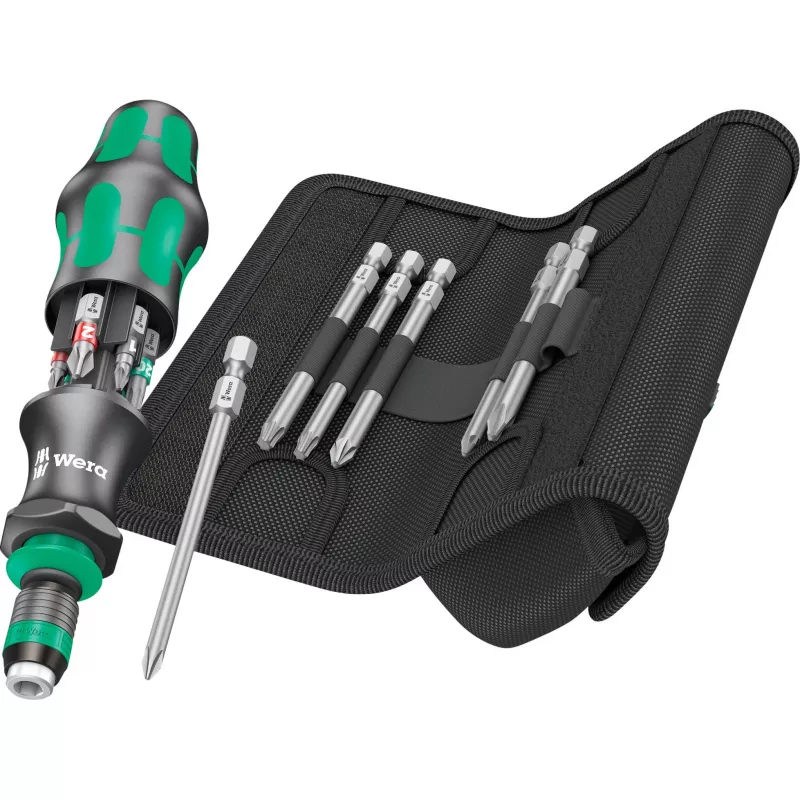

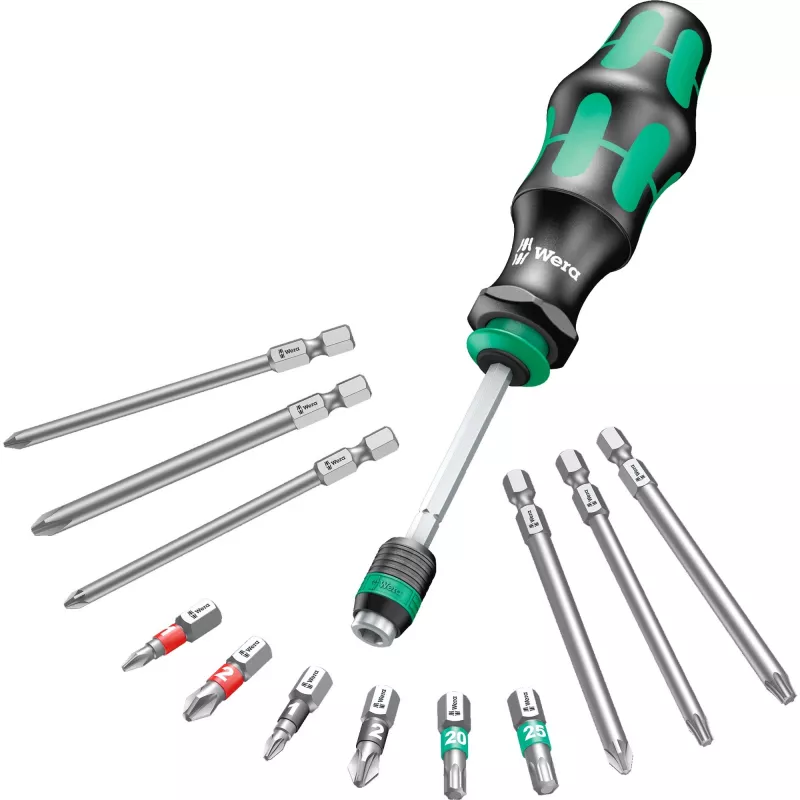

• Set contents: 13 pieces (6 × 25 mm bits, 6 × 89 mm bits, handle with Rapidaptor & adapter)
• Bit drive: 1/4" hexagon according to DIN ISO 1173-C 6.3 / E 6.3
• Handle: Kraftform with anti-roll protection and multi-component grip
• Connection: Wera connection series 1 and 4; Rapidaptor bayonet
• Bit coating: Nickel chemical coating for corrosion protection
• Integrated magazine for 25 mm bits
• Dimensions (product): approx. 173 × 73 × 80 mm
• Brand / MPN / EAN: Wera / 05051017001 / 4013288211224

How to use

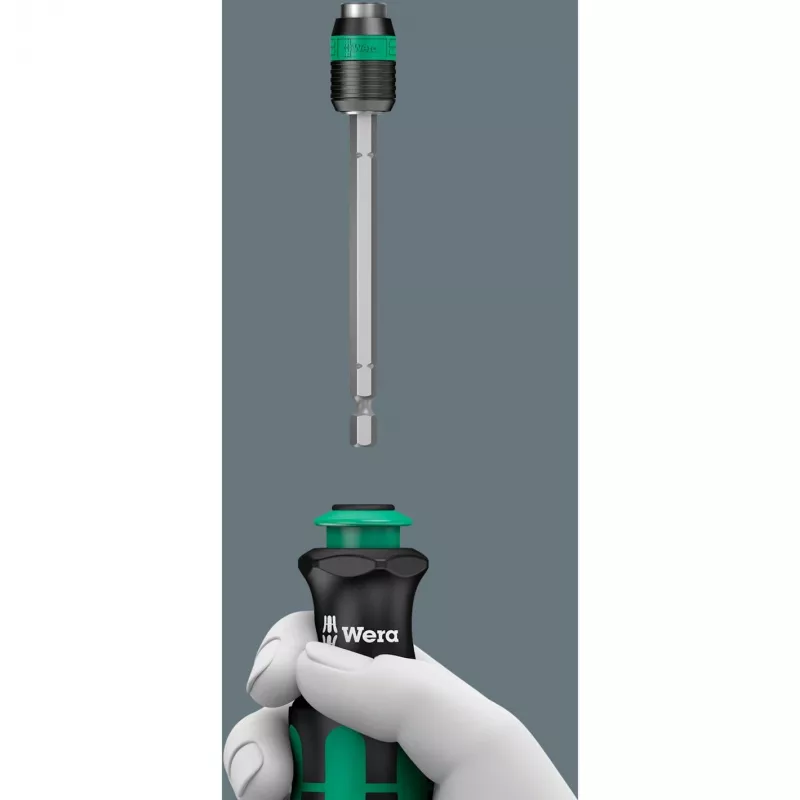

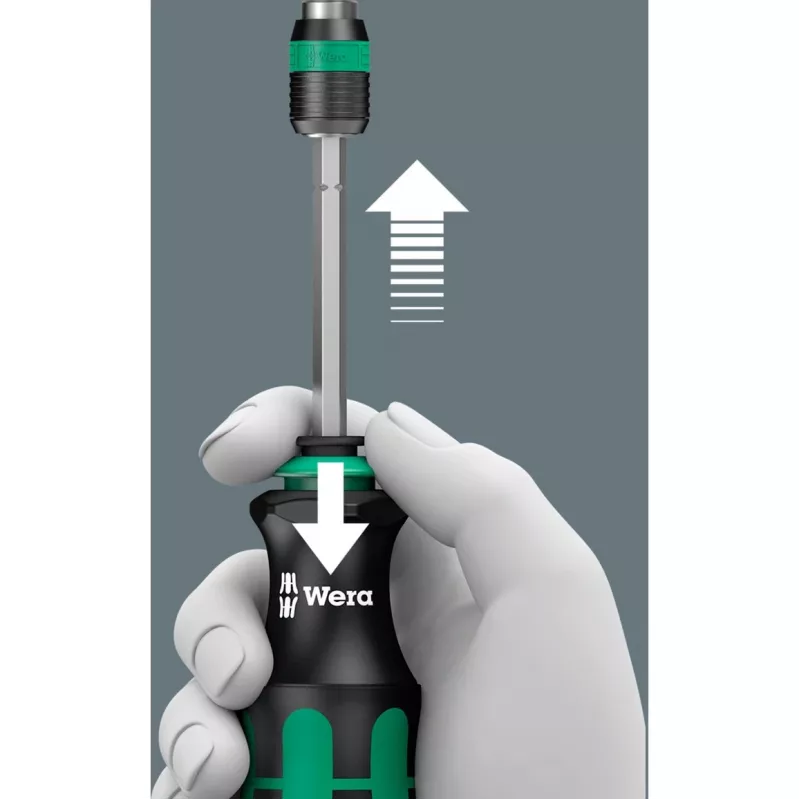

Select the required bit from the integrated magazine or the longer 89 mm selection and insert it into the Rapidaptor bayonet or adapter. For manual screwdriving, hold the Kraftform handle with the multi-component grip; for machine-assisted work, use the appropriate 1/4" hex holder or the Wera connection series. Change bits by releasing the Rapidaptor bayonet mechanism or using the adapter as needed. Store the short 25 mm bits in the handle magazine when not in use to keep the set compact and organised.

Recommendations

Use the Kraftform handle for manual tasks to reduce hand fatigue and the Rapidaptor connection for frequent bit changes. Keep bits stored in the integrated magazine to protect tips and maintain compact transport. Do not force incompatible bit sizes or damaged bits into fasteners to avoid wear or injury.
