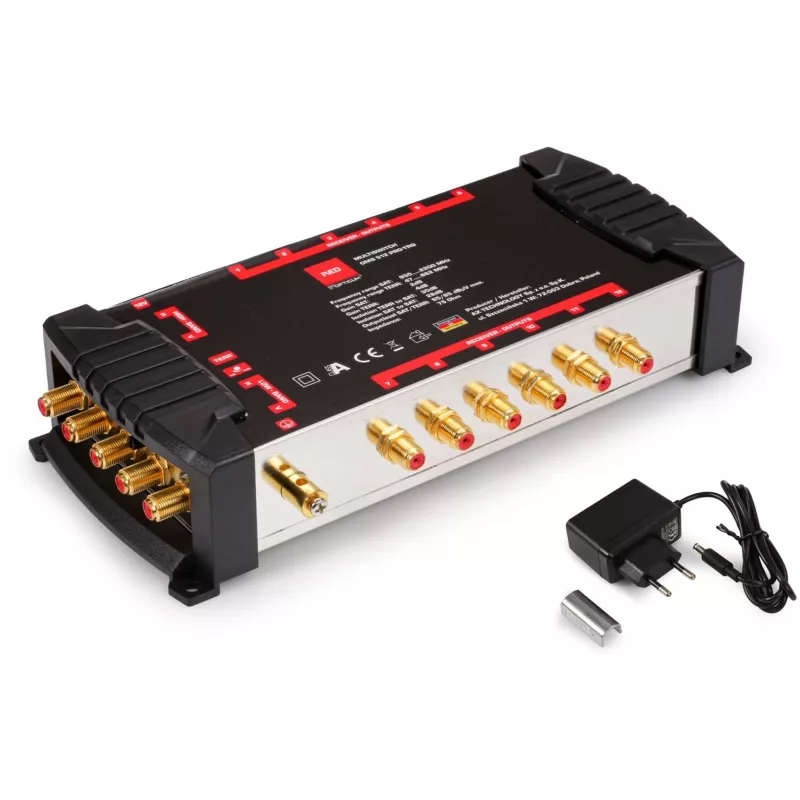

Multiswitch Opticum OMS 5/12 PRO-TRQ (Platinum Line)

The Opticum OMS 5/12 PRO-TRQ is a high-performance multiswitch from the Platinum Line, designed for professional satellite and terrestrial signal distribution. It supports up to 5 satellite inputs and 12 user outputs, making it ideal for multi-dwelling units and commercial installations. The unit ensures reliable signal switching and amplification with low noise figure and high isolation.

Advantages

Platinum Line quality ensures robust construction and long-term reliability. The multiswitch supports both horizontal and vertical polarization, and is compatible with DiSEqC 1.0/1.1 protocols. Its compact design allows for easy wall mounting, and the integrated power supply simplifies installation.

Suitable for

• Satellite TV distribution in apartment buildings
• Hotels and hospitality venues
• Office complexes requiring multiple TV outlets
• Any installation needing up to 12 user connections

Key specifications

• Brand: Opticum
• Model: OMS 5/12 PRO-TRQ
• Product colour: Silver
• Inputs: 5 satellite, 1 terrestrial
• Outputs: 12 user
• Frequency range: 950-2150 MHz (satellite), 5-862 MHz (terrestrial)
• Control: DiSEqC 1.0/1.1
• Power supply: 12V DC via external adapter
• Dimensions: 280 x 130 x 45 mm
• Weight: 0.8 kg

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper grounding. The multiswitch is compatible with most satellite receivers and LNBs. For installations exceeding 12 users, consider cascading multiple units.
