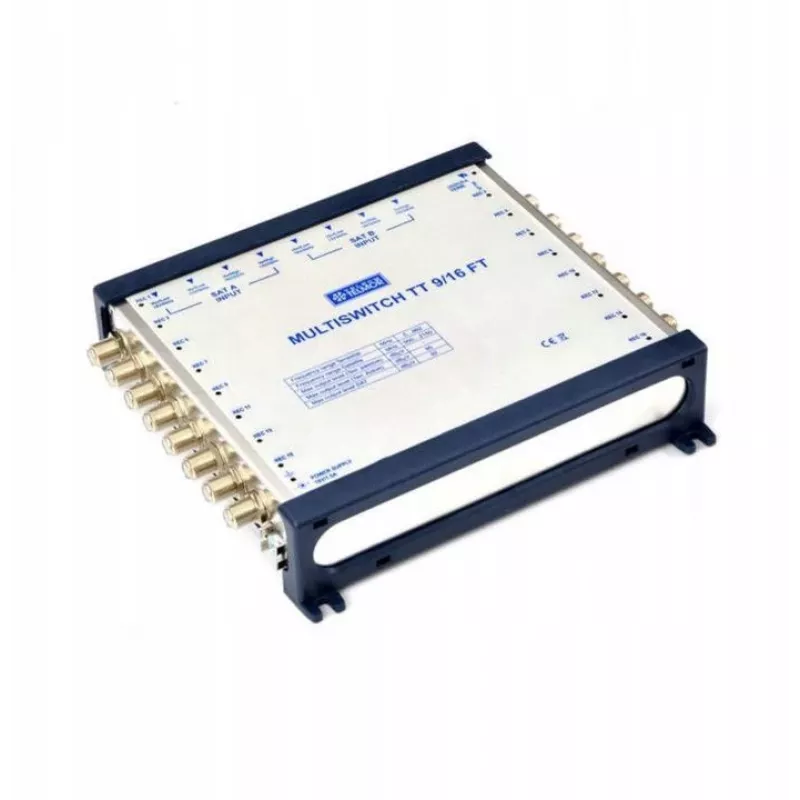

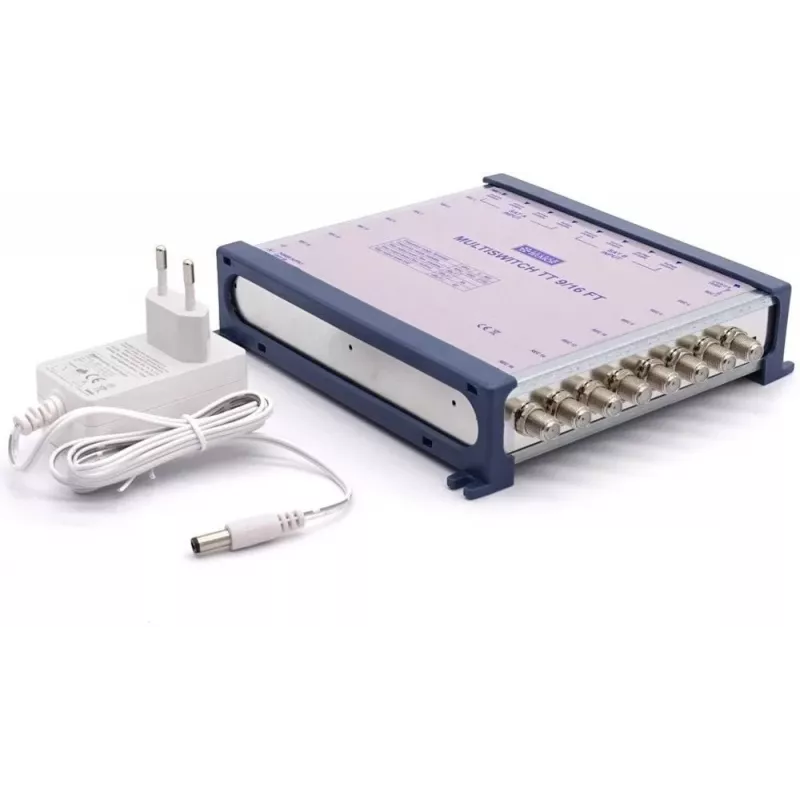

Telmor TT 9/16 FT Classic multiswitch – 16 deelnemeruitgangen, eindapparaat met geïntegreerde voeding

Distribute satellite and terrestrial signals to up to 16 independent subscriber outlets with the Telmor TT 9/16 FT Classic Multiswitch. This end unit integrates its own power supply, so you can simply connect a Quattro LNB or two satellite positions, a terrestrial aerial, and the subscriber cables to get your distribution network up and running.

Overview

This classic type multiswitch covers the frequency ranges used by current DVB-T and satellite receivers. The terrestrial input includes an active return path, making it compatible with interactive services, while the satellite section supports DiSEqC 2.0 control for reliable signal selection. The unit is housed in a durable metal enclosure and is designed for indoor installation.

What stands out

• Integrated mains power supply; no additional wall adapter required.
• Sixteen subscriber outputs for larger installations.
• Active terrestrial return path (5–65 MHz) for interactive and VOD services.
• DiSEqC 2.0, 13/18V and 0/22kHz switching for precise satellite selection.
• Built-in LNB powering: 18V DC, max 500mA.
• Compact metal housing.

Technical details

• Satellite inputs: 8 (for 2 satellite positions or 1 Quattro LNB)
• Terrestrial input: 1
• Subscriber outputs: 16
• Satellite frequency range: 950-2150 MHz
• Terrestrial frequency range: 47-862 MHz
• Terrestrial return path: 5-65 MHz (active)
• Satellite gain: 0 to -3 dB
• Terrestrial gain: -1 to -4 dB
• Max output level: SAT 100 dBµV / TER 90 dBµV
• Isolation: SAT-SAT >30 dB, SAT-TER >30 dB
• LNB power supply: 18V / 500mA max
• Control protocol: DiSEqC 2.0, 13/18V, 0/22kHz
• Power consumption: 15 W (max)
• Mains voltage: 230V AC, 50/60 Hz
• Operating temperature: -20 to +50 °C
• Housing material: Metal

Our verdict

The Telmor TT 9/16 FT Classic is a robust and reliable multiswitch for medium to large installations. Its built-in power supply and active terrestrial return path make it a practical choice for modern interactive TV services.
