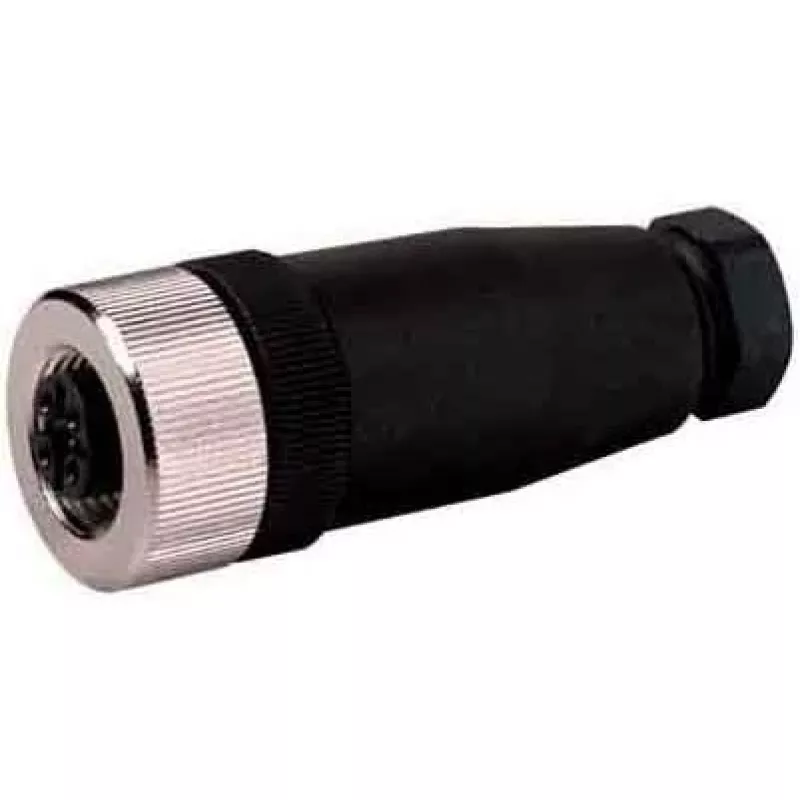

Murrelektronik M12 bus 5-polig A-gecodeerd schroefklemmen veldconfectoneerbare connector, IP67 7000-12961-0000000

Engineered for demanding industrial environments, this M12 female connector delivers reliable signal and power transmission with a robust IP67-rated design. Its 5-pole A-coded configuration and screw terminal connection ensure secure, field-installable connectivity for sensors and actuators.

Overview

The Murrelektronik 7000-12961-0000000 is a field-attachable M12 connector designed for self-assembly in the field. It features a straight, female, 5-pole A-coded interface with screw terminals, accommodating cable diameters from 4.0 to 6.0 mm. The connector is rated for 125 V AC/DC and 4 A, making it suitable for a wide range of industrial automation applications.

What stands out

• IP67 protection when mated and locked, ensuring resistance to dust and temporary immersion.
• Robust zinc die-cast nickel-plated housing for durability in harsh conditions.
• Gold-plated copper alloy contacts for excellent conductivity and corrosion resistance.
• Wide operating temperature range from -25 °C to +85 °C.
• Field-attachable design allows on-site assembly without special tools.

Technical details

• Connector type: M12, female, straight
• Number of poles: 5, A-coded
• Connection type: screw terminal
• Rated voltage: 125 V AC/DC
• Rated current: 4 A
• Degree of protection: IP67 (mated and locked)
• Housing material: zinc die-cast, nickel-plated
• Contact material: copper alloy, gold-plated
• Contact carrier material: PA (polyamide)
• Temperature range: -25 °C to +85 °C
• Cable diameter range: 4.0 - 6.0 mm
• Max. wire gauge: 0.75 mm² (AWG 18)
• Shielding: unshielded
• Locking type: screw thread M12 x 1
• Assembly type: field-attachable / self-assembly

Our verdict

A reliable and versatile M12 connector that excels in industrial settings, offering easy field installation, robust construction, and dependable performance across a wide temperature range.
