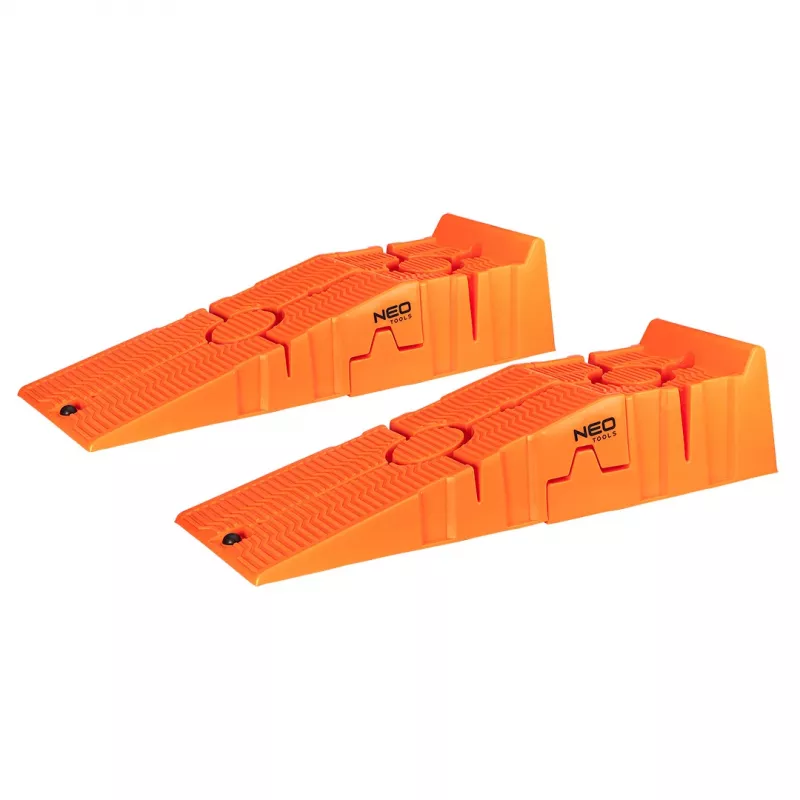

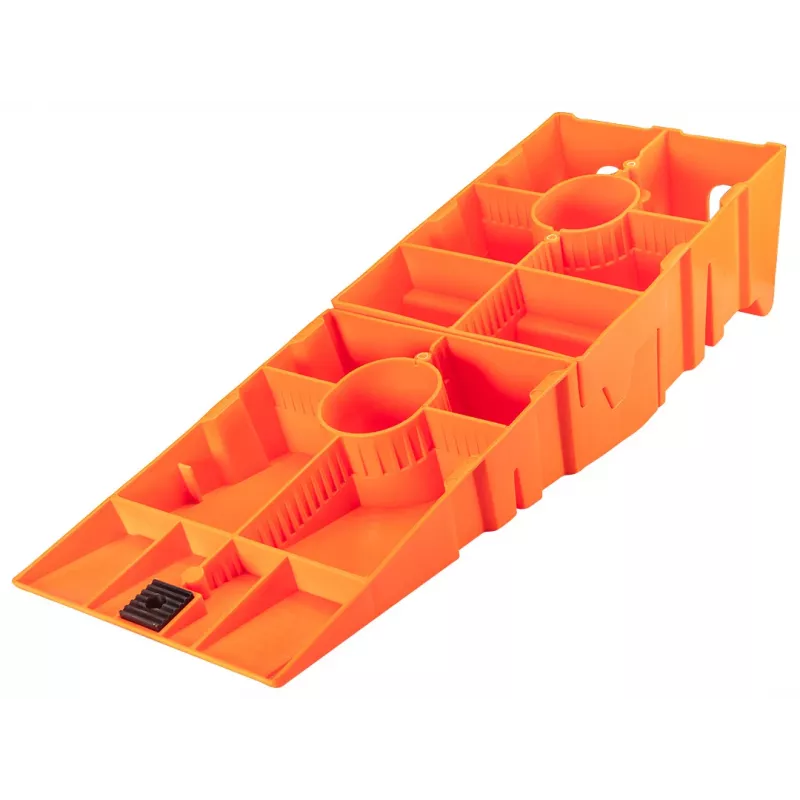

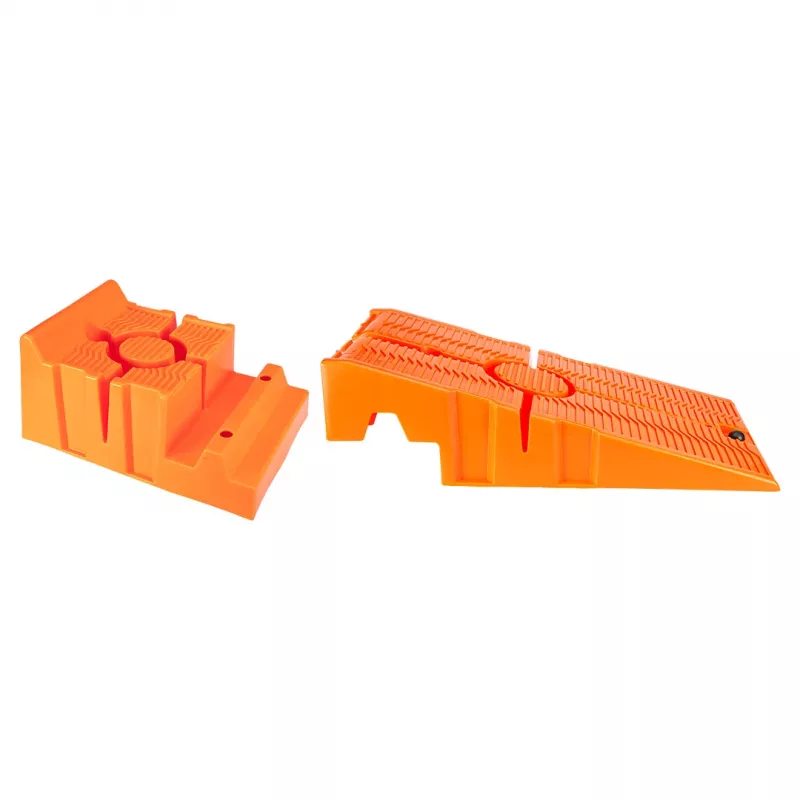

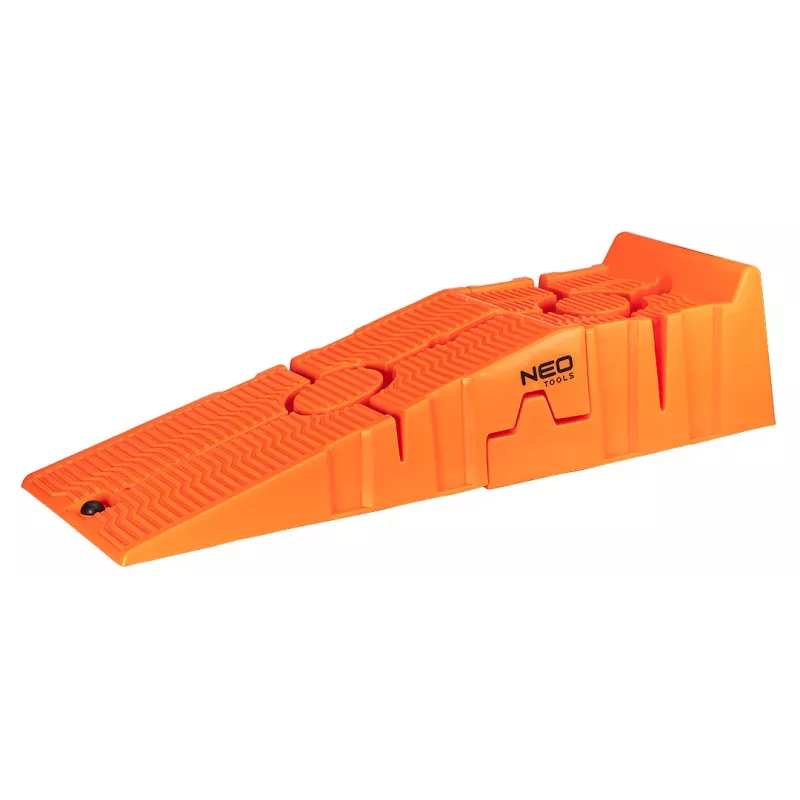

NEO TOOLS Oprijplaten 2 st., composietmateriaal, 3000 kg paar

Introducing the NEO TOOLS Car Ramp set, a robust and reliable solution for vehicle maintenance and inspection. Crafted from high-strength composite plastic (HDPE), these ramps offer exceptional durability and a maximum load capacity of 3000 kg per pair (1500 kg per ramp). Designed for passenger cars, light SUVs, and vans, they provide a safe and stable platform for under-vehicle work.

Advantages

These ramps feature an anti-slip surface and integrated wheel stop for enhanced safety during use. The UV-resistant and oil/chemical-resistant construction ensures long-lasting performance even in demanding environments. Their stackable design allows for compact storage when not in use, saving valuable workshop space.

Suitable for

• Passenger cars
• Light SUVs
• Vans

Key specifications

• Quantity: 2 (Pair)
• Material: High-Strength Composite Plastic (HDPE)
• Maximum Load Capacity (Pair): 3000 kg (3 Ton)
• Maximum Load Capacity (Single Ramp): 1500 kg (1.5 Ton)
• Maximum Lift Height: 170 mm
• Maximum Tire Width: 245 mm
• Ramp Length (Each): 900 mm
• Ramp Width (Each): 300 mm
• Ramp Height (Each): 210 mm
• Approach Angle: 17 degrees
• Weight (Single Ramp): 4.75 kg
• Minimum Ground Clearance Required: 70 mm
• Colour: Black

Recommendations

Always ensure the ramps are placed on a level, solid surface and that the vehicle's parking brake is engaged before driving onto the ramps. Verify that the vehicle's ground clearance exceeds the minimum requirement of 70 mm. Do not exceed the maximum load capacity.
