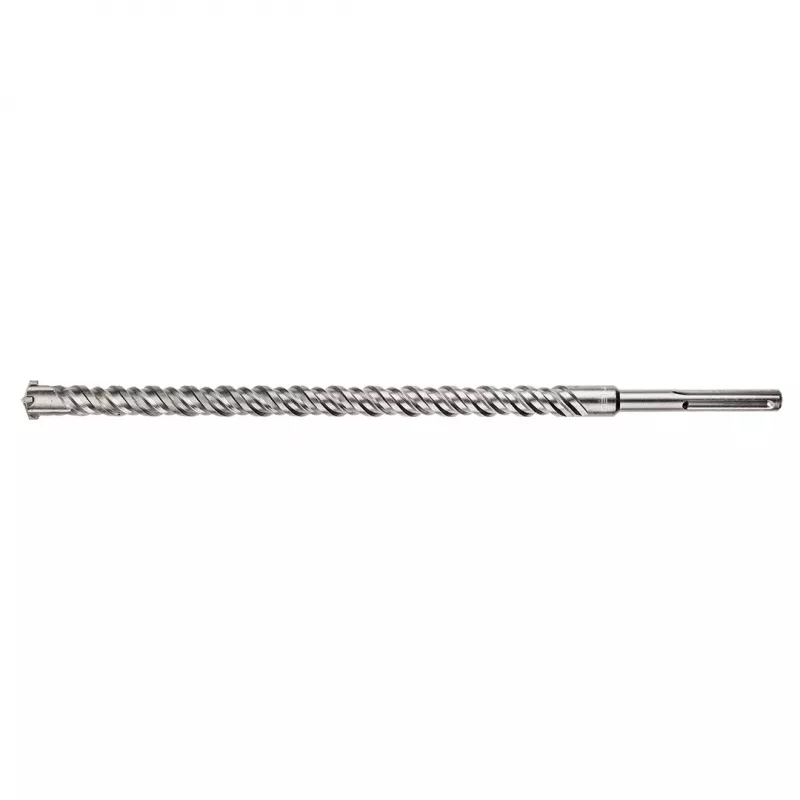

NEO TOOLS SDS Max betonboor 32 x 600 mm S4 Quatro

Engineered with a 4-cutter tungsten carbide tip, this SDS Max drill bit delivers high-speed, high-precision drilling in concrete, reinforced concrete, and masonry. The self-centering tip ensures accurate starts without wandering, while the S4 optimized spiral flute rapidly clears dust for continuous, efficient drilling.

Overview

The NEO TOOLS 57-540 is a professional-grade SDS Max concrete drill bit with a diameter of 32 mm and a total length of 600 mm. Its working length of 500 mm allows deep drilling in a single pass. The bit features a robust SDS Max shank for secure, tool-free insertion into compatible rotary hammers, ensuring maximum power transfer and reduced vibration.

What stands out

• 4-cutter (quatro) tungsten carbide tip for superior cutting speed and longevity
• Self-centering tip design for accurate hole placement without walking
• S4 optimized spiral flute geometry for efficient dust removal and faster drilling
• High-grade alloy steel body with heat treatment for exceptional durability
• Compatible with all SDS Max rotary hammers
• Ideal for concrete, reinforced concrete, masonry, natural stone, and brick

Technical details

• Drill bit type: Hammer drill bit
• Shank type: SDS Max
• Diameter: 32 mm
• Total length: 600 mm
• Working length: 500 mm
• Tip material: Tungsten carbide
• Body material: High-grade alloy steel
• Flute design: S4 optimized spiral
• Application: Hammer drilling
• Number of cutters: 4
• Heat treatment: Yes
• Centering tip: Yes

Our verdict

For demanding concrete drilling tasks, the NEO TOOLS 57-540 combines a powerful 4-cutter tip with an efficient flute design to deliver fast, clean holes and long service life. Its SDS Max compatibility makes it a reliable choice for professional contractors and serious DIYers.
