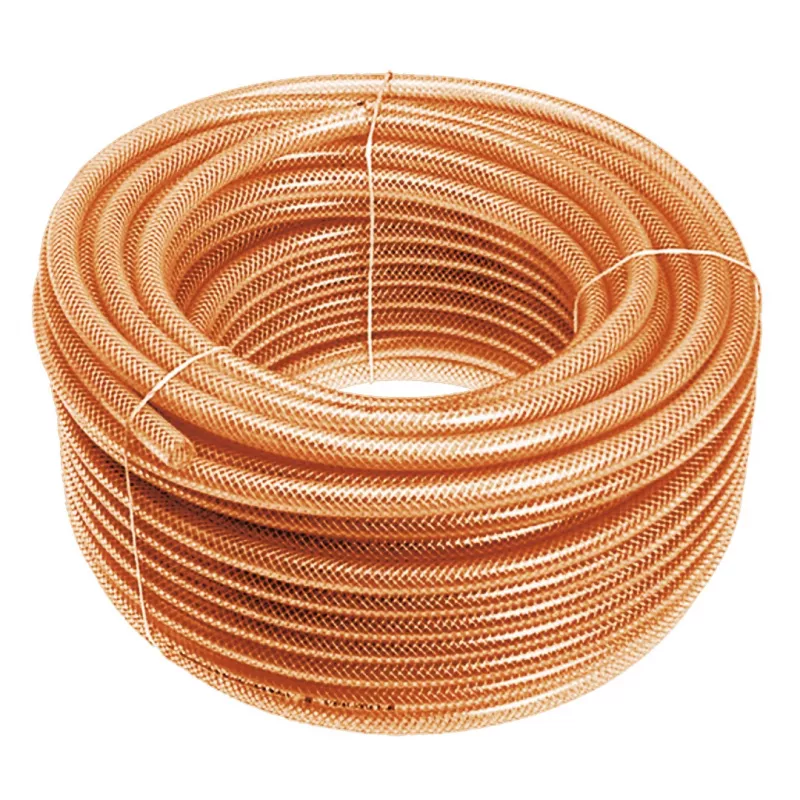

NEO TOOLS versterkte drukslang 10 x 15 mm, 50 m | PVC met polyestervlechtwerk, 15 bar

With a burst pressure rating of 45 bar (652 PSI), this NEO TOOLS reinforced pressure hose delivers exceptional safety margins for demanding compressed air and water applications. The 50-meter length provides extensive reach, while the 10 mm inner diameter and 15 mm outer diameter ensure a balanced flow rate and robust construction.

Overview

Engineered for reliability, this hose features a high-strength polyester textile braid sandwiched between two layers of PVC. This construction yields a flexible yet tough hose that resists kinking, abrasion, and weathering. It is suitable for a wide range of media including compressed air, water, and light chemicals, making it a versatile addition to any workshop or industrial setting.

What stands out

• High working pressure of 15 bar (217 PSI) with a 3:1 safety factor (burst pressure 45 bar).
• Reinforced with a polyester textile braid for superior strength and dimensional stability.
• Excellent flexibility with a minimum bend radius of just 50 mm, allowing easy routing in tight spaces.
• Resistant to abrasion, UV radiation, atmospheric agents, and many chemicals, ensuring long service life.
• Transparent PVC construction allows visual monitoring of the media flow.
• Wide temperature range from -10°C to +60°C for use in various environments.

Technical details

• Inner diameter: 10 mm
• Outer diameter: 15 mm
• Length: 50 m
• Material (inner tube): PVC
• Material (outer layer): PVC
• Reinforcement: High-strength polyester textile braid
• Working pressure: 15 bar (217 PSI)
• Burst pressure: 45 bar (652 PSI)
• Temperature range: -10°C to +60°C
• Weight per meter: 0.18 kg/m
• Minimum bend radius: 50 mm

Our verdict

A dependable, heavy-duty hose that combines high pressure tolerance with flexibility and chemical resistance, ideal for professional workshops and demanding industrial tasks.
