Neomounts FPMA-D700DD4 monitorstandaard 19-30 inch

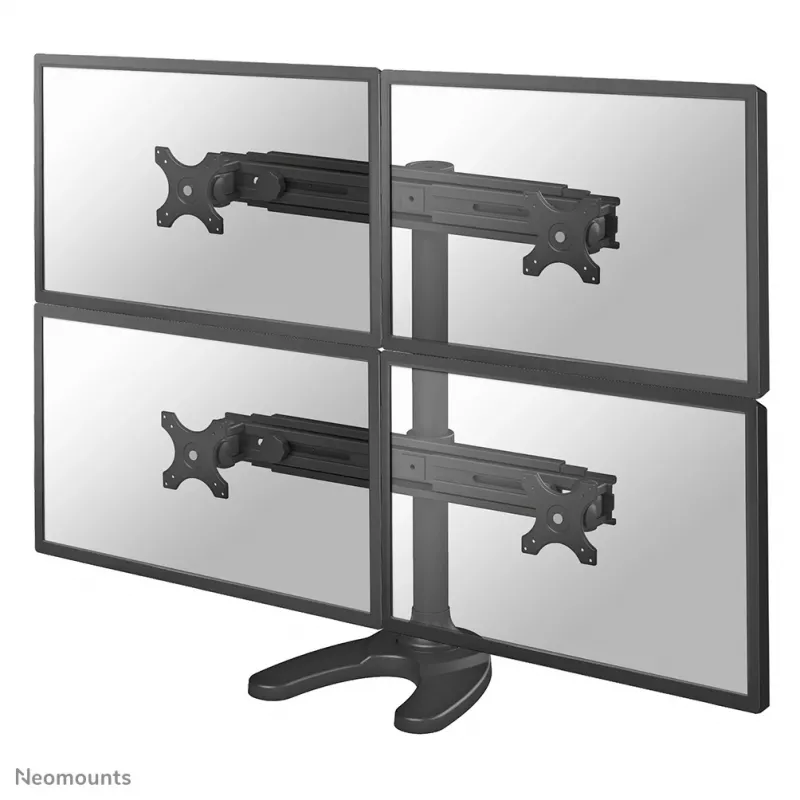

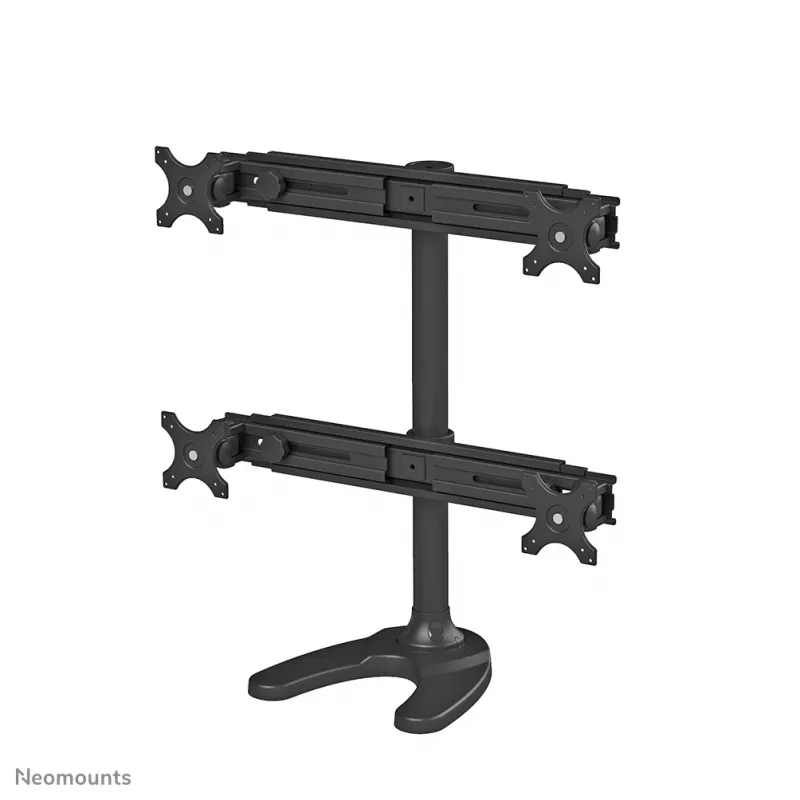

The Neomounts desk mount FPMA-D700DD4 is a desk-based mounting solution for up to four flat screens with a maximum screen size of 30". It offers both freestanding desk-stand and grommet (through-desk) installation options and is designed to save space on worktops while enabling flexible screen positioning.

Advantages

The mount provides wide adjustability with tilt up to 180°, 360° rotation and 180° swivel, and manual height adjustment from 24 to 70 cm. It supports VESA 75x75 and 100x100 mounting patterns and accommodates screens up to 8 kg each. Integrated cable management routes and conceals cables for a tidy workspace. All installation materials are included.

Suitable for

• Offices with multiple monitor workstations
• Reception desks and counters
• Trading rooms, control stations or any multi-screen desktop setup

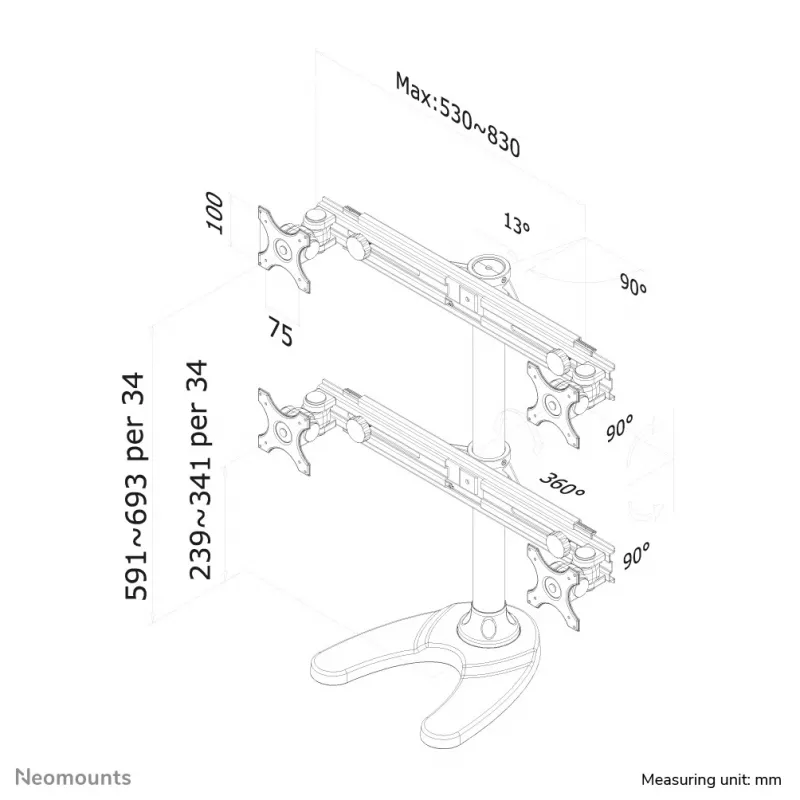

Key specifications

• Model: Neomounts FPMA-D700DD4
• Supported screens: up to 30" (76 cm)
• Number of displays: 4
• Maximum weight per screen: 8 kg
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Height adjustment: 24–70 cm
• Tilt/swivel/rotate: tilt 0–180°, swivel 180°, rotate 360°
• Depth from desk: 15 cm
• Product colour: Black

How to use

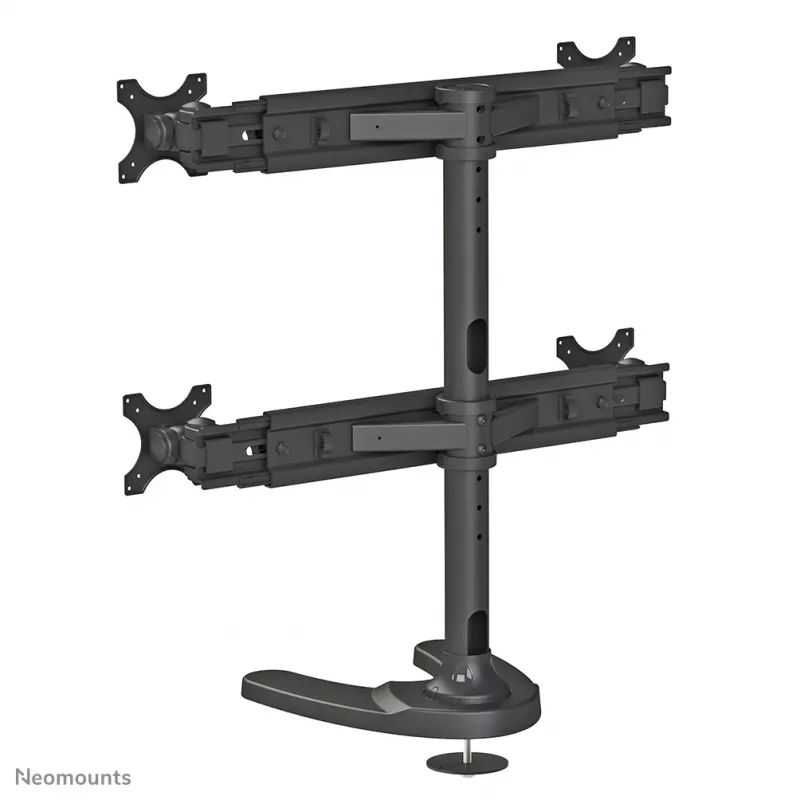

Mount the FPMA-D700DD4 using the included desk base or by fixing the grommet clamp through the desk surface. Attach each monitor to the VESA plate (75x75 or 100x100) and secure according to the supplied instructions; VESA adapter plates are available if needed for other hole patterns. Adjust the height manually between 24 and 70 cm and set tilt, swivel or rotation to the desired viewing angles. Route monitor cables through the integrated cable management channel to keep the installation neat.

Recommendations

For ergonomic setup, position screens so the top of each display is at or slightly below eye level and maintain an arm’s length viewing distance. Do not exceed the 8 kg per-screen weight limit and verify compatibility with your monitors' VESA pattern before installation.
