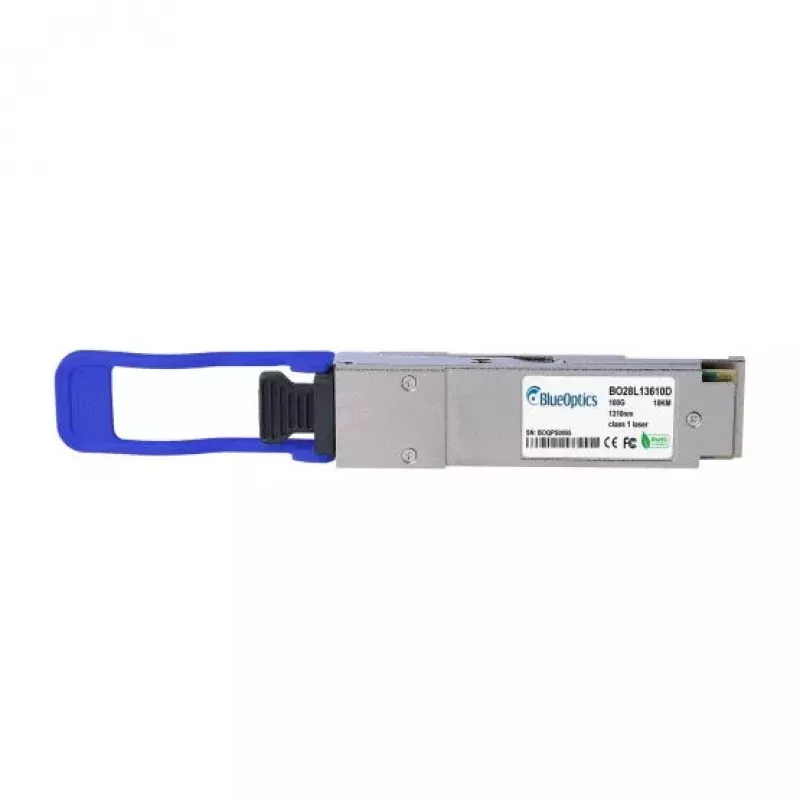

Netwerk-transceiver-module BlueOptics AFCT-89LDDZ-BC-BO 100000 Mbit/s QSFP28

The BlueOptics AFCT-89LDDZ-BC-BO is a QSFP28 fiber optic transceiver module designed for 100000 Mbit/s (100 Gbit/s) links. It features a metallic housing, QSFP28 interface and an input voltage of 3.3 V. The module supports LC-Duplex single-mode fiber connections and complies with CE, FCC and RoHS standards. With a high MTBF rating of 1,000,000 hours, it is intended for demanding network infrastructure where high-speed optical transmission and long-term reliability are required.

Advantages

This QSFP28 transceiver provides a compact, MSA-compliant form factor for 100 Gbit/s applications and a metallic enclosure that supports system integration and heat dissipation. The module is factory-tested for compatibility with major hardware platforms that accept QSFP28 optics and incorporates digital diagnostics for monitoring operating parameters where supported. Certification to CE, FCC and RoHS confirms adherence to common regulatory and environmental requirements.

Suitable for

• High-speed Ethernet and Fibre Channel links up to 100 Gbit/s
• Single-mode fiber long-reach connections (LC Duplex)
• Data center switches, routers and storage systems with QSFP28 slots
• Network equipment requiring compliance with CE, FCC and RoHS

Key specifications

• Interface type: QSFP28
• Maximum data transfer rate: 100000 Mbit/s (100 Gbit/s)
• Connector: LC Duplex (single-mode fiber)
• Housing: Metallic
• Operating voltage: 3.3 V
• Product colour: Metallic
• Weight: 0.04 kg
• Mean Time Between Failures (MTBF): 1,000,000 hours
• Standards: CE, FCC, RoHS compliant

How to use

Insert the BlueOptics AFCT-89LDDZ-BC-BO QSFP28 transceiver into a compatible QSFP28 slot on a switch, router or storage device while the host equipment is powered down or following the vendor's hot-plug guidance. Connect LC-Duplex single-mode fiber patch cords to the transmitter and receiver ports, observing correct polarity. If the host supports digital diagnostics (DDM/DOM), enable and monitor the module parameters through the management interface to view supply voltage, laser current, optical power and temperature readings where available. Follow the host vendor's firmware and compatibility guidelines to ensure full functionality.

Recommendations

Use high-quality single-mode LC-Duplex patch cords and, when possible, route fibers via patch panels to maintain optimal signal quality. Verify that the target hardware supports QSFP28 100G modules and DDM/DOM features if remote diagnostics are required. Observe ESD precautions during handling and keep the transceiver caps in place when not connected.
